Hey, so you know how advanced GNSS (Global Navigation Satellite System) tech has really changed the game when it comes to land surveying? One of the coolest tools at the forefront of this shift is the Real-Time Kinematic (RTK) survey method. It’s pretty amazing—getting really precise results, often within just a centimeter! Because of that accuracy, more and more industries like construction, farming, and environmental monitoring are jumping on board with Rtk Surveys. I’ve read reports that suggest the demand forhigh-precision mapping is only going to grow, especially since everyone’s really craving reliable data for their projects. Here at Chengdu Zhicun SpacE Surveying Instrument Co., Ltd., we’re all about meeting that demand, offering top-notch surveying gear and solid technical support. Our team’s expertise in RTK techniques helps professionals get the accuracy they need, making their work more efficient and helping them make smarter decisions in this fast-changing market.
Understanding the Basics of RTK Surveying for Precision Mapping
Hey, have you heard about RTK surveying? It's this really cool, state-of-the-art method that significantly boosts how accurately you can map things out. Basically, it uses a network of satellites—think of it as a super precise GPS—to get location details that can be off by less than a centimeter! That kind of accuracy is a total game-changer, especially in fields like construction, farming, or land surveying. I came across a report from the International Society for Photogrammetry and Remote Sensing, and they mention how people love RTK because it provides real-time correction signals. This really speeds things up, making the whole mapping process way more efficient and cutting down on the time you spend out in the field.
When you’re doing an RTK survey, there are a few key pieces of gear you need to know about—the main ones being the base station and the rogue. The base station basically locks onto the satellites and gathers the data, while your rover (the device you’re holding or attaching to a vehicle) receives correction signals on the spot. That combo lets you find exact locations with crazy precision. A quick tip from experience—always scope out your site first. Trees, buildings, or any big obstructions can mess with your signals, so choosing a good spot for your base station is super important.
And a couple of handy tips: before you start, check that all your satellites are visible—there's software out there that can help analyze satellite positions to give you a heads-up. Also, don’t forget to calibrate your equipment regularly and keep your firmware up to date. Those little things make a big difference in keeping your RTK system running smoothly.
Essential Equipment and Tools for High-Accuracy RTK Surveys
Doing an RTK survey isn’t just about having fancy equipment — it really needs precision tools to hit those high accuracy marks, often beyond 1 cm. The main star here is the RTK (Real-Time Kinematic) GPS system. It blends satellite navigation tech with ground-based reference stations, giving you real-time corrections on the spot. I read in a NOAA report that RTK GPS can get you vertical accuracy between 1 and 2 centimeters, and horizontally, it’s pretty much spot-on within 1 cm. That’s why it’s a go-to for precise mapping projects.
But it’s not just the GPS itself — you also need a few other crucial bits, like data loggers, base stations, and top-notch antennas. Data loggers grab the RTK signals and store all the positional info so you can analyze it later. Base stations, which you usually set up at known spots, send those real-time correction signals to boost accuracy even more. And good antennas? They really help fight off multipath effects and make sure your signals stay strong. For example, a study published in the International Journal of Applied Earth Observation and Geoinformation mentioned that using high-gain antennas can improve RTK positioning accuracy by up to 30%. So, putting together the right mix of gear is super important — especially when you're dealing with serious projects like land surveying, construction, or environmental monitoring.
Step-by-Step Procedures for Conducting an RTK Survey
Doing an RTK (Real-Time Kinematic) survey isn’t just about pressing a button — it takes careful planning and attention to detail if you want those incredible accuracy levels, like better than 1 cm. First off, you gotta pick the right places for your base stations and rover units. According to a report by the American Society for Photogrammetry and Remote Sensing, choosing good spots really makes a difference — it can bump up your positional accuracy a lot by cutting down on systematic errors during data collection. Usually, you want spots with a clear view of the sky and no signal interference, so your GPS signals stay strong and steady.
Once you’ve got your sites picked out, the next step is configuring your RTK system settings just right. This means selecting the best satellite systems, setting your data collection intervals, and making sure your base and rover units are communicating smoothly. Recent industry insights show that using dual-frequency receivers really boosts the reliability of GNSS signals, especially in tricky environments. Taking a bit of time to calibrate your gear properly before starting your survey is super important — it helps ensure you gather high-quality data, which is crucial for accurate mapping in fields like construction or agriculture. Following these steps carefully not only makes your survey more reliable but also really helps achieve that precision you’re aiming for overall.
How to Conduct an Rtk Survey for Precision Mapping with Accuracy Rates Exceeding 1cm - Step-by-Step Procedures for Conducting an RTK Survey
| Step | Procedure | Equipment Needed | Expected Accuracy (cm) |
| 1 | Set Up Base Station | RTK Base Station, Tripod | |
| 2 | Connect Rover to Base | RTK Rover, GPS Receiver | |
| 3 | Prepare Survey Points | Survey Software | |
| 4 | Conduct the Survey | RTK Rover, Data Collector | |
| 5 | Data Post-Processing | Computer, Survey Software | |
Data Collection Techniques to Maximize Accuracy Rates
Getting an accuracy of better than 1cm in an RTK survey for precise mapping isn’t just about the equipment—it's about good technique and a bit of know-how. First off, setting up a reliable RTK base station is key. Make sure it’s in a spot with a clear view of the sky—no trees or tall buildings blocking the signal—so the satellite signals are strong and steady. That way, the correction signals the rover uses will be better, and your position readings will be way more accurate.
On top of that, investing in high-quality GNSS receivers really pays off. Using models that work on multiple frequencies helps dodge errors from things like atmospheric interference and signals bouncing around—what folks call multipath effects. And don’t forget to calibrate your equipment before you start. Doing a static observation of the base station for a while before moving around gives you a solid reference point, reducing systematic errors.
Plus, keeping your data collection methodical really helps. Stick to consistent paths when traversing the site, and make sure your coverage overlaps—think of it as making sure every spot gets enough
Processing and Analyzing RTK Survey Data for Optimal Results
When you're out doing an RTK survey, getting your data processed and analyzed properly is really key to getting the best results. First things first, you wanna make sure you've collected your data correctly. That means using good quality gear and sticking to standard procedures — it sounds simple, but it helps keep errors in check. Once you've got your raw data, you'll need to run it through the right software—things like GIS programs or specialized RTK processing tools that can handle the data properly.
**A quick tip:** Before you kick off the survey, double-check your GNSS antenna height. This might seem like just a small detail, but if it’s off, it can throw off your entire map, leading to inaccuracies. So, it pays to get that right from the start.
After processing the data, you'll want to dig into it—look for any weird inconsistencies and compare your results with known benchmarks to make sure everything adds up. This step is super important if you want to keep your accuracy above 1 centimeter. Visualizing the data on maps can be a lifesaver here—spotting anomalies or strange patterns becomes much easier. And if you're into it, doing some advanced statistical analysis can boost the trustworthiness of your findings.
**Another tip:** Consider using cloud-based platforms for collaboration. They make it easier to share data and tools with your team, especially when working remotely. And don’t forget, calibrating your equipment regularly is a simple step that can really keep your surveys sharp and precise over time.
Common Challenges and Solutions in RTK Surveying for Mapping
RTK, or Real-Time Kinematic surveying, has really become a go-to method for super precise mapping these days. When done right, it can give you accuracy better than 1 centimeter — pretty impressive, right? But, honestly, running an RTK survey isn’t just about having the fancy gear. There are quite a few hurdles that surveyors often encounter. For instance, signals can get a bit wonky when there are buildings or natural features blocking the satellite lines. That can throw off the accuracy quite a bit. To tackle this, folks usually set up base stations in smarter spots or use multiple frequency channels — simple hacks, but they do the trick to keep the data reliable.
Another thing to watch out for is keeping the equipment calibrated properly all through the survey. Sometimes, instruments can drift over time, which might mess with your measurements if you're not careful. Regular checks and using advanced tools can help keep everything on point. If you're looking for reliable gear or expert advice, Chengdu Zhicun Space Surveying Instrument Co., Ltd. has got your back. They offer innovative solutions and support to help surveyors handle these common issues like pros. So, with the right tech and some professional guidance, you can carry out RTK surveys that are both super accurate and dependable — making sure your mapping projects hit those high standards without a hitch.
RTK Survey Accuracy Comparison

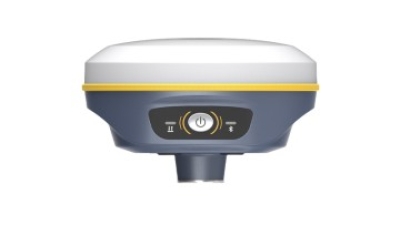

Comprehensive Overview of SOUTH Insight V2/S1 GPS RTK: Unlocking Precision in Land Surveying Applications
The SOUTH Insight V2/S1 GPS RTK represents a groundbreaking advancement in land surveying applications, offering a comprehensive suite of features that unlock precision in the field. This device supports an extensive array of satellite systems, including GPS, GLONASS, BeiDou, and Galileo, ensuring accurate positioning in diverse environments. With advanced multi-system support, users can expect reliable performance regardless of geographical challenges. The impressive 1598 channels available enhance signal acquisition and tracking capabilities, significantly reducing convergence times and increasing efficiency during surveys.
Designed with user convenience in mind, the compact and lightweight construction of the SOUTH Insight V2/S1 GPS RTK makes it easily portable. Measuring just 131mm x 80mm and weighing only 800g, it's the ideal tool for professionals on the go. Its long-lasting battery life allows for extended periods of operation, enabling surveyors to complete projects without the need for frequent recharging. Coupled with a comprehensive 1-year warranty, this product offers both confidence and assurance to users, making it a top choice for those seeking precision and reliability in land surveying. At a competitive price of $100, the SOUTH Insight V2/S1 GPS RTK is an investment in quality and performance for any surveying professional.
FAQS
: RTK (Real-Time Kinematic) surveying is an advanced technique that utilizes satellite networks to achieve mapping accuracy exceeding 1 cm, making it essential for industries like construction, agriculture, and land surveying.
The RTK system consists of a base station that collects satellite data and a rover that receives real-time correction signals, enabling surveyors to determine precise locations with high accuracy.
The primary components for RTK surveying include an RTK GPS system, data loggers, base stations, and high-quality antennas, all of which contribute to achieving high accuracy in positioning.
The base station is crucial as it provides real-time correction signals to the rover. It should be placed in a location with minimal obstructions to enhance satellite visibility and improve the quality of correction signals.
Surveyors can maximize accuracy by ensuring the base station has a clear line of sight, using advanced GNSS receivers, calibrating equipment before the survey, and following systematic data collection techniques.
Satellite visibility is critical because obstructions like buildings or trees can interfere with signal reception, affecting the accuracy of the correction signals and, consequently, the overall precision of the survey.
Regular calibration of equipment is essential to eliminate systematic errors, ensuring that the RTK system maintains its integrity and provides accurate positioning data.
Advanced GNSS receivers equipped with multiple frequencies can reduce inaccuracies caused by atmospheric delays and multipath effects, thus enhancing the overall precision of the surveying process.
Surveyors should employ consistent traversing paths, ensure overlapping coverage areas, and conduct static observations of the base station prior to dynamic measurements for effective data collection.
High-quality antennas can mitigate multipath effects and improve signal quality, potentially enhancing RTK positioning accuracy by up to 30% as highlighted in various studies.
Conclusion
Looking to master RTK surveying for ultra-precise mapping? This article’s got you covered with a friendly, step-by-step guide to help you hit accuracy levels better than 1 centimeter. First off, it breaks down the basics of RTK surveying—sort of like the foundation—you know, the core principles you need to understand. Then, it goes into detail about the kit and tools that’ll make sure your results are spot-on. I've tried to keep it straightforward, with simple procedures and handy tips for collecting data in a way that really boosts your accuracy.
We also talk about what to do after you gather your data—how to process and analyze it so everything lines up perfectly. And, because anyone who's done this kind of work knows, there are always little hiccups along the way. The article doesn’t ignore that, offering practical solutions to common problems you might run into during your surveys.
Oh, and by the way, Chengdu Zhicun Space Surveying Instrument Co., Ltd. is a leader in measurement gear, ready to back you up with the best equipment and support. Whether you’re just starting out or looking to refine your skills, they’re there to help you succeed.
