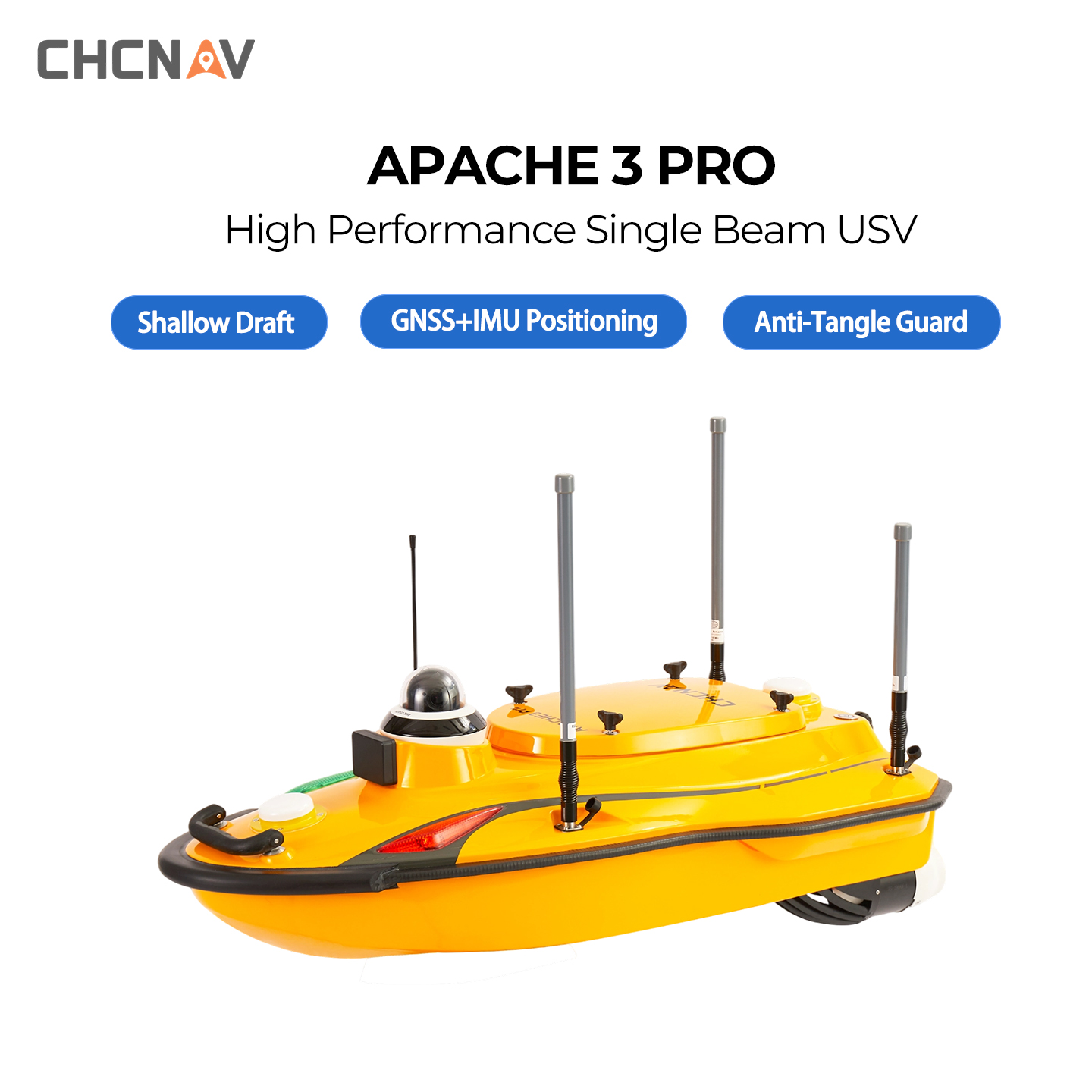

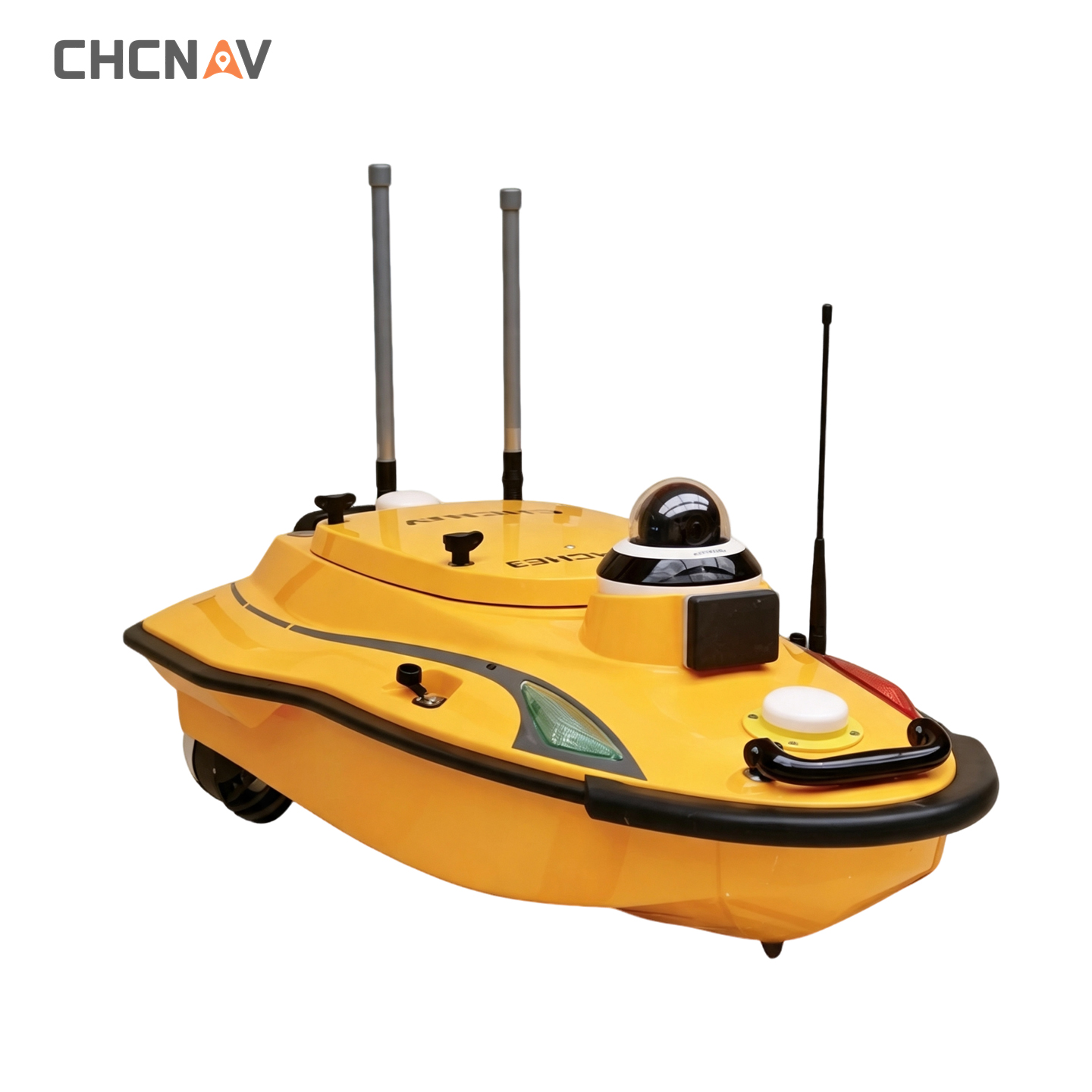

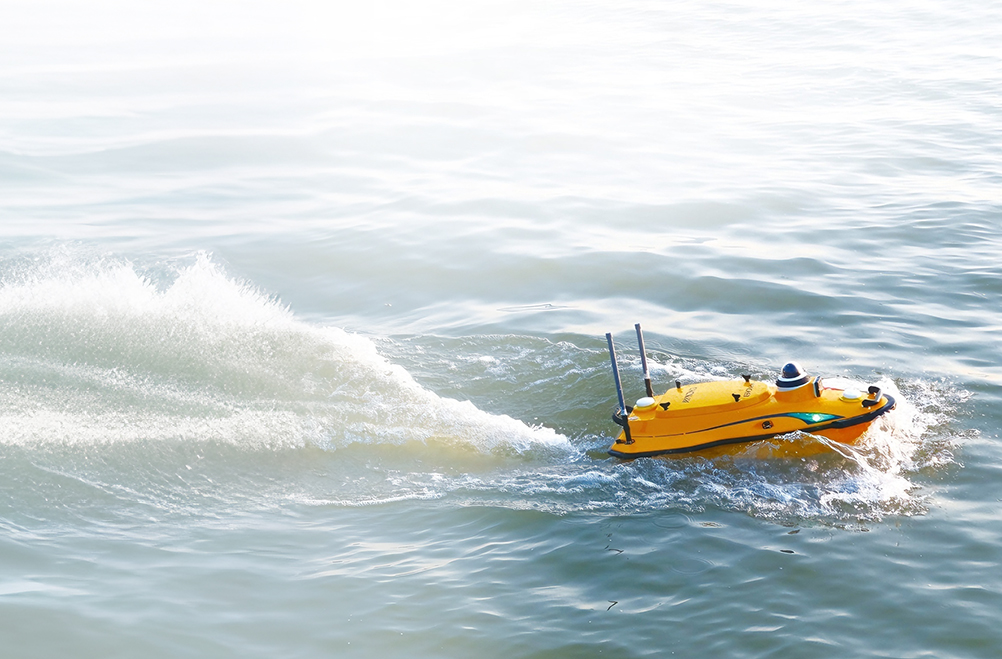

CHCNAV APACHE 3 PRO Shallow Water Hydro Survey USV
· 10cm Ultra-Shallow Draft Tri-Hull
· GNSS+INS Continuous Positioning
· Built-in D270 Echosounder
ABOUT US
Chengdu Enbao Co., Ltd. has over 20 years of experience in the surveying instrument industry and is a professional domestic enterprise in this field. Equipped with advanced production, processing and testing facilities, we focus on the research, development and manufacture of the latest surveying instruments, including RTK receivers, total stations, electronic the odolites, levels and supporting accessories. We keep upgrading and optimizing our products based on mature traditional technologies to achieve superior performance and reliable quality. We sincerely offer premium products and thoughtful services to clients woridwide.
Company collaboration
PRODUCT DESCRIPTION
-
High-Precision Navigation
Maintain consistent survey accuracy even in GNSS-denied environments. The integrated GNSS RTK and Inertial Navigation System ensures precise positioning under bridges, along urban waterways, and in other signal-obstructed areas.
-
Advanced Depth Survey
Deliver reliable and accurate bathymetric data using the CHCNAV D270 single-beam echosounder. Its integrated water temperature sensor corrects sound velocity in real time for enhanced depth measurement performance.
-
Smart Power Control
Stay mission-ready with an intelligent power system that supports hot-swappable batteries. In case of interruption, the Apache 3 Pro resumes its route from the exact point of disruption, ensuring operational continuity.
-
Adaptable Performance
Engineered with high-sensitivity, anti-interference transducers and adaptive bathymetric algorithms, the Apache 3 Pro adjusts automatically to variable water terrains, delivering high-resolution data in complex survey scenarios.

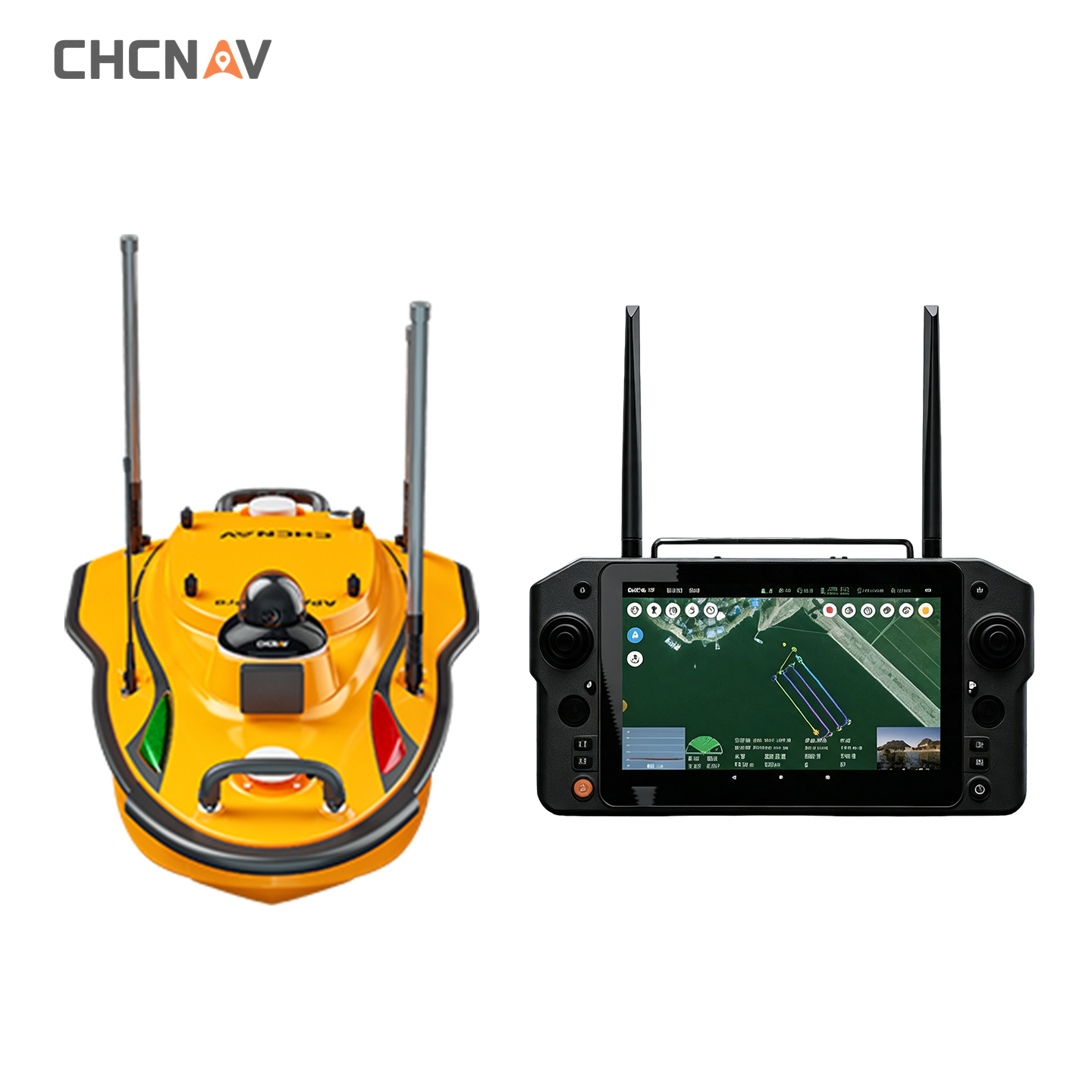

EasySailAll-in-One Android App
and acquisition in one unit, no PC needed, saving labor and boosting efficiency in field work.
• Remote controller supports
4G communication and data
radio, with real-time video
and data transmission.
Product Details
Anti-Entanglement Design

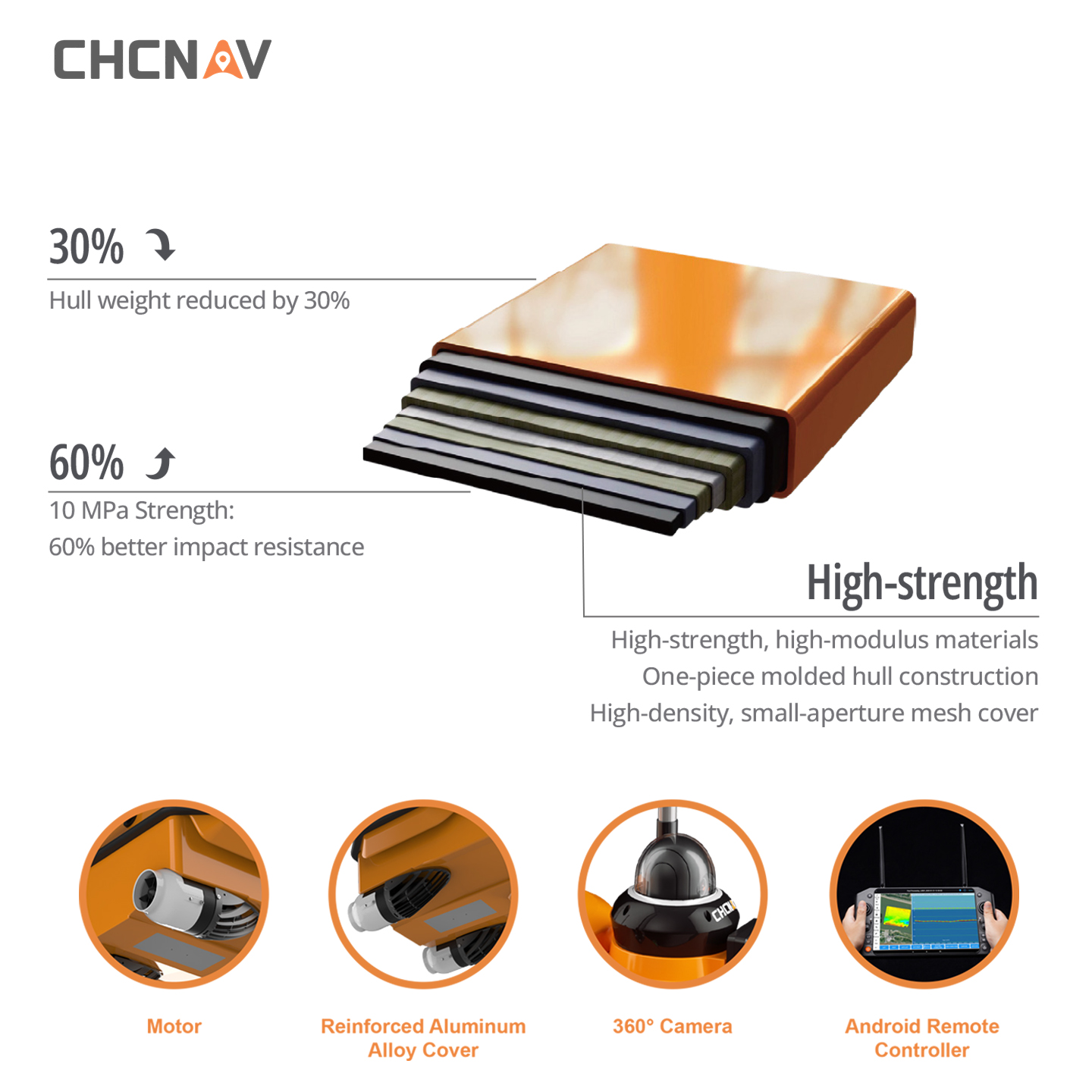

Titanium alloy mesh guard and hybrid water pressure conversion greatly reduce weed entanglement. Real-timeself-diagnosis alerts operators to obstructions, protecting the motor.

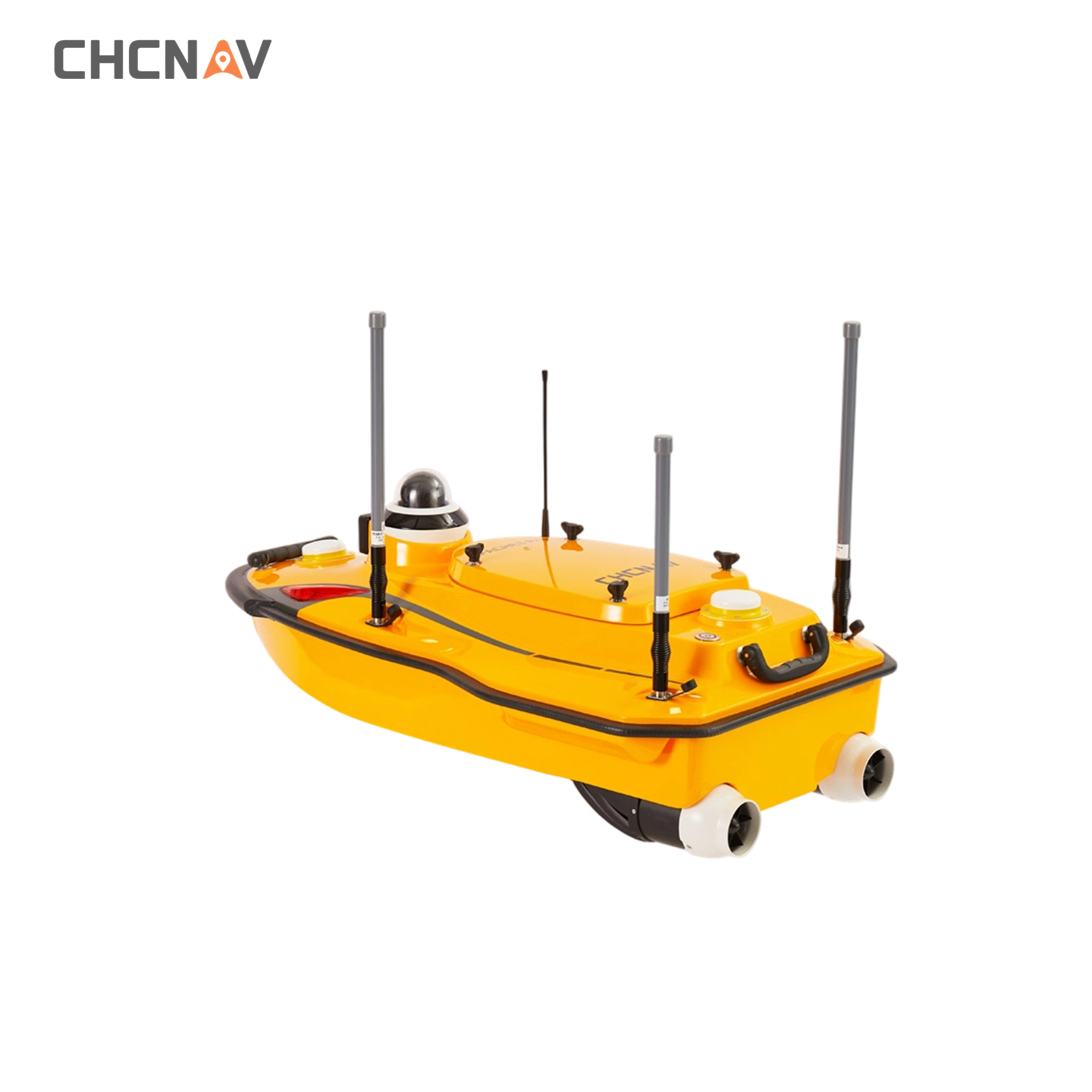

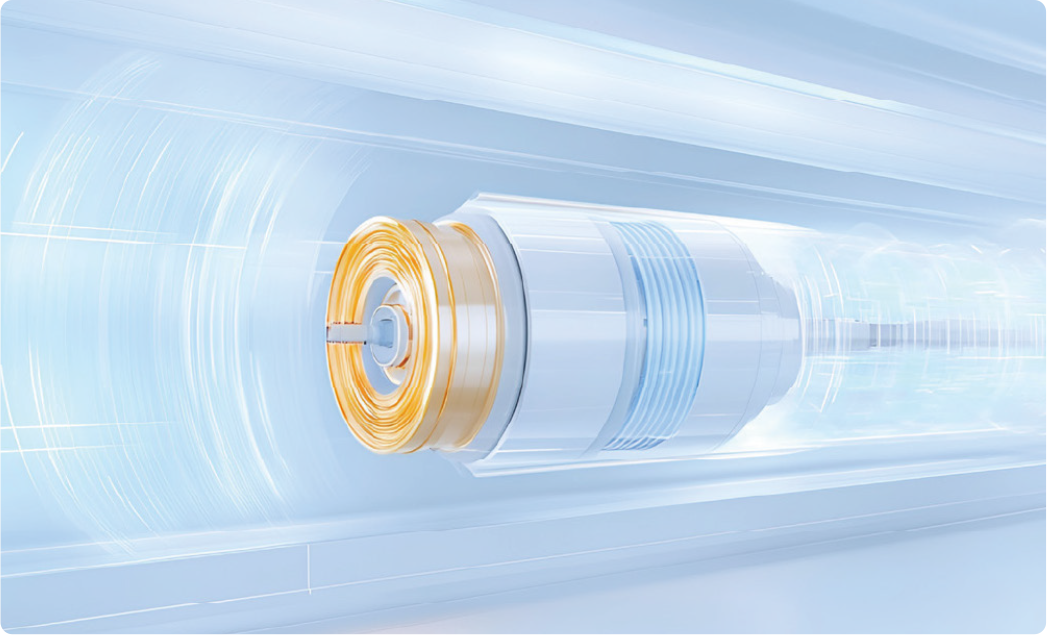

Semi-Embedded High-Speed Motor
Max motor speed up to 7200 RPM, supporting a top vessel speed of 7 m/s. Single battery set provides up to 10 hours of endurance at 1.5 m/s.
CHCNAV APACHE 3 Pro USV Specifications
Light‑Weight Triple‑Hull Unmanned Surface Vehicle for Hydrographic Survey
PHYSICAL
| Hull Dimension (L × W × H) | 1050 mm × 550 mm × 390 mm |
| Material | High strength, high modulus carbon fiber |
| Process | HPT one‑piece molding |
| Weight (w/o instrument and battery) | 6 kg |
| Maximum Payload | 35 kg |
| Anti‑Wave & Wind | 3rd wind level and 2nd wave level |
| Hull Design | Triple‑hull vessel |
| GNSS | Internal GNSS dual antenna |
| Waterproof | IP67 |
| Static Draft | 10 cm |
| Indicator Light | Two‑color (positioning and differential signal) |
| Camera | 360° omnidirectional video |
| Obstacle Avoidance Distance & Range | 0.2‑40 m (H: 112°, V: 14°) |
PROPULSION
| Propeller Type | Brushless DC |
| Direction Control | Veering without steering engine |
| Rated Motor Power | 800 W |
| Maximum Motor Speed | 7200 ±5% RPM |
| Motor Installation | Pluggable |
| Li‑ion Battery Capacity | 32.4 V, 23.1 Ah |
| Battery Endurance | 10 h @1.5 m/s (1 battery set, expandable) |
| Power Supply | Single/dual balanced battery support |
| Battery Replacement | Hot swap supported |
| Charging Time | 3 h |
| Maximum Speed | 7 m/s |
REMOTE CONTROL
| Dimension (L × W × H) | 346 mm × 196.5 mm × 89.4 mm |
| Display Screen | 10‑inch |
| Resolution Ratio | 1920 × 1200 |
| Internal Storage | RAM: 4 GB, Storage: 64 GB |
| Battery Endurance | 5 h |
| Communication Frequency | 2.4 GHz |
| Peripheral Interface | USB, Nano SIM, TF card (up to 128 GB), Type‑C |
COMMUNICATIONS
| Data Communication | Standard 4G and Remote control |
| Remote Control Range | 1 km (Remote); Unlimited (4G) |
| SIM Card Slot | Nano SIM |
| Reserved Interface | 2 × RS232 serial ports |
| Navigation Mode | Manual or Auto‑Pilot |
| Data Storage | Local (multi‑channel) & Remote |
SOFTWARE — EasySail
| Main Functions | Route planning and autonomous navigation. Total mileage statistics, remaining mileage reminder, multi‑angle video and online map display. Hull parameter control, physical & virtual joysticks, system self‑check at power‑on. Data collection and post‑processing. Waveform overlay and attitude correction. Coordinate conversion, trajectory, water depth, waveform and hull parameter real‑time display. Online software/firmware updates. Export via USB/Type‑C. |
POSITIONING
| Satellite System | BDS B1I/B2I /B3I, GPS L1C/A/L2P(Y)/L2C/L5, Galileo E1/E5a/E5b, GLONASS L1/L2, QZSS L1/L2/L5 |
| Single Point Position (RMS) | Horizontal:1.5 m Vertical:2.5 m |
| DGNSS Positioning Accuracy | Horizontal:0.4 m +1 ppm Vertical:0.8 m +1 ppm |
| RTK Positioning Accuracy | Horizontal:±8 mm +1 ppm Vertical:±15 mm +1 ppm |
| Radio Protocols | Satel 3AS, CHC(1), TT450, Transparent |
| Heading Accuracy | 0.1 ° @1 m baseline |
| Inertial Navigation Stability | 6 °/h (accuracy attenuation 1 m after 20 s) |
| IMU Update Rate | 200 Hz |
D270 Single Beam Echo Sounder
| Data Type | CHCGD(1), NMEA SDDPT/SDDBT, original waveform |
| Sounding Range | 0.1 m to 200 m |
| Sounding Accuracy | ±0.01 m ±0.1% × D (D is the depth of water) |
| Resolution | 3 mm |
| Maximum Sampling Rate | 30 Hz |
| Frequency | 200 kHz |
| Beam Angle | 6.2° ±1° |
| Sound Velocity Adjustment Range | 1400‑1700 m/s |
| Integrated Water Temperature Sensor | -55℃~+100℃, real‑time correction of the sound speed |
(1) CHCGD & CHC protocol is CHCNAV format.
