CHCNAV APACHE 3 Unmanned Survey Vessel | Shallow Water Hydrographic USV
· Ultra-Shallow Draft Tri-Hull Design
· Triple Communication Auto Switch
· Full Autonomous Route Survey
ABOUT US
Chengdu Enbao Co., Ltd. has over 20 years of experience in the surveying instrument industry and is a professional domestic enterprise in this field. Equipped with advanced production, processing and testing facilities, we focus on the research, development and manufacture of the latest surveying instruments, including RTK receivers, total stations, electronic the odolites, levels and supporting accessories. We keep upgrading and optimizing our products based on mature traditional technologies to achieve superior performance and reliable quality. We sincerely offer premium products and thoughtful services to clients woridwide.
Company collaboration
PRODUCT DESCRIPTION
-

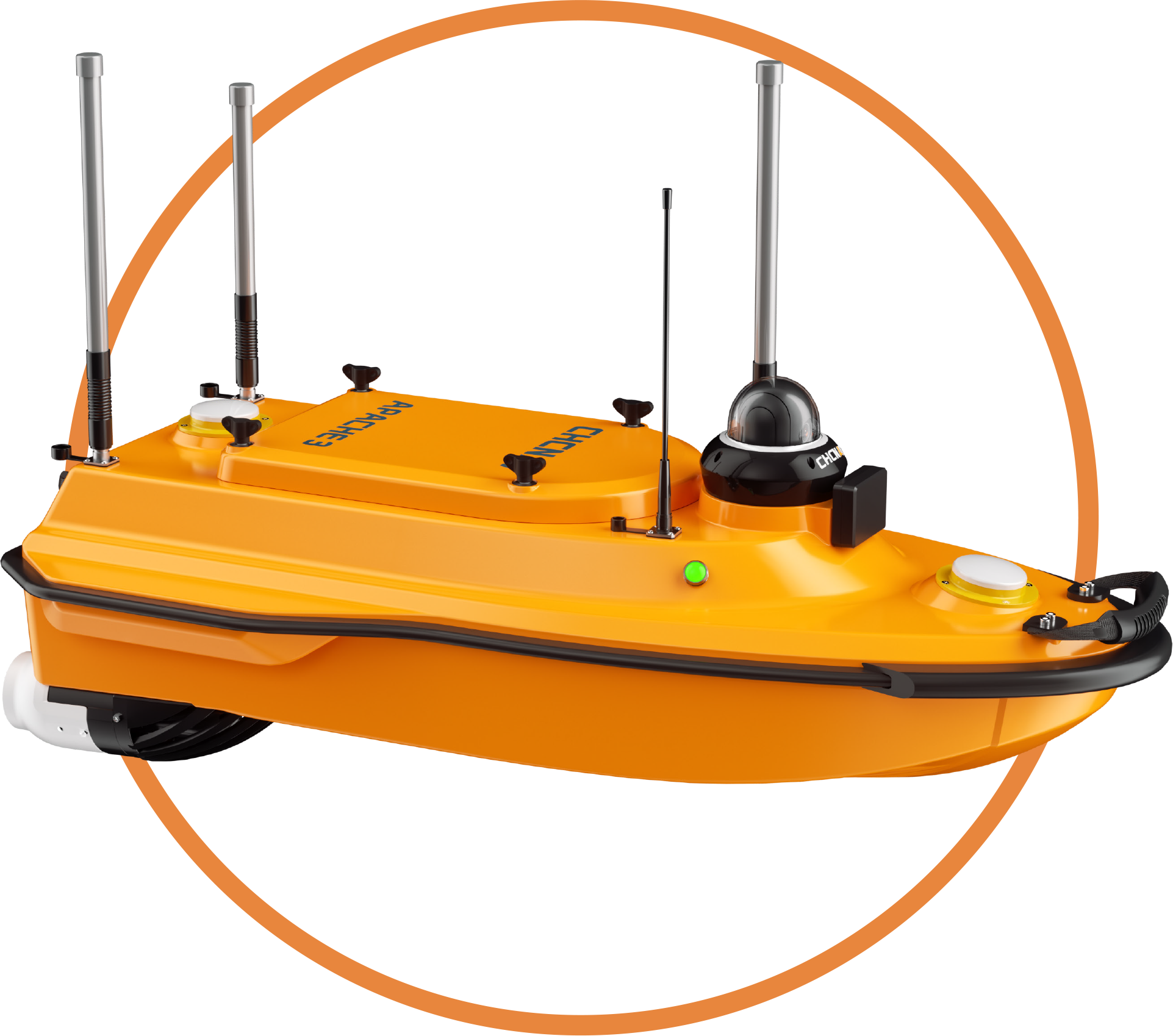

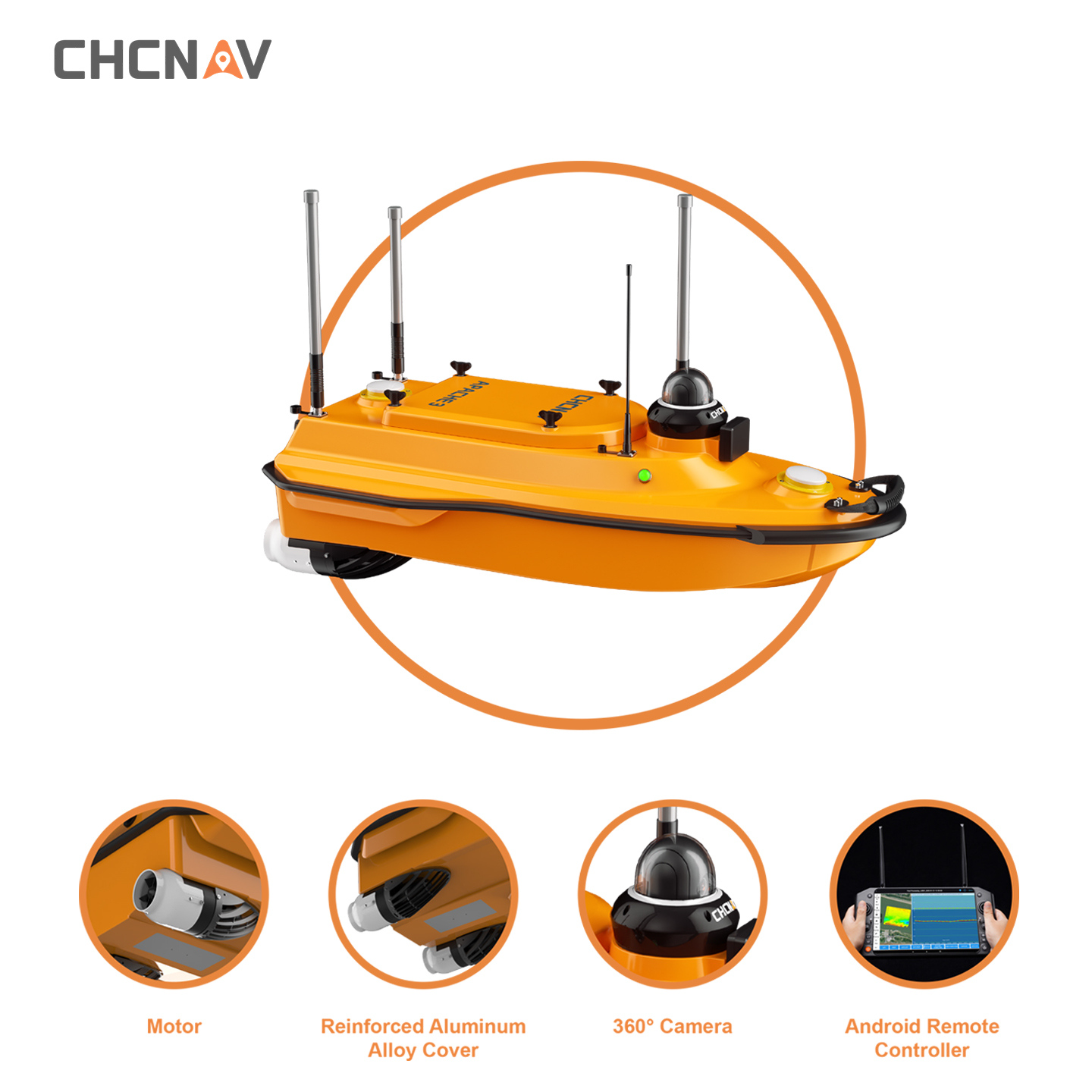

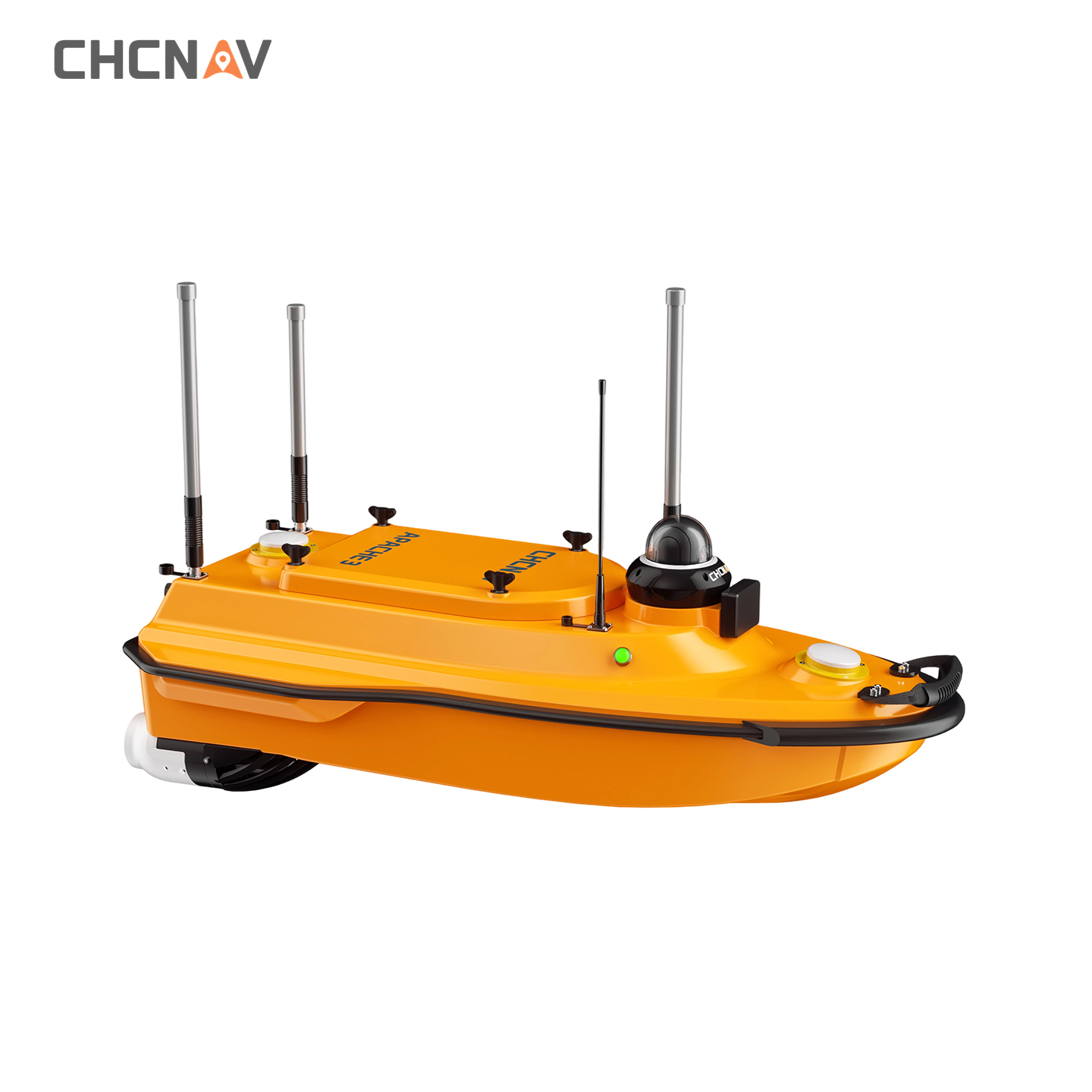

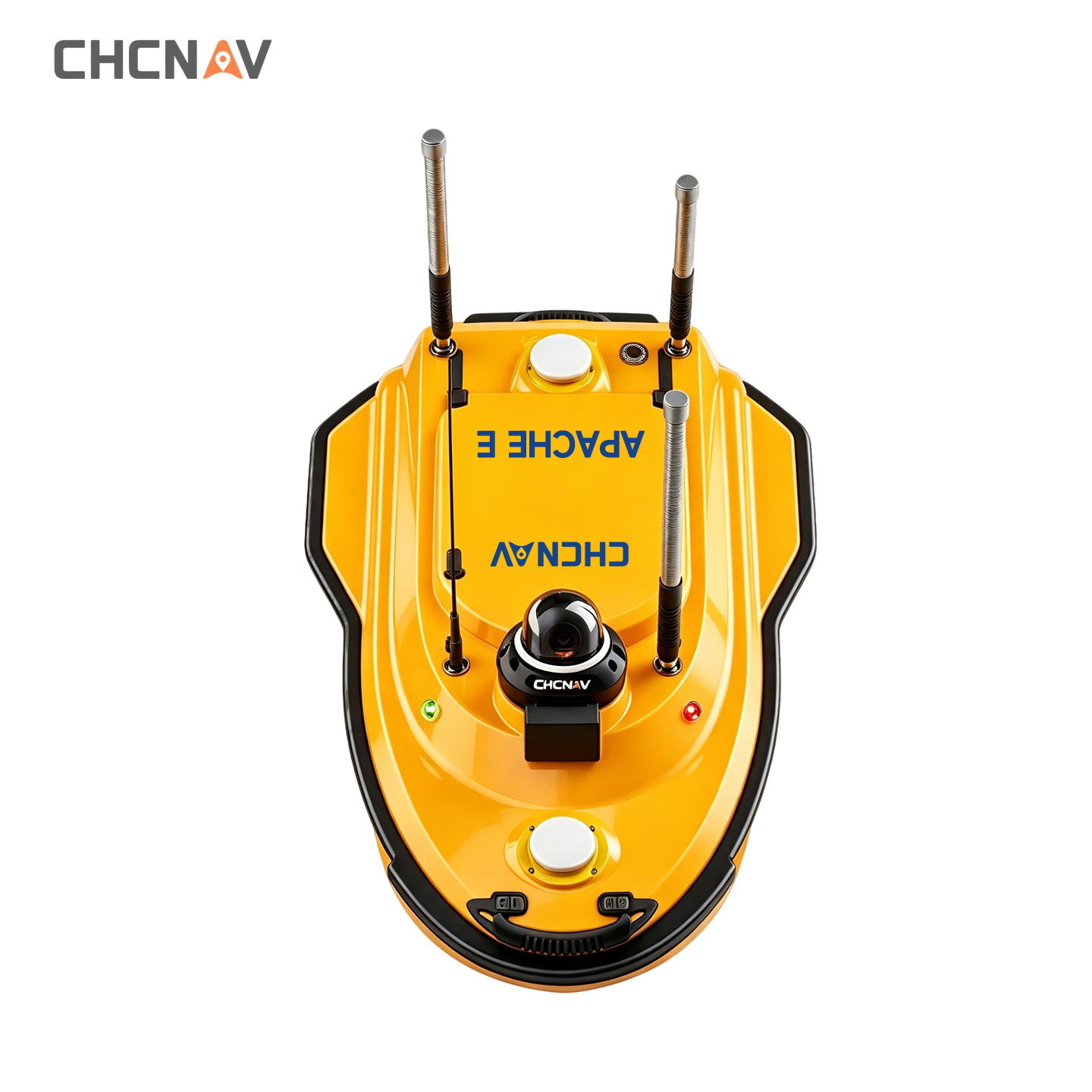

Rugged Hull Design

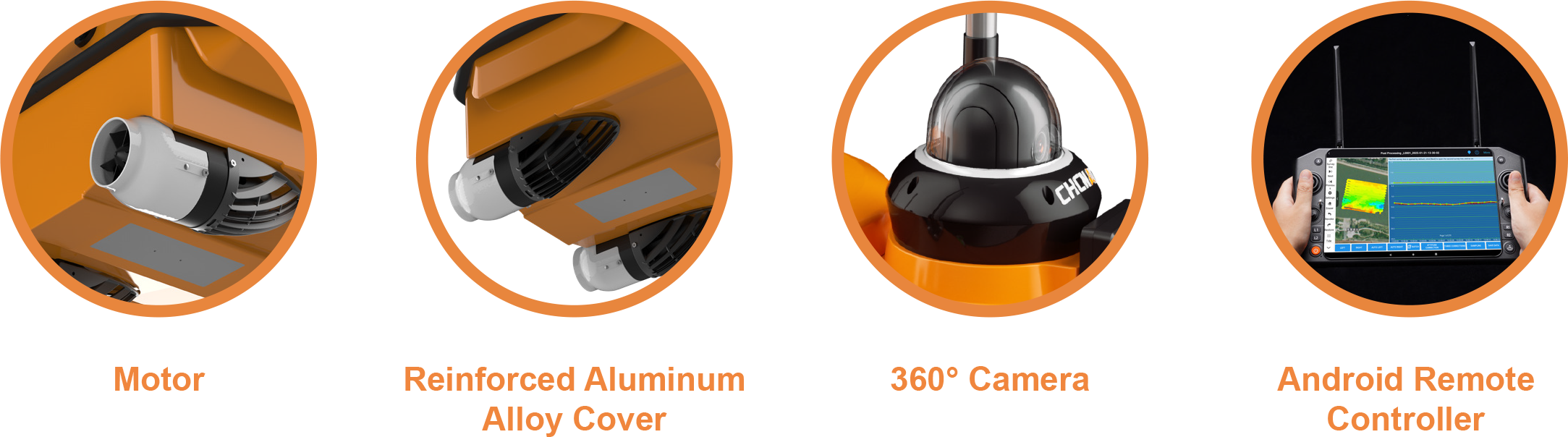

The APACHE 3 USV features a one-piece molded carbon fiber hull with 10 MPa strength and 60% improved impact resistance. A reinforced aluminum cover increases structural durability, while a 30% lighter design allows for easier single-person transport and deployment.
-
One-man Operation
With a 7 kg hull and 1 m length, the compact and lightweight APACHE 3 is easy to transport by car to remote survey sites. It can be operated by one person, increasing measurement efficiency and reducing labor costs.
-
Powerful Propulsion
The APACHE 3 is equipped with an 800 W motor capable of reaching 7200 RPM, enabling a top speed of 6 m/s. Its battery endurance allows up to 7 hours of continuous operation at a cruising speed of 1.5 m/s. Additionally, hot-swappable batteries support uninterrupted operation in the field.
-
High-accuracy Survey
Integrated GNSS and IMU sensors provide accurate position and attitude data, compensating for hull motion in survey results. Its next-generation bathymetric algorithms support adaptive parameter adjustments, ensuring reliable performance in dynamic riverbeds and diverse aquatic environments.

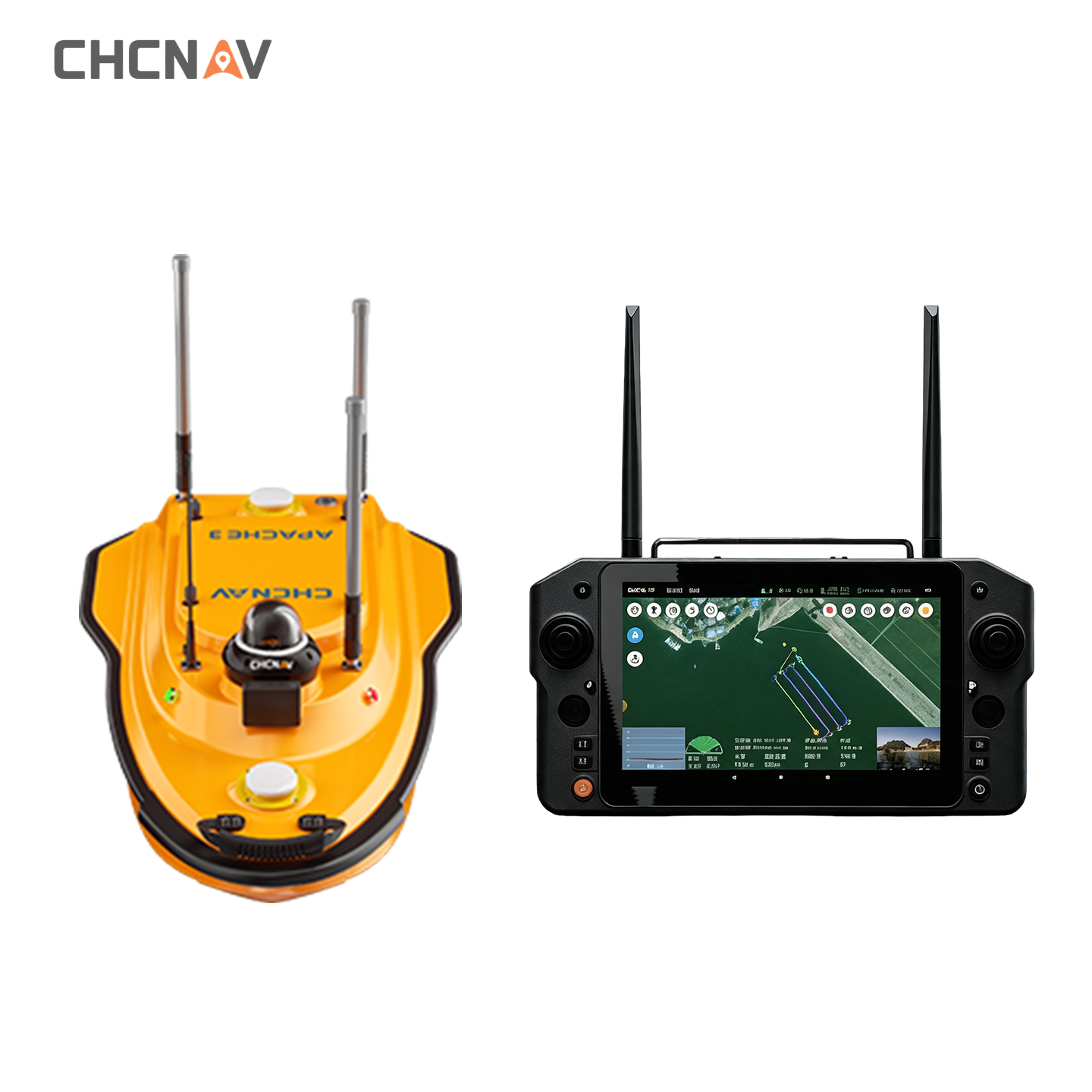

EasySailAll-in-One Android App
and acquisition in one unit, no PC needed, saving labor and boosting efficiency in field work.
• Remote controller supports
4G communication and data
radio, with real-time video
and data transmission.
COMPACT TURNKEY USV SYSTEM
CHCNAV APACHE 3 USV Specifications
Light‑Weight Compact Unmanned Surface Vehicle for Hydrographic Survey
PHYSICAL
| Hull Dimension (L × W × H) | 1050 mm × 550 mm × 390 mm |
| Material | High strength, high modulus carbon fiber |
| Process | HPT one‑piece molding |
| Weight (w/o instrument and battery) | 7 kg |
| Maximum Payload | 35 kg |
| Anti‑Wave & Wind | 3rd wind level and 2nd wave level |
| Hull Design | Triple‑hull vessel |
| Waterproof | IP67 |
| Protection | Equipped with anti‑collision strips |
| Static Draft | 10 cm |
| Indicator Light | Two‑color (positioning and differential signal) |
| Camera | 360° omnidirectional video |
| Obstacle Avoidance Distance & Range | 0.2‑40 m (H: 112°, V: 14°) |
PROPULSION
| Propeller Type | Brushless DC |
| Direction Control | Veering without steering engine |
| Rated Motor Power | 800 W |
| Maximum Motor Speed | 7200 ±5% RPM |
| Motor Installation | Pluggable |
| Li‑ion Battery Capacity | 32.4 V, 23.1 Ah |
| Battery Endurance | 7 h @1.5 m/s (1 battery set, expandable) |
| Power Supply | Single/dual balanced battery support |
| Battery Replacement | Hot swap supported |
| Charging Time | 3 h |
| Maximum Speed | 6 m/s |
REMOTE CONTROL
| Dimension (L × W × H) | 346 mm × 196.5 mm × 89.4 mm |
| Display Screen | 10‑inch |
| Resolution Ratio | 1920 × 1200 |
| Internal Storage | RAM: 4 GB, Storage: 64 GB |
| Battery Endurance | 5 h |
| Communication Frequency | 2.4 GHz |
| Peripheral Interface | USB, Nano SIM, TF card (up to 128 GB), Type‑C |
COMMUNICATIONS
| Data Communication | Standard 4G and Remote control |
| Remote Control Range | 1 km (Remote); Unlimited (4G) |
| SIM Card Slot | Nano SIM |
| Reserved Interface | 2 × RS232 serial ports |
| Navigation Mode | Manual or Auto‑Pilot |
| Data Storage | Local (multi‑channel) & Remote |
SOFTWARE — EasySail
| Main Functions | Route planning and autonomous navigation. Total mileage statistics, remaining mileage reminder, multi‑angle video and online map display. Hull parameter control, physical & virtual joysticks, system self‑check at power‑on. Data collection and post‑processing. Waveform overlay and attitude correction. Coordinate conversion, trajectory, water depth, waveform and hull parameter real‑time display. Online software/firmware updates. Export via USB/Type‑C. |
POSITIONING
| Satellite System | BDS B1I/B2I /B3I, GPS L1C/A/L2P(Y)/L2C/L5, Galileo E1/E5a/E5b, GLONASS L1/L2, QZSS L1/L2/L5 |
| Single Point Position (RMS) | Horizontal:1.5 m Vertical:2.5 m |
| DGNSS Positioning Accuracy | Horizontal:0.4 m +1 ppm Vertical:0.8 m +1 ppm |
| RTK Positioning Accuracy | Horizontal:±8 mm +1 ppm Vertical:±15 mm +1 ppm |
| Radio Protocols | Satel 3AS, CHC(1), TT450, Transparent |
| Heading Accuracy | 0.1 ° @1 m baseline |
| Inertial Navigation Stability | 6 °/h (accuracy attenuation 1 m after 20 s) |
| IMU Update Rate | 200 Hz |
D270 Single Beam Echo Sounder
| Data Type | CHCGD(1), NMEA SDDPT/SDDBT, original waveform |
| Sounding Range | 0.1 m to 200 m |
| Sounding Accuracy | ±0.01 m ±0.1% × D (D is the depth of water) |
| Resolution | 0.01 m |
| Maximum Sampling Rate | 30 Hz |
| Frequency | 200 kHz |
| Beam Angle | 6.2° ±1° |
| Sound Velocity Adjustment Range | 1400‑1700 m/s |
| Integrated Water Temperature Sensor | -55℃~+100℃, real‑time correction of the sound speed |
(1) CHCGD & CHC protocol is CHCNAV format.
