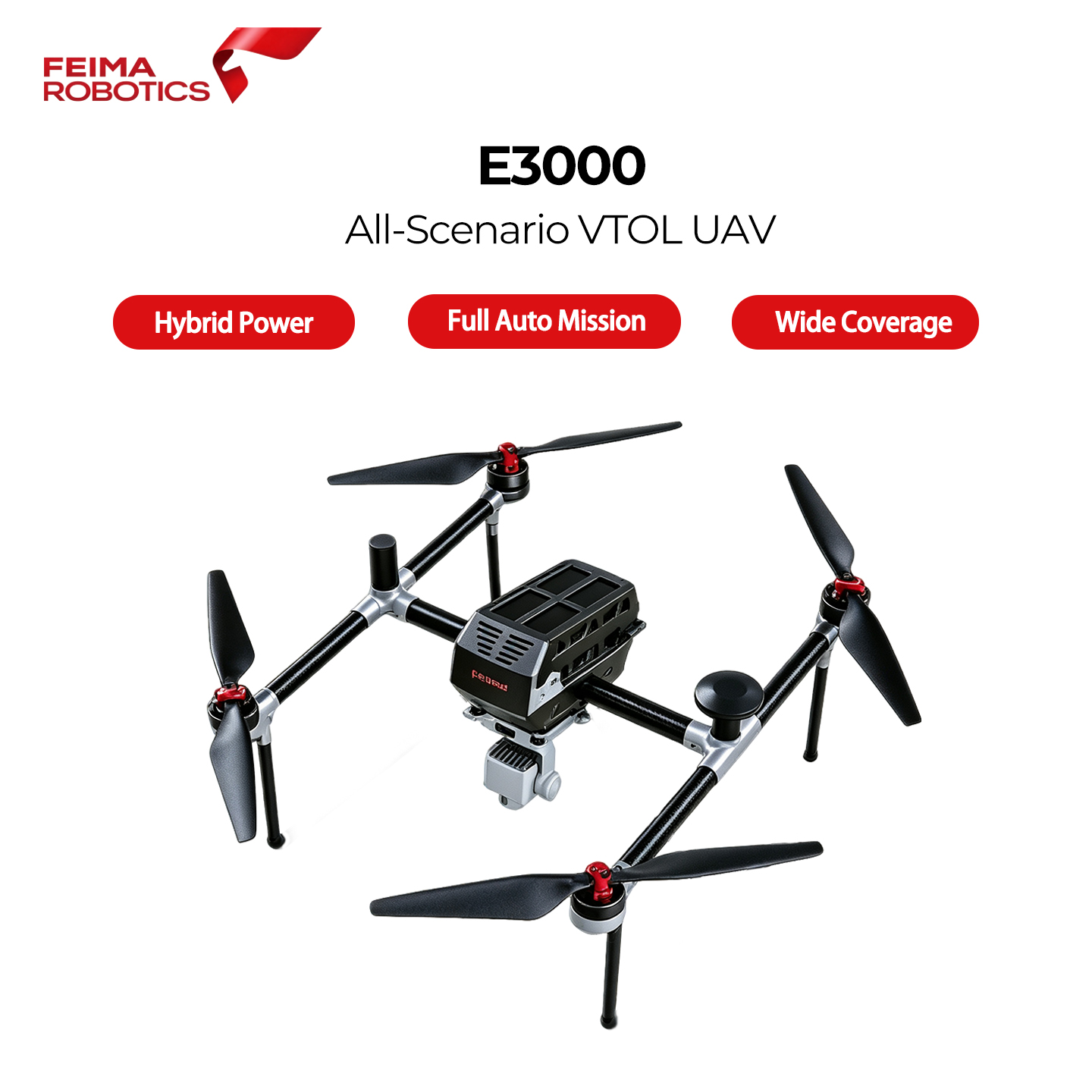

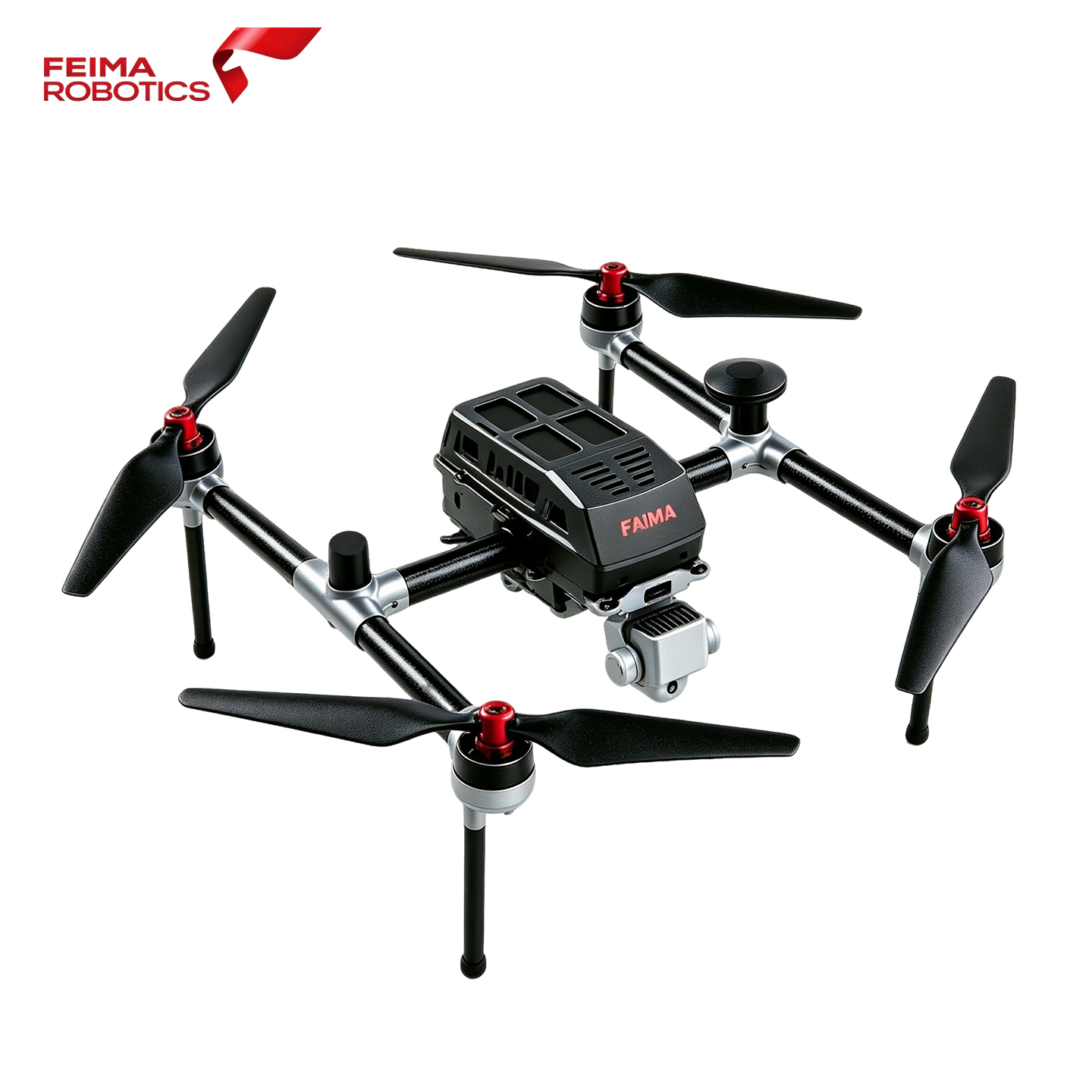

Feima E3000 Intelligent Aerial Survey Drone, Foldable Multirotor UAV with Global Shutter APS-C Camera for Photogrammetry
E3000
Aerial Survey System
Product Overview

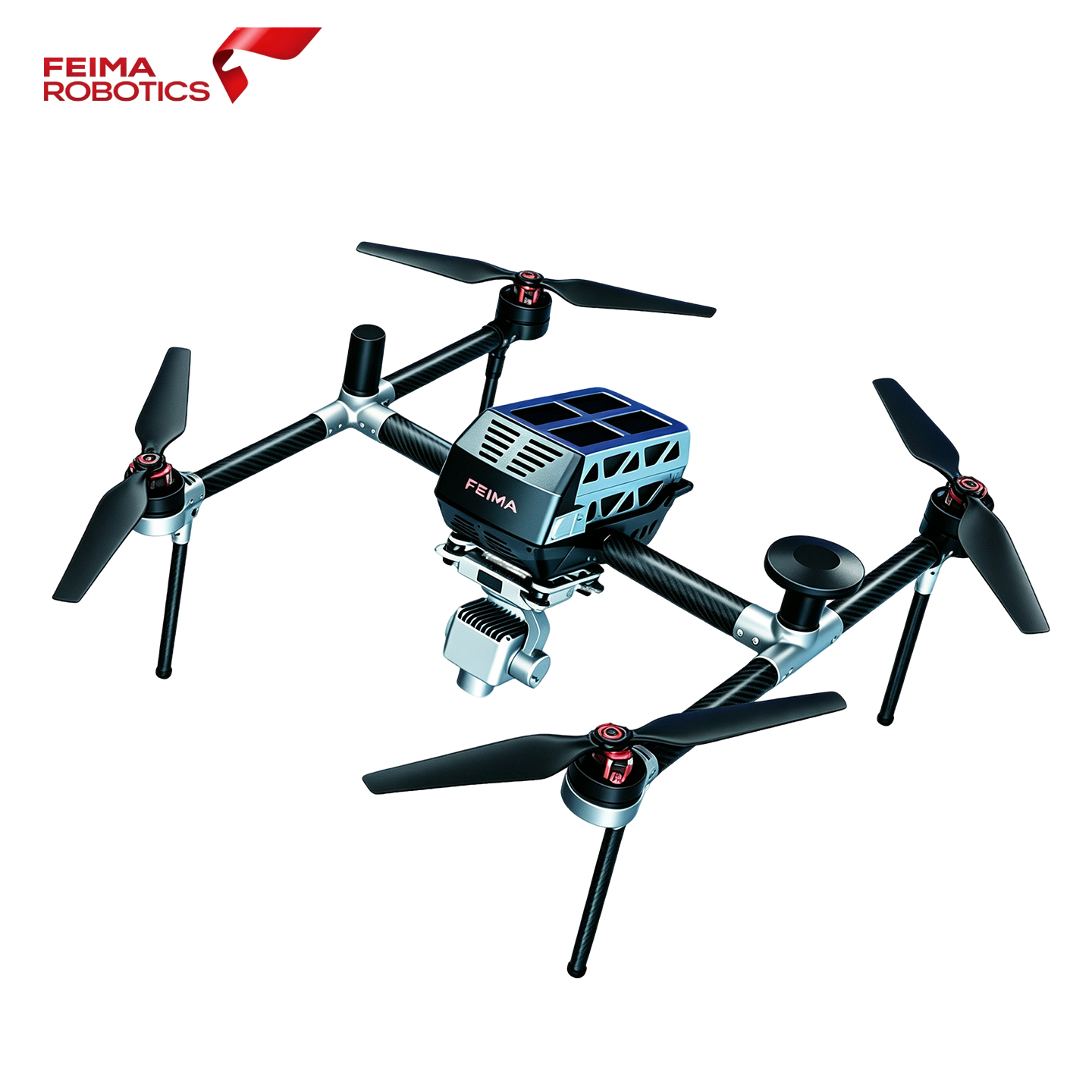

Feima E3000 is a lightweight professional aerial survey quadrotor independently developed by Feima Robotics. Adopting high-strength carbon fiber airframe, foldable layout for quick transportation and field deployment. Built-in self-developed APS-C 25.2MP aerial survey module with mechanical global shutter, effectively eliminating rolling shutter distortion. Equipped with dual differential GNSS antennas, supporting Network RTK and PPK dual positioning modes. Real-time POS data is directly embedded into images to simplify post-processing workflow. It supports three core operation modes: orthophoto mapping, oblique 3D modeling and aerial video recording. Integrated forward millimeter-wave radar obstacle avoidance and complete intelligent safety logic, ideal for medium and small-scale engineering survey, cadastral mapping, 3D reconstruction and emergency reconnaissance.
60min
Max Flight Time
25.2MP
APS-C Global Shutter Camera
50km
Flight distance
RTK + PPK
High-Precision Positioning
Core Technical Highlights
APS-C Mechanical Global Shutter Camera
25.2 million pixels, max shutter speed up to 1/2000s. Suppress rolling shutter distortion, deliver sharp and undistorted aerial images during high-speed flight.

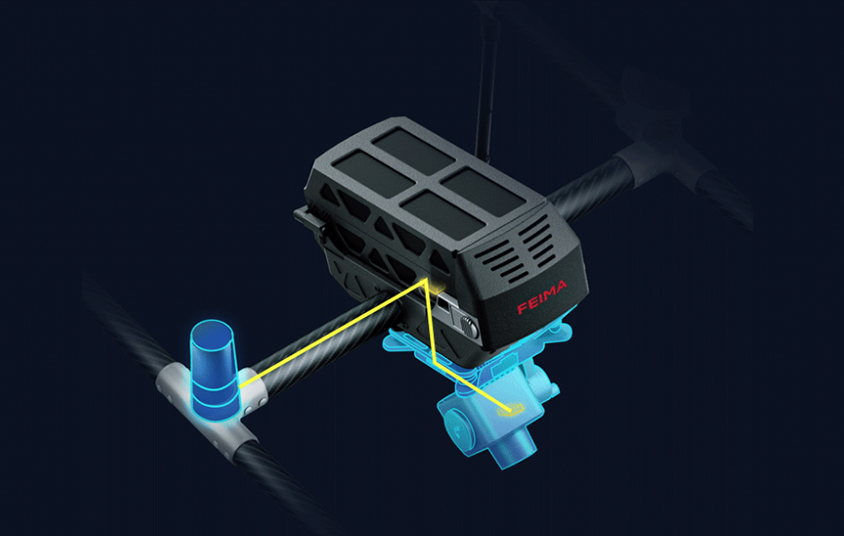

Dual Differential GNSS Antennas
Strong anti-interference performance, stable positioning under complex terrain, urban canyon and mining environments.
Real-Time POS Embedding Technology
High-precision POS data directly written into image metadata. No extra POS differential processing required, greatly improving post-processing efficiency.
3-in-1 Operation Modes
Supports orthophoto mapping, oblique photogrammetry and aerial video recording, one platform meets multiple survey demands.
Control-Point-Free 1:500 Mapping
RTK/PPK fusion positioning ensures horizontal accuracy up to centimeter level, realize standard 1:500 topographic mapping without ground control points.
Forward Millimeter-Wave Radar Obstacle Avoidance
Detect front obstacles effectively, enhance flight safety during mountain survey and suburban mapping tasks.

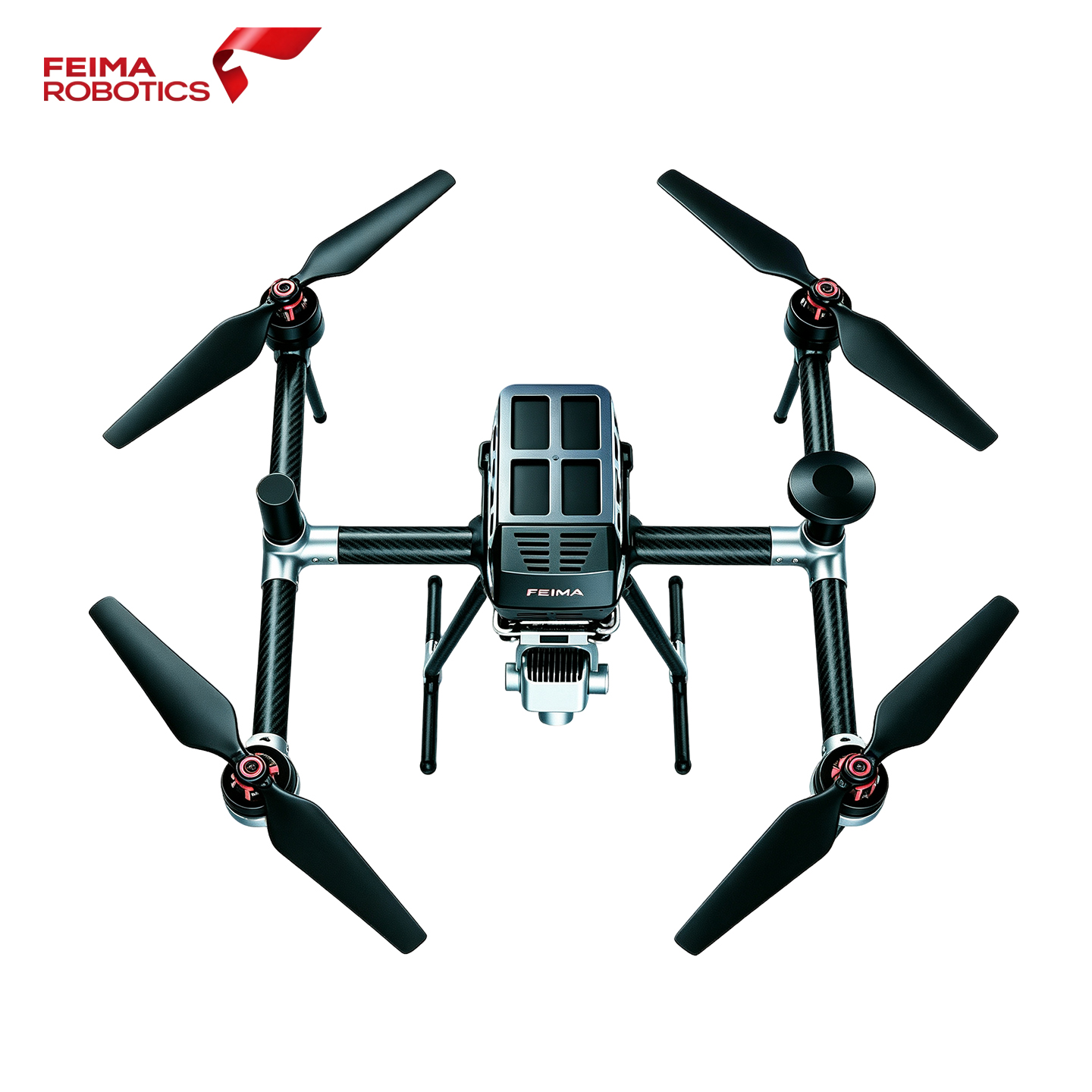

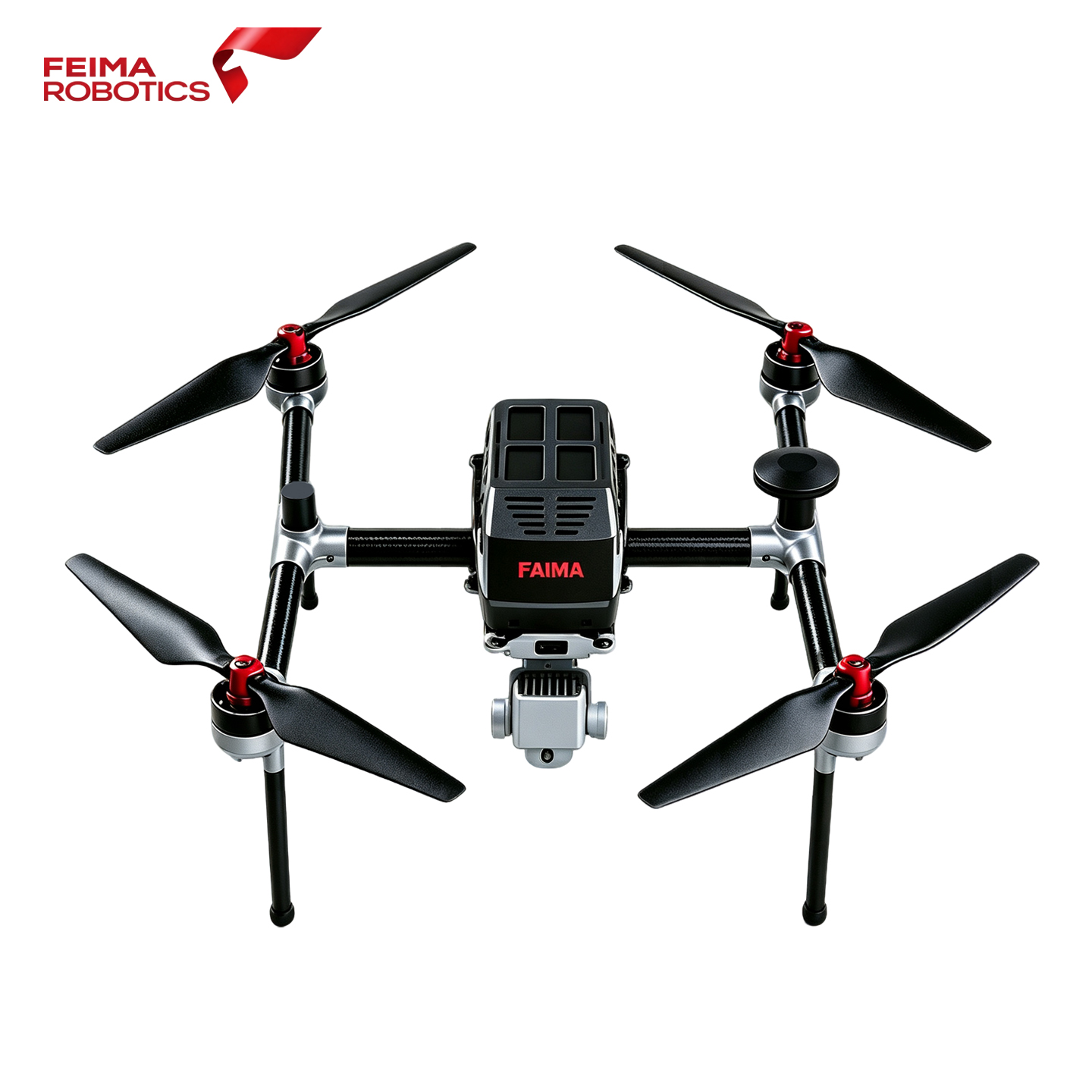

Foldable Compact Airframe & Fast Deployment
Tool-free folding design, easy transport. Full system ready for flight within 10 minutes in field operations.
Complete Intelligent Safety Protection
Lost-link return-to-home, low-power protection, GNSS-loss hovering, sensor fault emergency landing and power-on self-test.

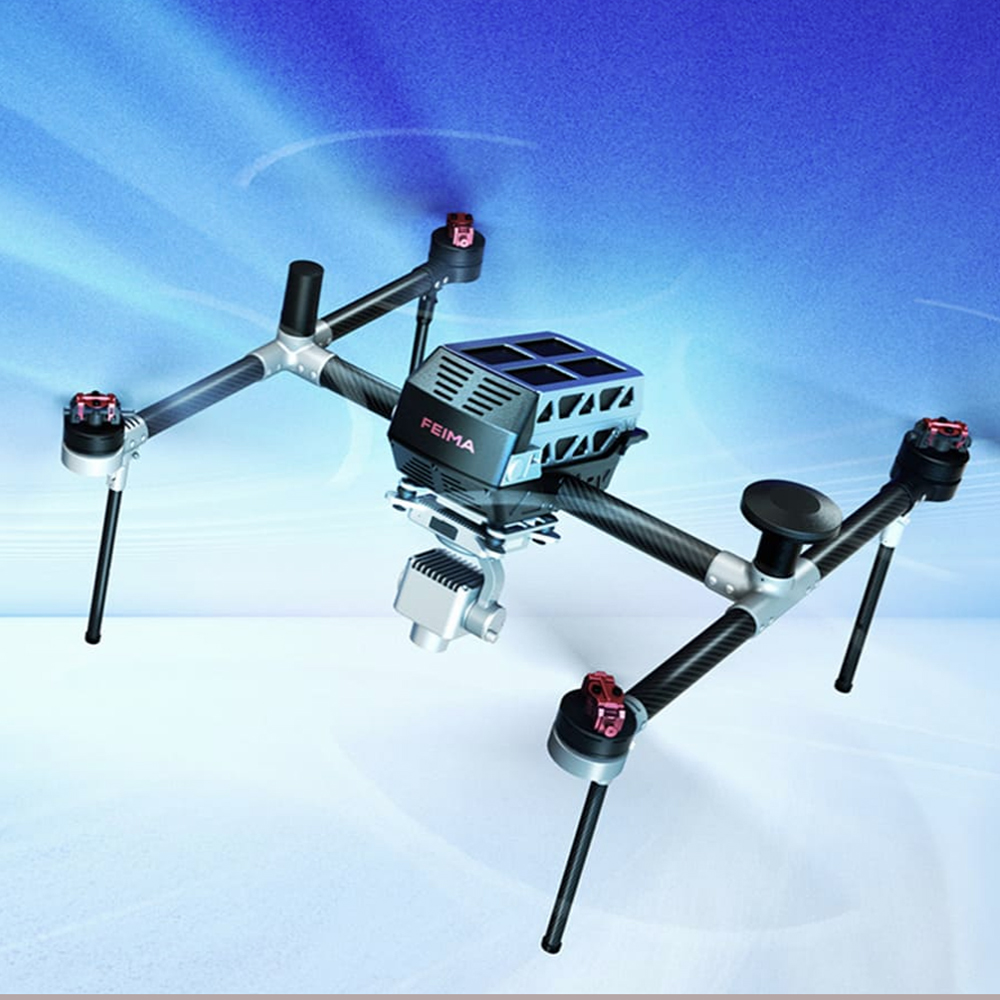

Integrated Aerial Survey Camera System
The E3000 integrates an independently developed and deeply optimized APS-C format aerial survey module, delivering outstanding imaging quality with autonomous exposure control and real-time POS tagging.
Mechanical Global Shutter
Built-in mechanical global shutter with maximum speed up to 1/2000s, effectively eliminates jelly effect caused by exposure delay and image shift during rapid drone movement.
28mm Professional Mapping Lens
Dual-Gauss symmetric structure with anomalous dispersion lens elements, effectively controls lens volume and suppresses optical aberrations. Optical distortion kept within 2%.
User-Adjustable Imaging Parameters
Supports adjustable ISO, white balance and shutter speed, enabling high-quality aerial image acquisition in complex lighting and environmental conditions.
-
PRODUCT DESCRIPTION
-
Long Endurance for Large-Scale Survey
Optimized aerodynamic design realizes long flight duration, greatly improving mapping efficiency for wide-area projects.
-
Self-developed Global Shutter Camera
APS-C format 25.2MP camera with mechanical global shutter, effectively avoids motion blur, delivers stable high-quality aerial imagery.
-
RTK/PPK High-Precision Positioning
Built-in differential GNSS system, supports RTK & PPK solution, effectively reduces ground control points for survey projects.
-
Multi-Mode Flight Modes
Support orthophoto, oblique photogrammetry and video inspection missions. 3D terrain-following flight ensures uniform resolution in complex terrain.
Intelligent Flight & Safety
E3000 integrates dual differential antennas, independent radio control, and multi-sensor safety systems, delivering stable flight and reliable data acquisition in complex survey environments.
- Dual differential antennas for enhanced anti-interference capability
- Independent radio control link, strong anti-interference, long range
- 20Hz high-precision differential GNSS, Network RTK + PPK fusion
- Terrain-following flight for consistent GSD in undulating terrain
- No-GNSS return-to-home safety mechanism
- Low-battery auto return, lost-signal auto return to home
- Single BeiDou version available for special-requirement projects
- Real-time POS directly written into image EXIF
Operation Modes & Standard Payload
Orthophoto Mapping Mode
Generate high-precision DOM orthophoto, applied to cadastral survey, land resource monitoring and engineering reconnaissance.

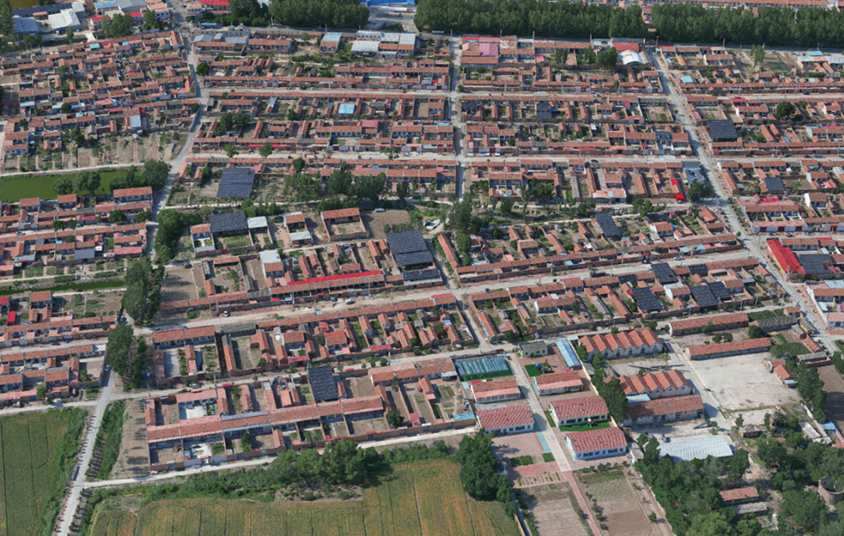

Oblique Photogrammetry Mode
Capture multi-angle images to generate 3D reality mesh models for digital city, village planning and heritage protection.
Aerial Video Recording Mode
Continuous aerial video acquisition, suitable for emergency reconnaissance, river and corridor patrol missions.
Standard Aerial Survey Module
25.2MP APS-C camera with mechanical global shutter, 28mm low-distortion mapping lens, adjustable ISO, shutter and white balance.
UAV Manager — Professional Survey Edition
One-stop intelligent GIS software covering flight planning, real-time monitoring, data preprocessing and spatial data production. Supports full workflow from mission design to deliverable generation.
3D Precision Route Planning
True-terrain based 3D flight route design, ensures consistent image resolution and flight safety.
Real-Time 3D Flight Monitoring
Live flight status, trajectory and payload data visualization with multi-dimensional quality check.
Automated Data Production
One-click output DOM, DEM, DSM, TDOM, 3D models, point cloud, contours and road cross-sections.
Cloud-Based Active Service
Project sync, flight data sharing, proactive maintenance, 4G/5G remote monitoring and video streaming.
Wide Range of Industry Applications
Flight Performance Specifications
| Item | Parameter |
|---|---|
| Airframe Layout | Quad-rotor, integrated aerial survey platform |
| Takeoff Weight | 2.95 kg |
| Max Flight Time | 60 min per battery (45-50 min effective survey time) |
| Max Flight Range | 50 km |
| Max Flight Speed | 20 m/s |
| Control Radius | Up to 20 km (independent radio link) |
| Max Takeoff Altitude | 4,000 m above sea level |
| Wind Resistance | Level 6 (up to 13.8 m/s) |
| Takeoff & Landing | Automatic VTOL, no remote controller required |
| Differential GNSS | 20 Hz, dual differential antennas |
| RTK Positioning Accuracy | Horizontal ±1cm, Vertical ±2cm |
| Positioning Service | Network RTK + PPK dual differential (CORS compatible) |
| Mapping Capability | 1:500 GCP-free large-scale mapping |
| Operation Modes | Orthophoto / Oblique / Video |
| Working Temperature | -20℃ ~ +45℃ |
| Deployment Time | ≤ 10 min |
| Standard Batteries | 2 × intelligent flight batteries (~3h charge each) |
