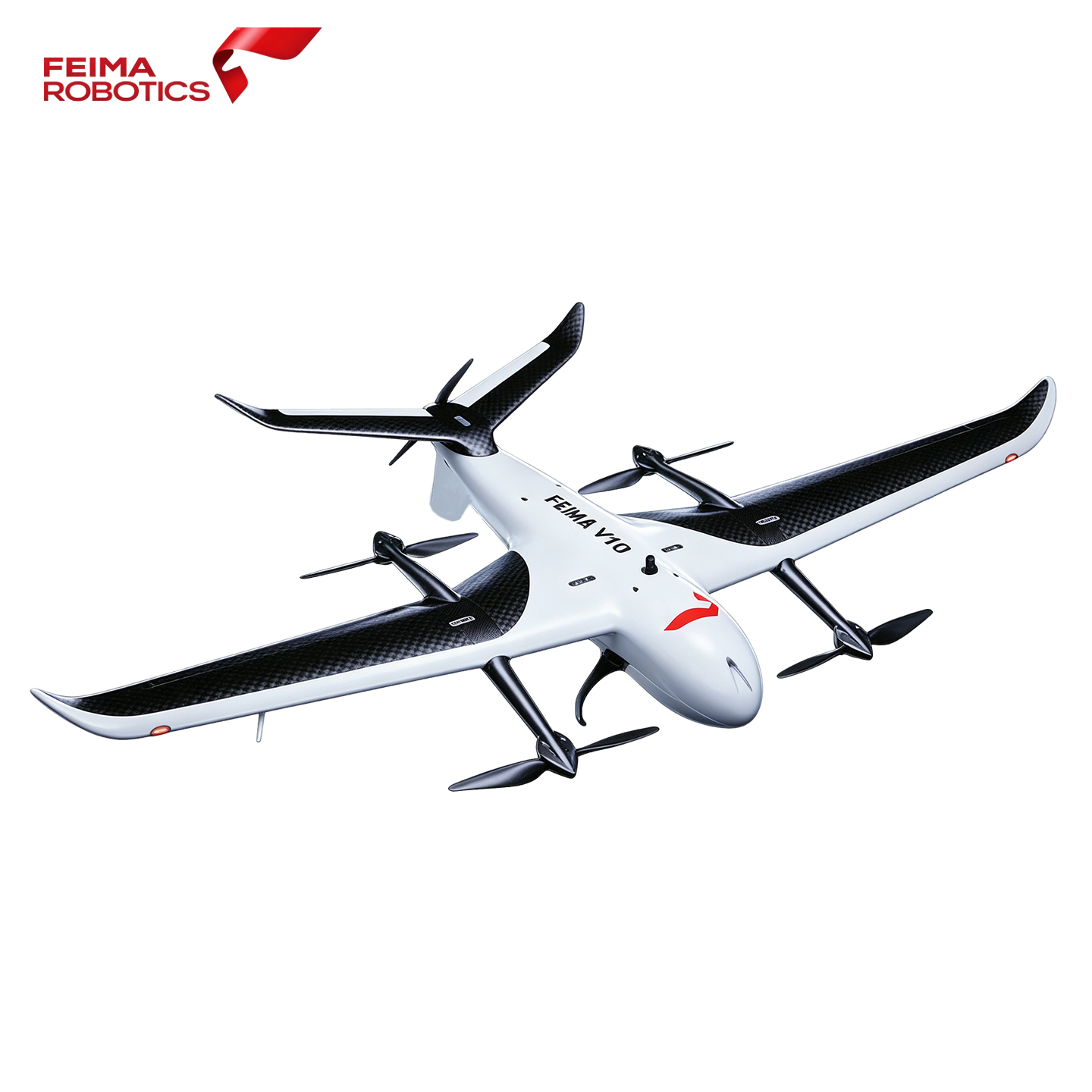

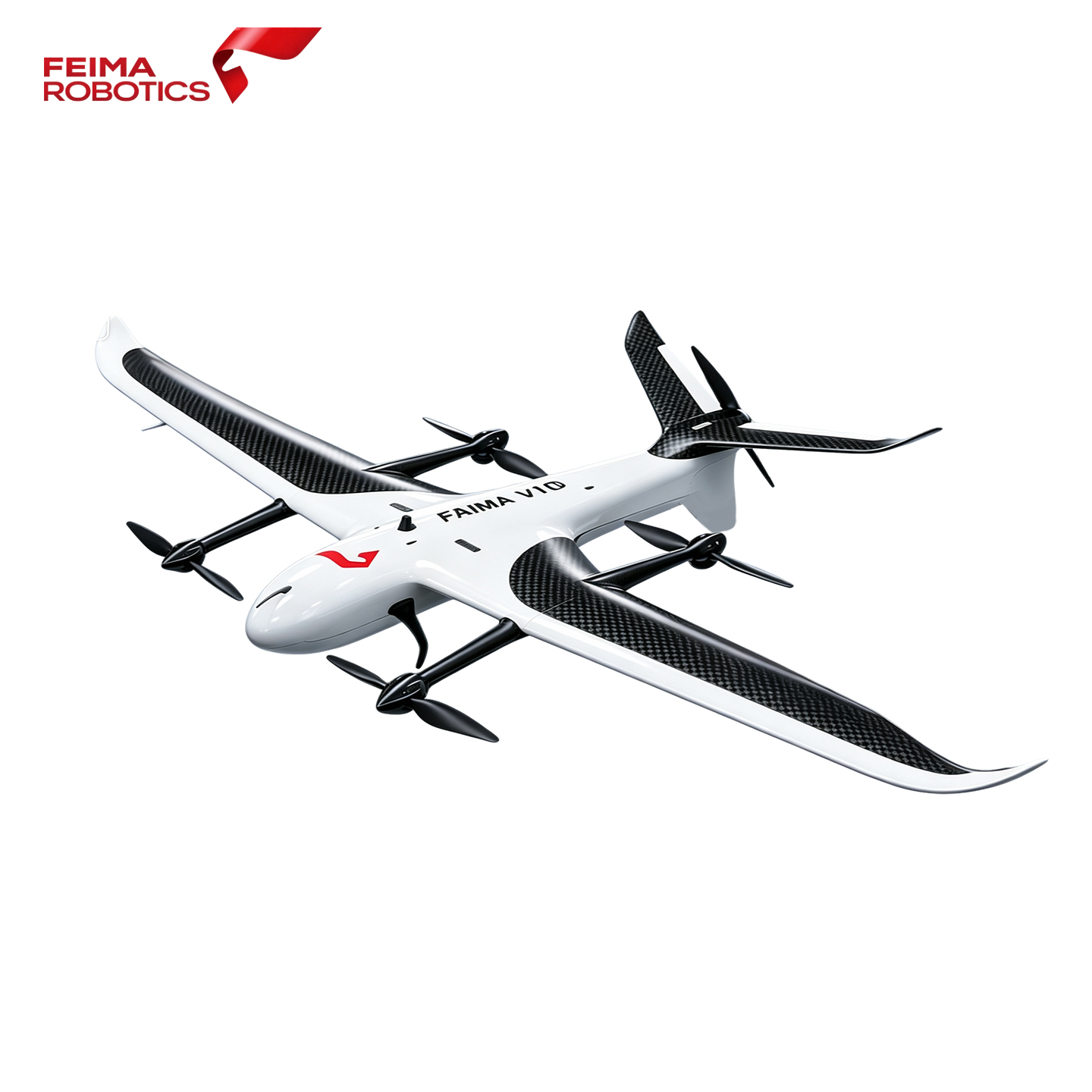

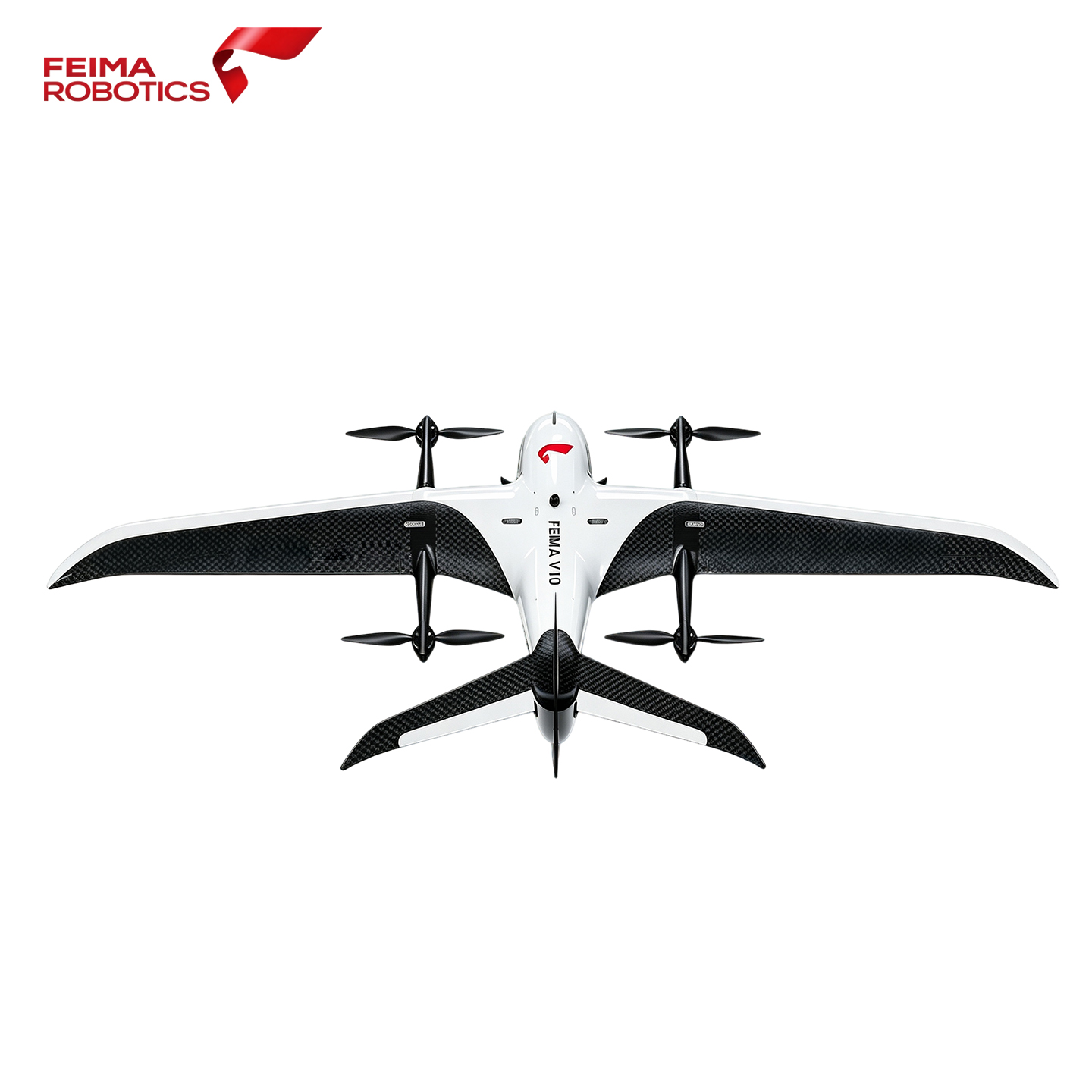

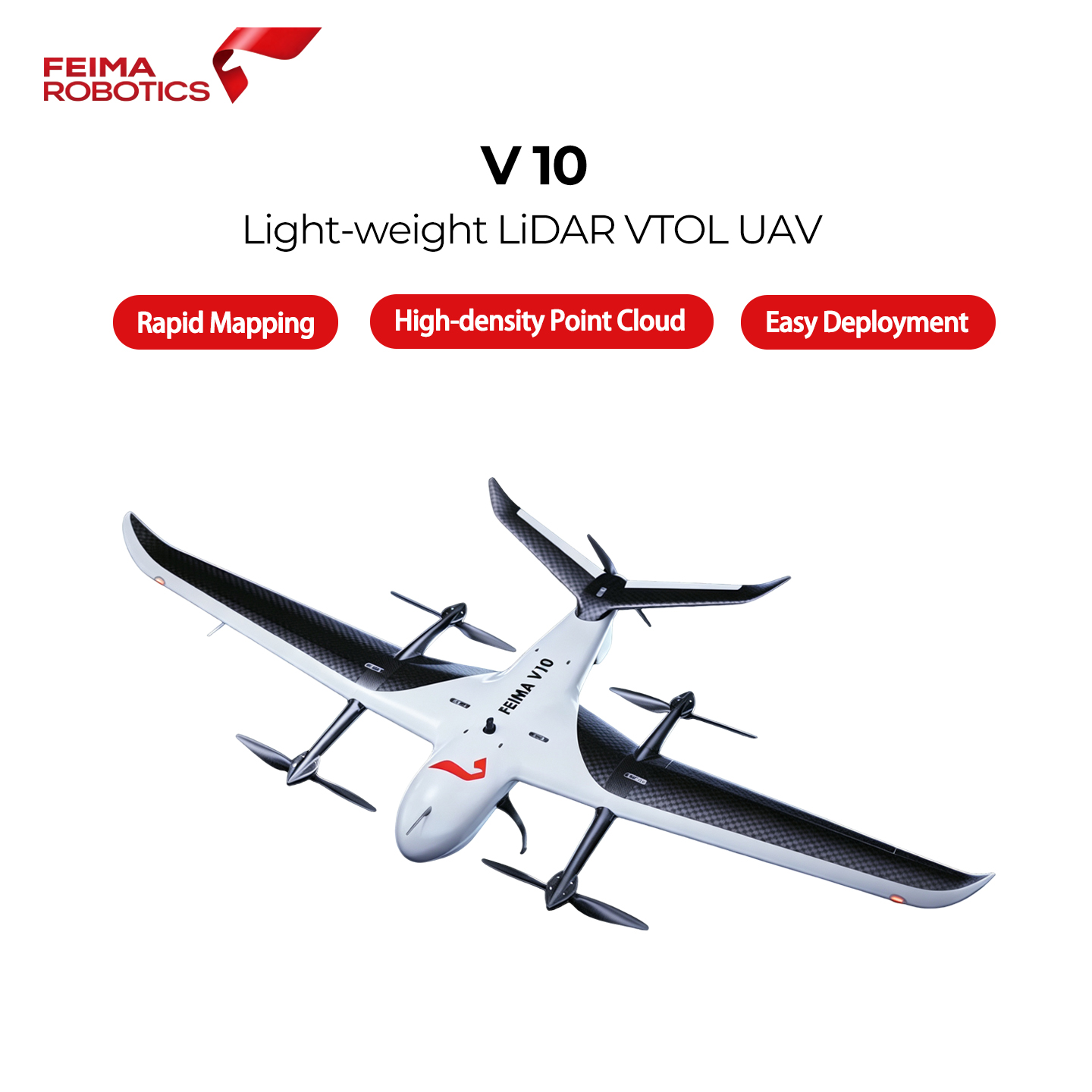

Feima V10 VTOL Fixed-Wing UAV, Heavy-Lift Long Flight Time Drone for Aerial Survey, LiDAR & Remote Sensing
Great achievements
V10
Feima intelligent Aerial photogrammetry, remote sensing, inspection and emergency system
Product Overview

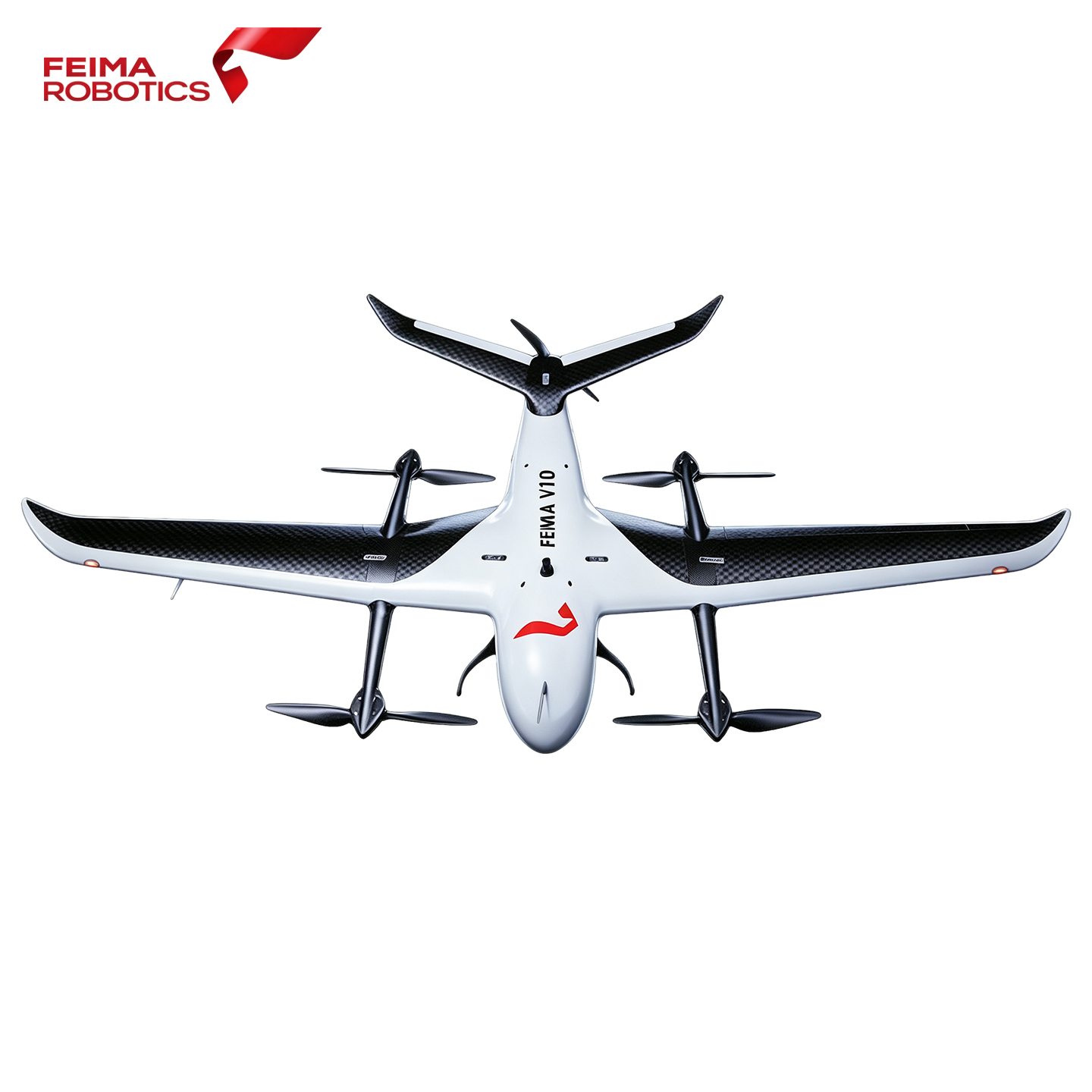

Feima V10 is a heavy-lift vertical take-off and landing fixed-wing UAV platform with industrial modular design. It shares intelligent batteries and full-series payloads with D20 multi-rotor UAV to maximize equipment reuse. Constructed with high-modulus carbon fiber, NOMAX honeycomb and PMI foam composite materials for lightweight and high strength. Equipped with high-precision differential GNSS, triple redundant altitude sensors (2 optical rangefinders + 1 millimeter-wave radar), supporting RTK/PPK fusion processing. It achieves control-point-free 1:500 large-scale mapping, ideal for wide-area aerial survey, long-distance power/pipeline inspection and emergency disaster monitoring.
25kg
Max Takeoff Weight
240min
Max Flight Time (1kg payload)
20m/s
Max Cruising Speed
50km
Control & Video Range
Core Technical Highlights
Cross-Platform Compatible with D20
Interchangeable intelligent batteries and all modular payloads between V10 and D20, lower overall investment cost.
Triple Redundant Altitude Sensing
2 optical rangefinders + 1 millimeter-wave radar. Centimeter-level true altitude guaranteed during takeoff & landing even if one sensor fails.
Fully Automatic VTOL Operation
No runway required; vertical takeoff & transition to fixed-wing cruise, balance flexibility and wide-area efficiency.
RTK & PPK Fusion High-Precision Positioning
Supports network RTK and PPK post-processing, enables control-point-free 1:500 large-scale aerial surveying.
Rich Modular Payload Ecosystem
Compatible with oblique camera, thermal infrared, multispectral, hyperspectral, LiDAR and SAR payloads.
Multi-Layer Safety Protection
Lost-link return-to-home, low-power protection, sensor fault emergency landing, complete flight safety logic.
Lightweight Composite Airframe
High-modulus carbon fiber sandwich structure, impact resistance and excellent aerodynamic efficiency for long endurance.
Interchangeable Payload Ecosystem
Photogrammetric Modules

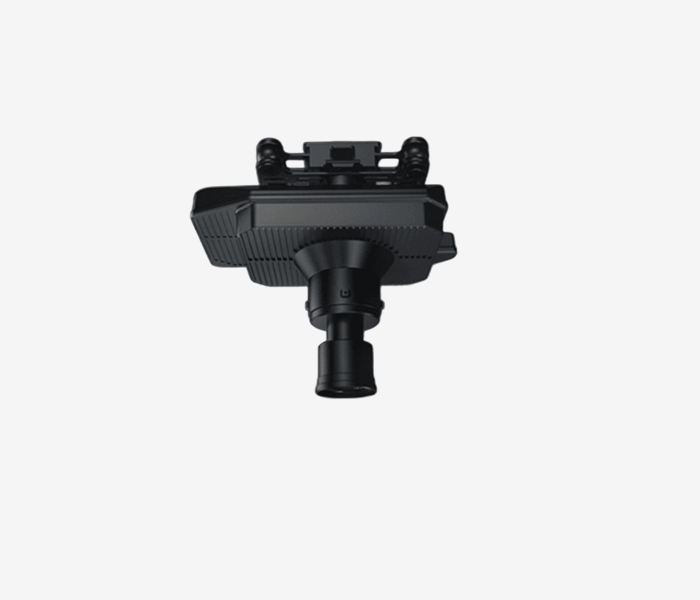

V-CAM10
Full-frame survey camera (SONY RX1R II, 42MP) for large-area orthophoto mapping
DV-CAM20
High-performance vertical survey camera for precision topographic mapping
Oblique Photography Modules
D-OP4000
Five-camera oblique module for high-fidelity 3D city modeling
Airborne LiDAR Modules
DV-LiDAR21
Long-range LiDAR (up to 1500m) for high-drop mountain and corridor survey

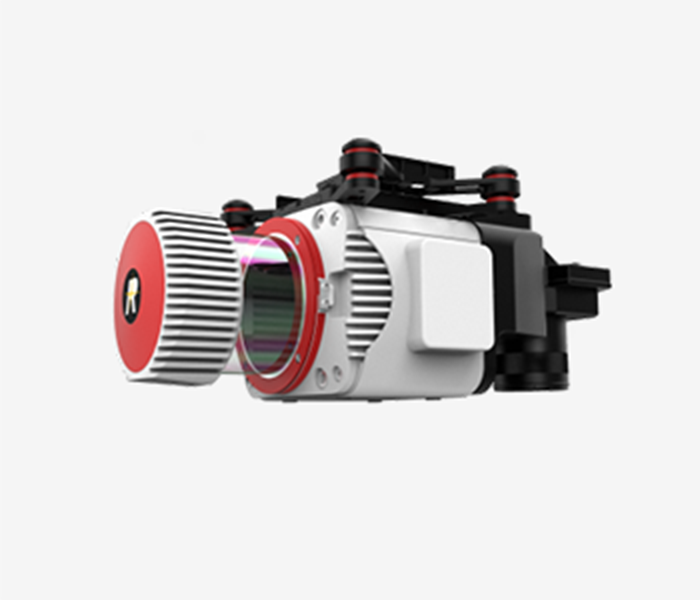

DV-LiDAR22
High-density LiDAR for power corridor and forestry survey

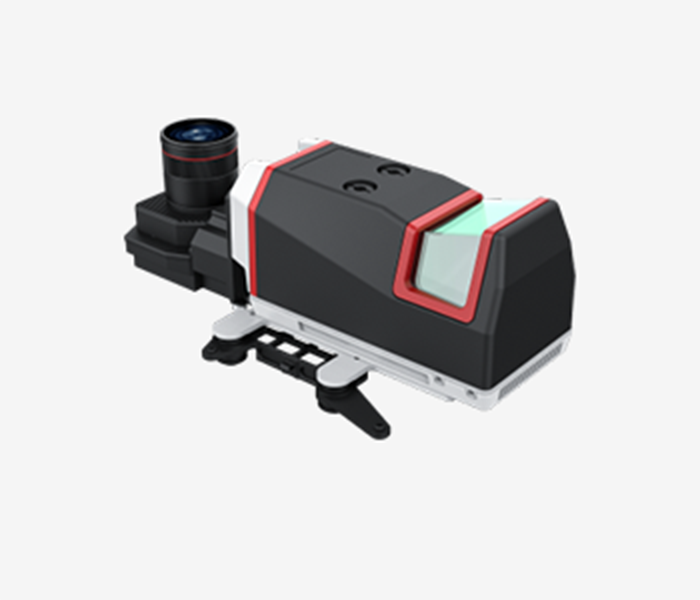

DV-LiDAR30
Mid-range LiDAR for general topographic and engineering survey

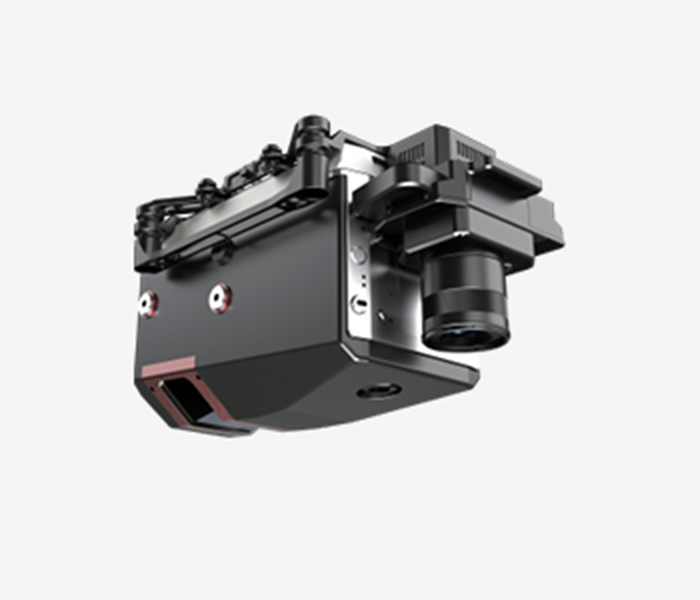

DV-LiDAR40
High-precision LiDAR for detailed mapping and infrastructure inspection

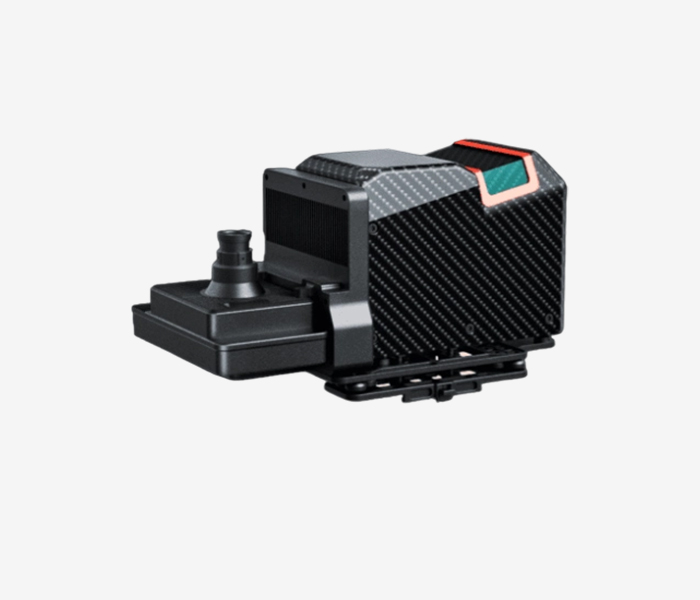

DV-LiDAR600
Compact high-performance LiDAR for versatile survey missions
-
PRODUCT DESCRIPTION
-

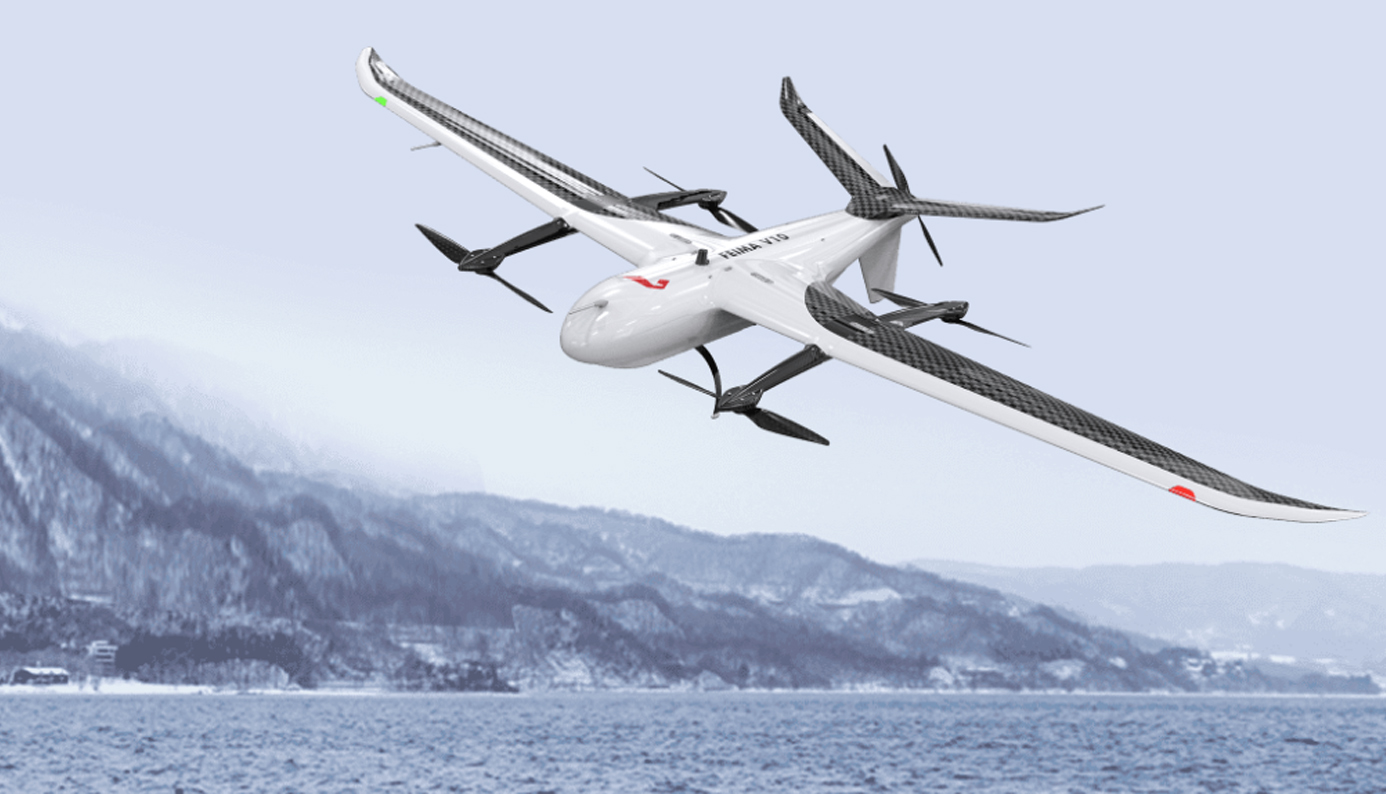

VTOL Vertical Takeoff & Landing
No runway required. Capable of vertical takeoff and landing on mountains, islands and confined sites, while retaining high-efficiency fixed-wing long-distance cruising.
-
Redundant Fusion System
Dual optical ranging radars + single millimeter-wave radar triple redundant altitude sensing, plus dual airspeed tubes, dual magnetometers, triple IMUs, dual navigation GNSS modules.
-

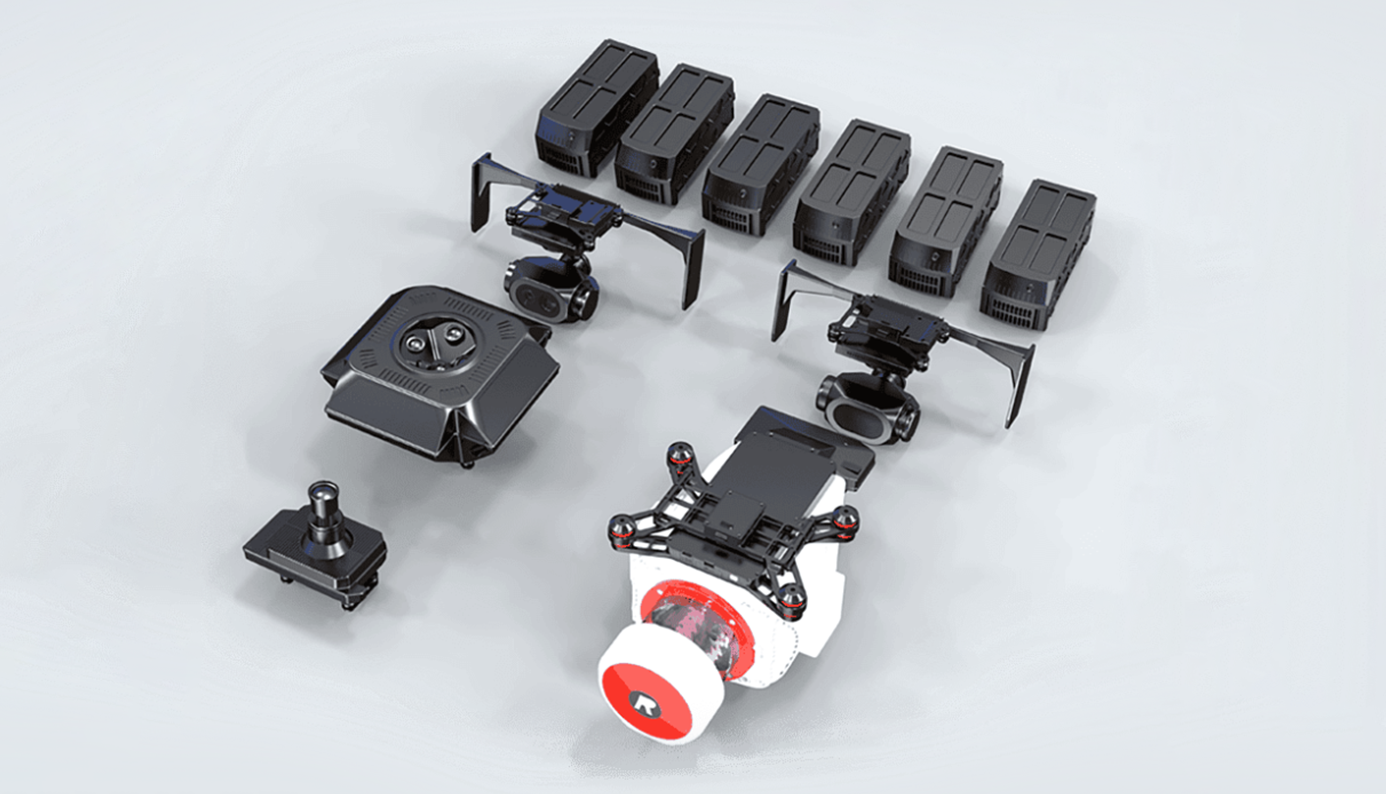

Modular Quick-Swap Payload Design
Compatible with visible photogrammetry, oblique camera, visible video, thermal camera, thermal video, multispectral, hyperspectral, LiDAR and SAR modules. All payloads interchangeable with Feima D20.
-

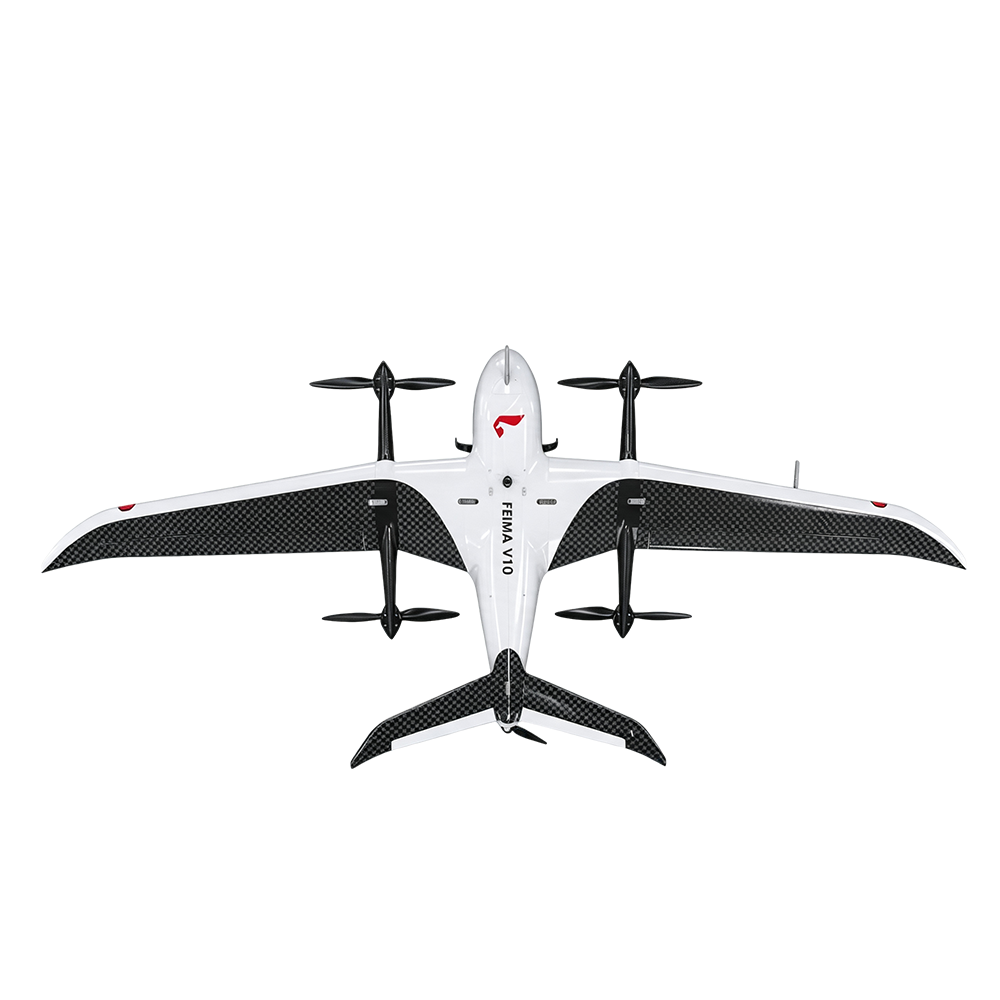

Foldable & Quick Assembly Structure
Quick assembly, easy transportation in survey vehicles. Suitable for field engineering, mountain survey and mobile field operations.
Multi-Redundant Flight Control & Safety System
- Fully automatic vertical takeoff and landing, no runway required
- Dual differential GNSS antenna for heading orientation
- Network RTK / PPK / fusion high-precision positioning
- Millimeter-wave radar + optical + laser ranging redundancy
- Distributed power management with battery health monitoring
- Up to 10 smart battery cells configurable by payload
- Low-battery auto return, lost-signal auto return to home
- Feima Cloud: live HD streaming, multi-terminal sync, remote monitoring
Payload Matching & Application Guide
| Payload Category | Representative Models | Primary Data Output | Typical Application |
|---|---|---|---|
| Vertical Survey Camera | V-CAM10 / DV-CAM20 | DOM, DEM, DSM, TDOM | Large-area topographic mapping, land survey |
| Oblique Camera | D-OP4000 | 3D mesh model, textured reality model | Digital city, BIM, urban renewal |
| Long-Range LiDAR | DV-LiDAR21 / 22 | High-density point cloud, classified point cloud | Power corridor, mountain survey, forestry |
| Mid-Range LiDAR | DV-LiDAR30 / 40 / 600 | Point cloud, DEM, contour, cross-section | Engineering survey, infrastructure inspection |
| Visible Video Gimbal | Visible light video module | HD live video, target tracking, zoom | Emergency response, surveillance, patrol |
| Thermal Infrared | Thermal camera / Thermal+visible video | Thermal image, temperature distribution | Fire detection, equipment inspection, night ops |
| Multispectral / Hyperspectral | Multispectral / Hyperspectral module | NDVI, spectral signature, crop health | Precision agriculture, environmental monitoring |
| SAR | Synthetic aperture radar module | All-weather radar image | Cloud-cover imaging, disaster monitoring, all-weather survey |
UAV Manager — Professional Survey Edition
One-stop intelligent GIS software covering flight planning, real-time monitoring, data preprocessing and spatial data production. Supports full workflow from mission design to deliverable generation.
3D Precision Route Planning
True-terrain based 3D flight route design, ensures consistent image resolution and flight safety.
Real-Time 3D Flight Monitoring
Live flight status, trajectory and payload data visualization with multi-dimensional quality check.
Automated Data Production
One-click output DOM, DEM, DSM, TDOM, 3D models, point cloud, contours and road cross-sections.
Cloud-Based Active Service
Project sync, flight data sharing, proactive maintenance, 4G/5G remote monitoring and video streaming.
Wide Range of Industry Applications
Flight Performance Specifications
| Item | Parameter |
|---|---|
| Aircraft Type | VTOL fixed-wing (vertical takeoff + fixed-wing cruise) |
| Airframe Material | High-modulus carbon fiber + NOMAX honeycomb + PMI foam sandwich composite |
| Wingspan | 4,150 mm |
| Fuselage Length | 1,750 mm |
| Max Takeoff Weight | 25 kg (up to 26kg depending on configuration) |
| Max Payload | 6 kg |
| Max Flight Time | 240 min @1kg payload; 150 min @6kg payload |
| Cruise Speed | 20 m/s |
| Control Range | Up to 50 km |
| Takeoff & Landing | Fully automatic vertical takeoff and landing (no runway) |
| Positioning Accuracy (RTK) | Horizontal 1cm+1ppm, Vertical 2cm+1ppm |
| Positioning Mode | RTK / PPK fusion, dual differential antenna orientation |
| Motor Configuration | 5 motors (4 vertical lift + 1 pusher) |
| Battery System | Up to 10 smart battery cells, configurable by payload |
| Mapping Capability | GCP-free 1:500 large-scale mapping |
