Feima V10R Intelligent Electric VTOL UAV, Multi‑Payload Drone for Emergency Response, Security Patrol & Aerial Survey
Survey, Remote Sensing, Patrol,
Emergency Command & Logistics
Transportation
Product Overview

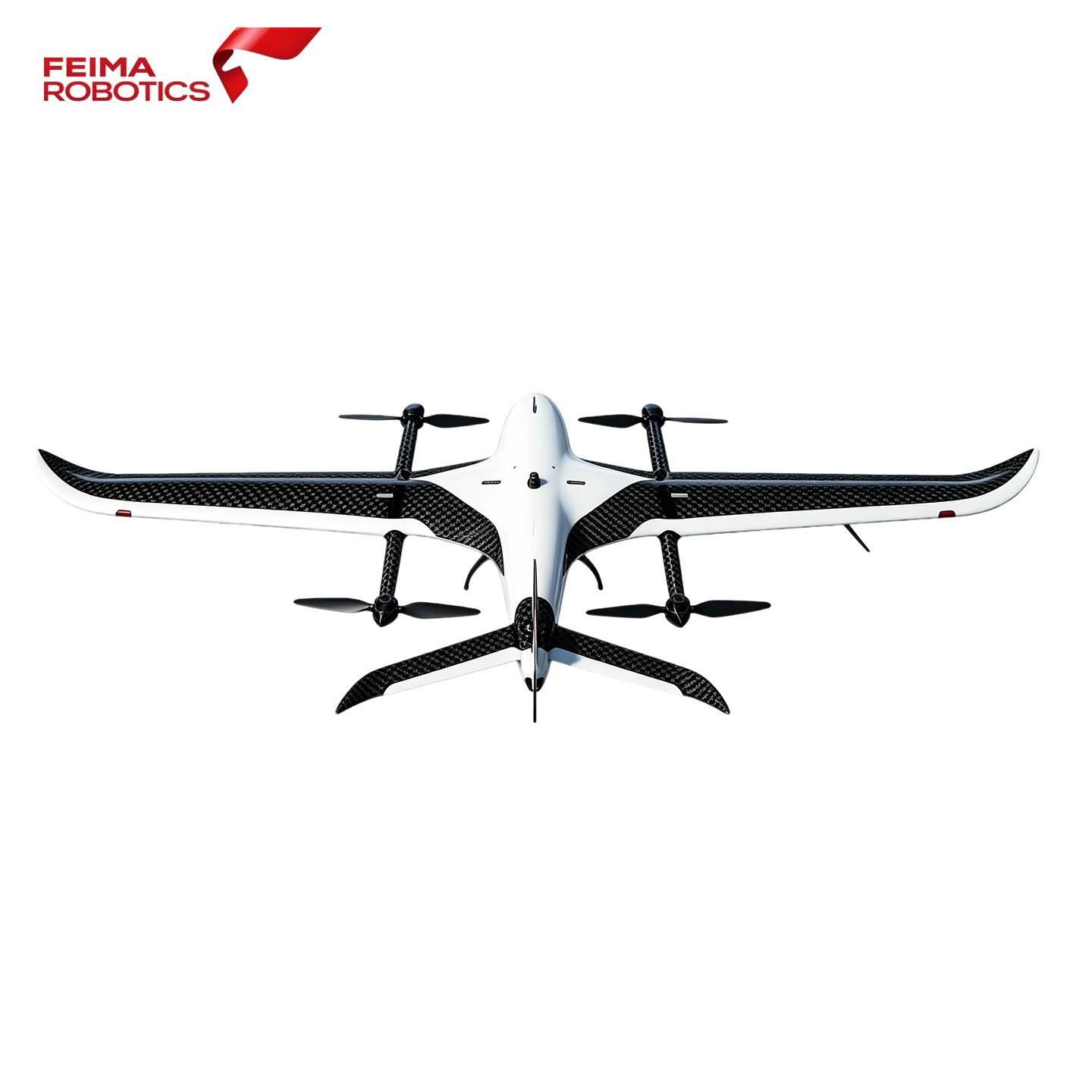

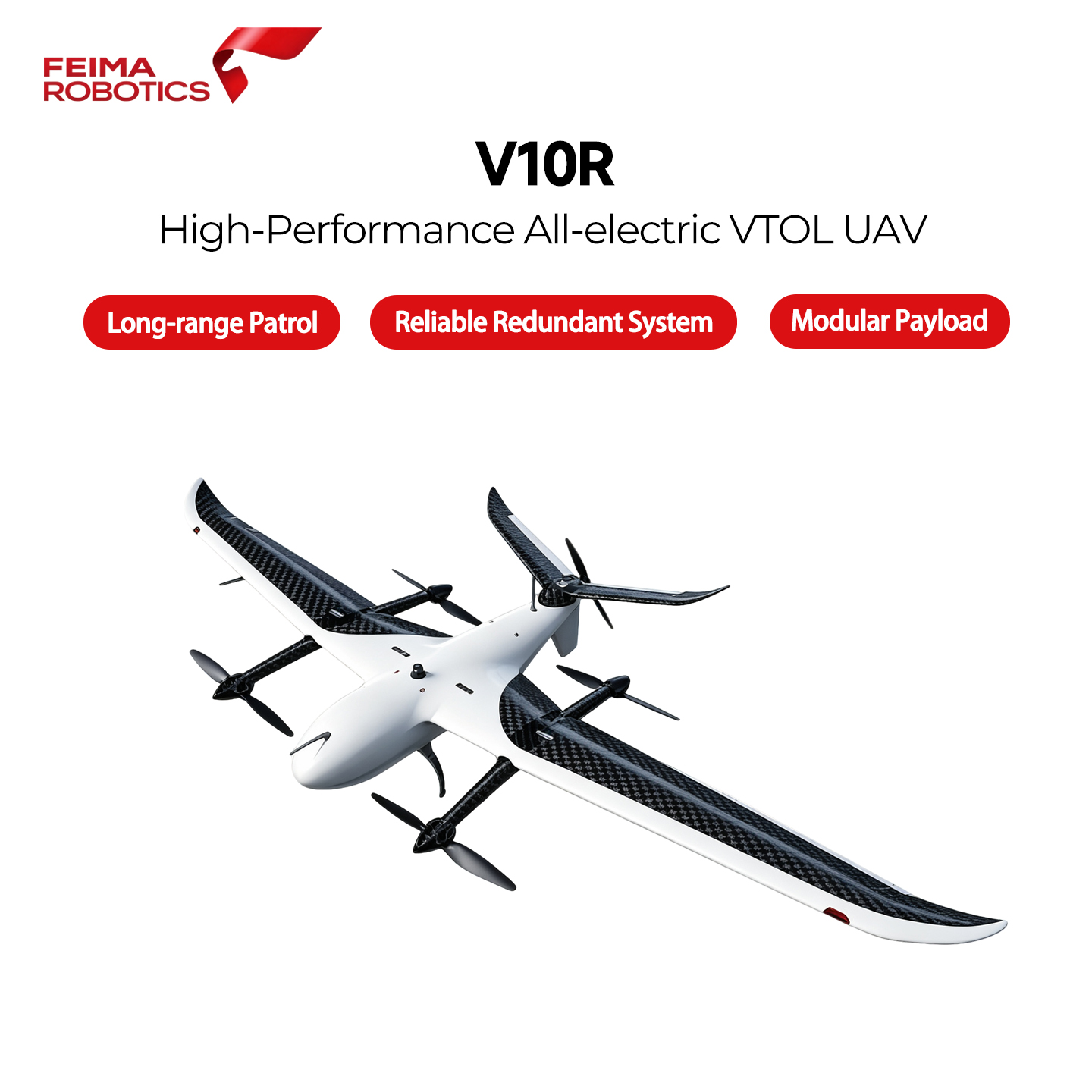

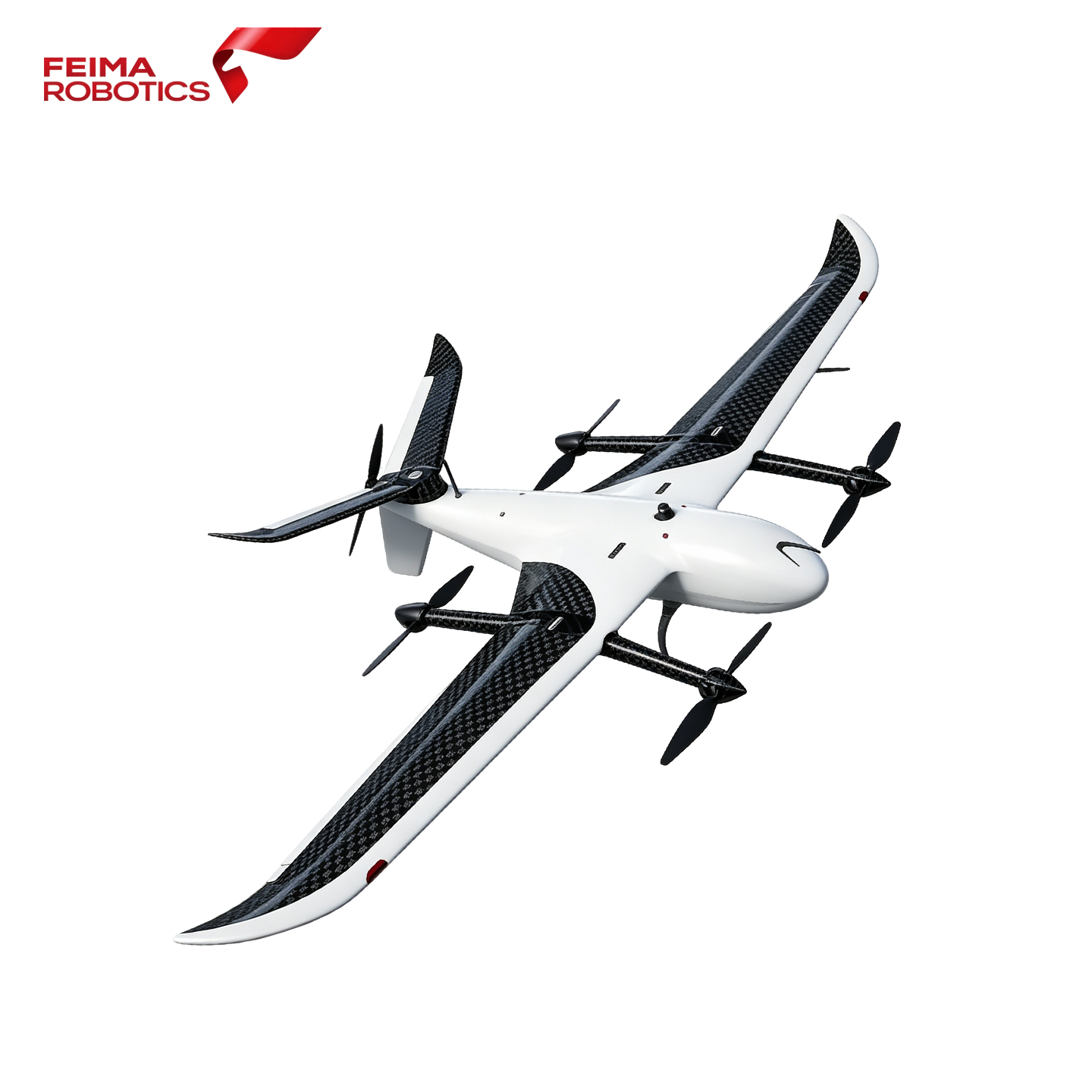

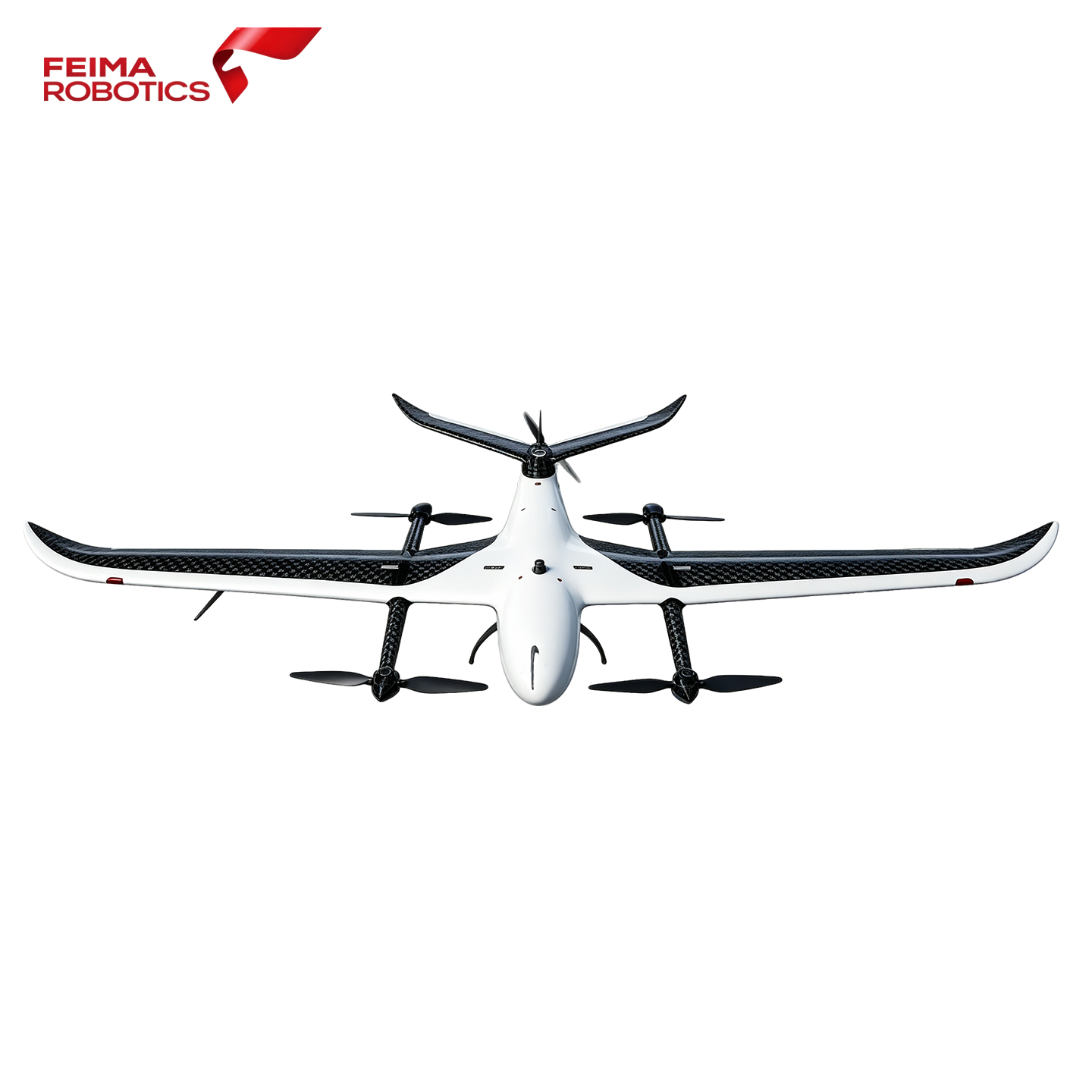

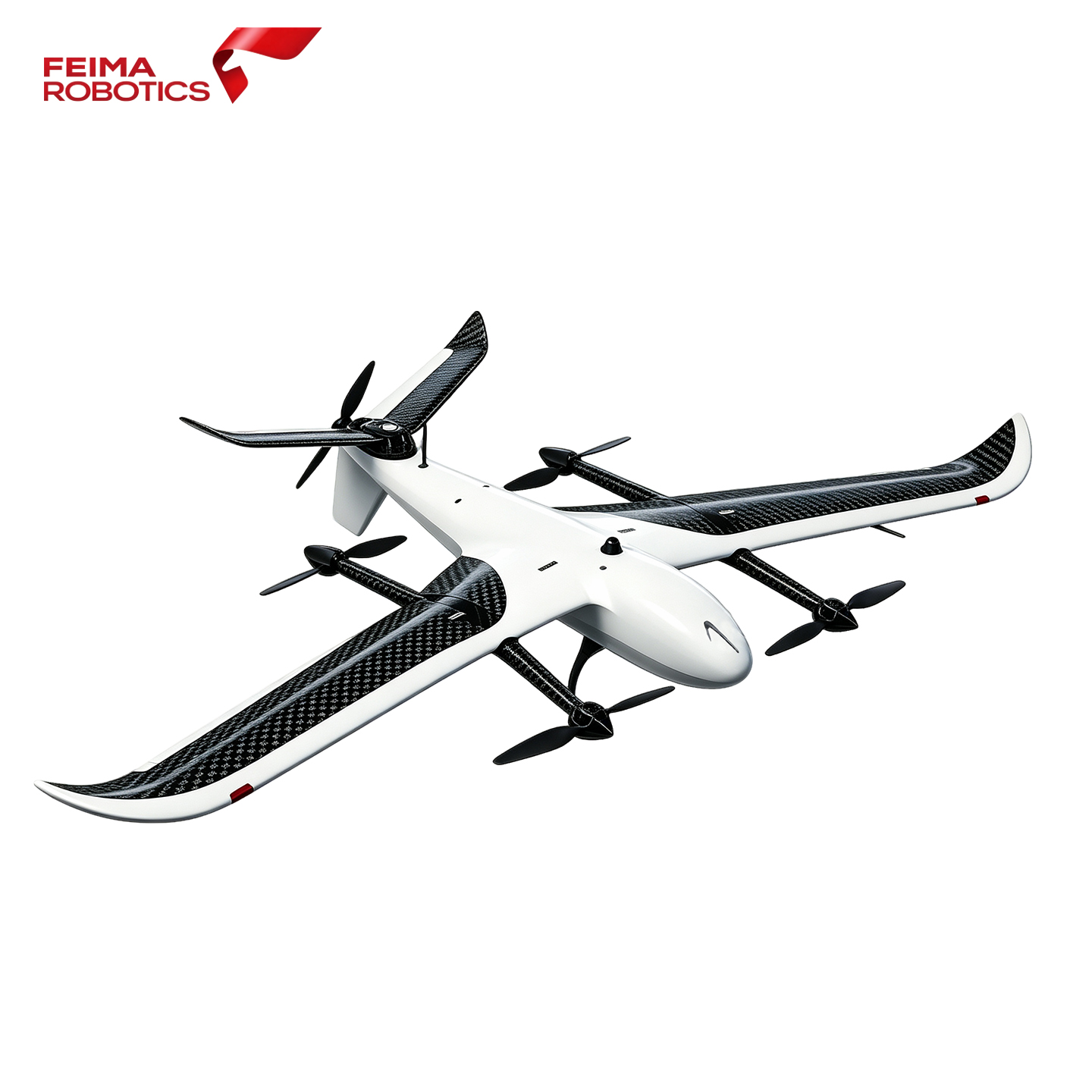

Feima V10R is a high‑performance all‑electric vertical take‑off and landing fixed‑wing UAV. Built with high‑modulus carbon‑fiber composite materials. Equipped with multi‑sensor redundant fusion system including 3‑unit IMU, dual pitot tubes, dual magnetometers, multi‑range altimeter sensors and high‑precision RTK/PPK GNSS. Supports quick‑swap payloads: EO/IR gimbal, oblique camera, LiDAR, multispectral module. Delivers centimeter‑level positioning, terrain‑following flight, target lock‑tracking and network relay flight. Widely deployed for power‑line & oil‑gas inspection, emergency mapping, forest fire prevention, coastal patrol and ecological monitoring.
240 min
Max Endurance
50 km
Control Range
7500 m
Service Ceiling
‑20℃~+55℃
Operating Temp
V10R Core Advantages
Up to 240min Endurance
240‑minute flight time with 1 kg payload; 150 min under full 6 kg payload for large‑area patrol and mapping.
6kg Interchangeable Payload
Tool‑free quick‑swap payload interface, compatible with EO/IR pod, aerial survey, oblique camera and LiDAR sensors.
Event Route Precision Inspection
Target circling, lock‑on tracking and zoom capture for suspicious spots, realize refined field investigation.
Networked Relay Flight
Seamless hand‑over of flight control between multiple ground terminals for ultra‑long linear corridor inspection.
Multi‑Sensor Redundant System
Triple‑IMU, dual pitot‑tube, dual magnetometer, dual optical radar + millimeter‑wave radar for safe flight.
Feima Distributed Cloud Service
Cloud live streaming, multi‑terminal sync view, local & cloud dual‑backup for air‑ground collaborative management.
Live Situational Awareness for Emergency & Patrol Missions

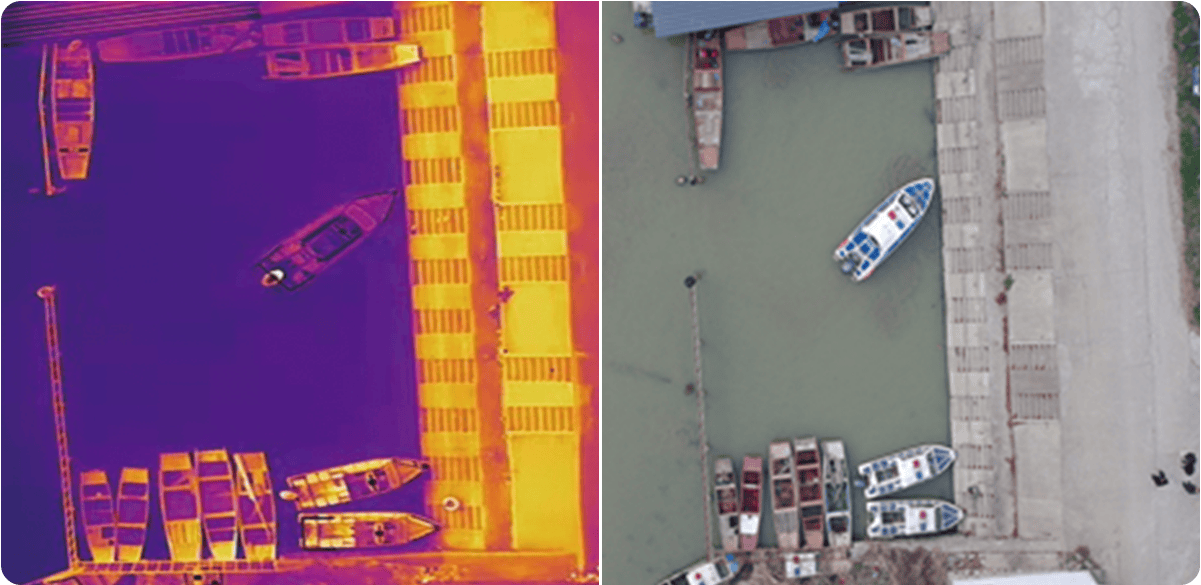

V10R supports high-definition real-time video transmission from the aerial pod to the ground control station and cloud platform. Operators can observe on-site conditions, track moving targets, and collect evidence during long-distance inspection, forest fire prevention, public security and emergency rescue missions.
- 30× optical zoom pod for clear target identification
- Low-latency HD video link for real-time surveillance
- AI target recognition and auto-follow capability
- Visible + thermal imaging for day and night missions
- Cloud live streaming and multi-terminal synchronized view
- Supports emergency command and on-site evidence collection
-
PRODUCT DESCRIPTION
-
Event‑based Inspection Route
During cruise missions, flexibly control aircraft and gimbal for target orbiting, lock‑on tracking and zoom shooting for suspicious areas or points of interest. Achieve fine‑grained inspection with clear target details.
-
Networked Relay Flight
For long‑distance corridor inspection, multi‑terminal networking enables seamless handover of flight control between ground stations. Flexible control meets personalized long‑range patrol requirements while guaranteeing operational efficiency.
-
Dual‑UAV Relay Solution
Ideal for natural disasters and emergency scenarios with blocked traffic and broken communication. The relay aircraft solves signal interruption caused by mountain occlusion, delivering real‑time video data of target areas for rapid emergency response.
-
Ground Fixed Relay Solution
Solve signal blockage from high‑rise buildings and hills during long‑range large‑area video inspection. Deploy relay base stations on commanding heights to realize stable and effective data transmission.

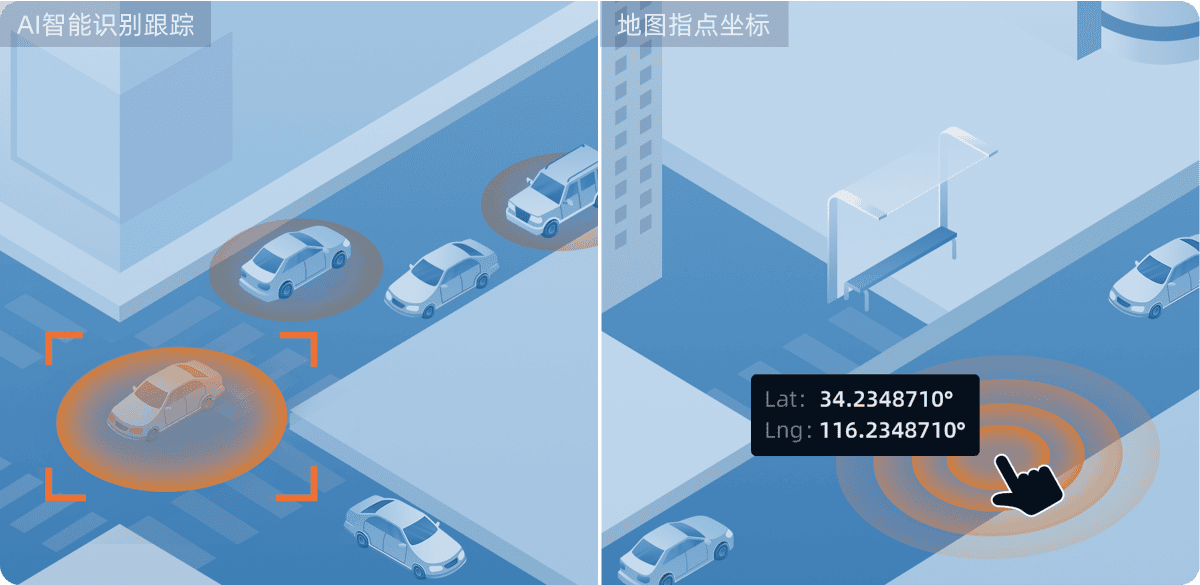

AI Target Lock
On‑board algorithm identifies moving vessels, vehicles for one‑click target locking.

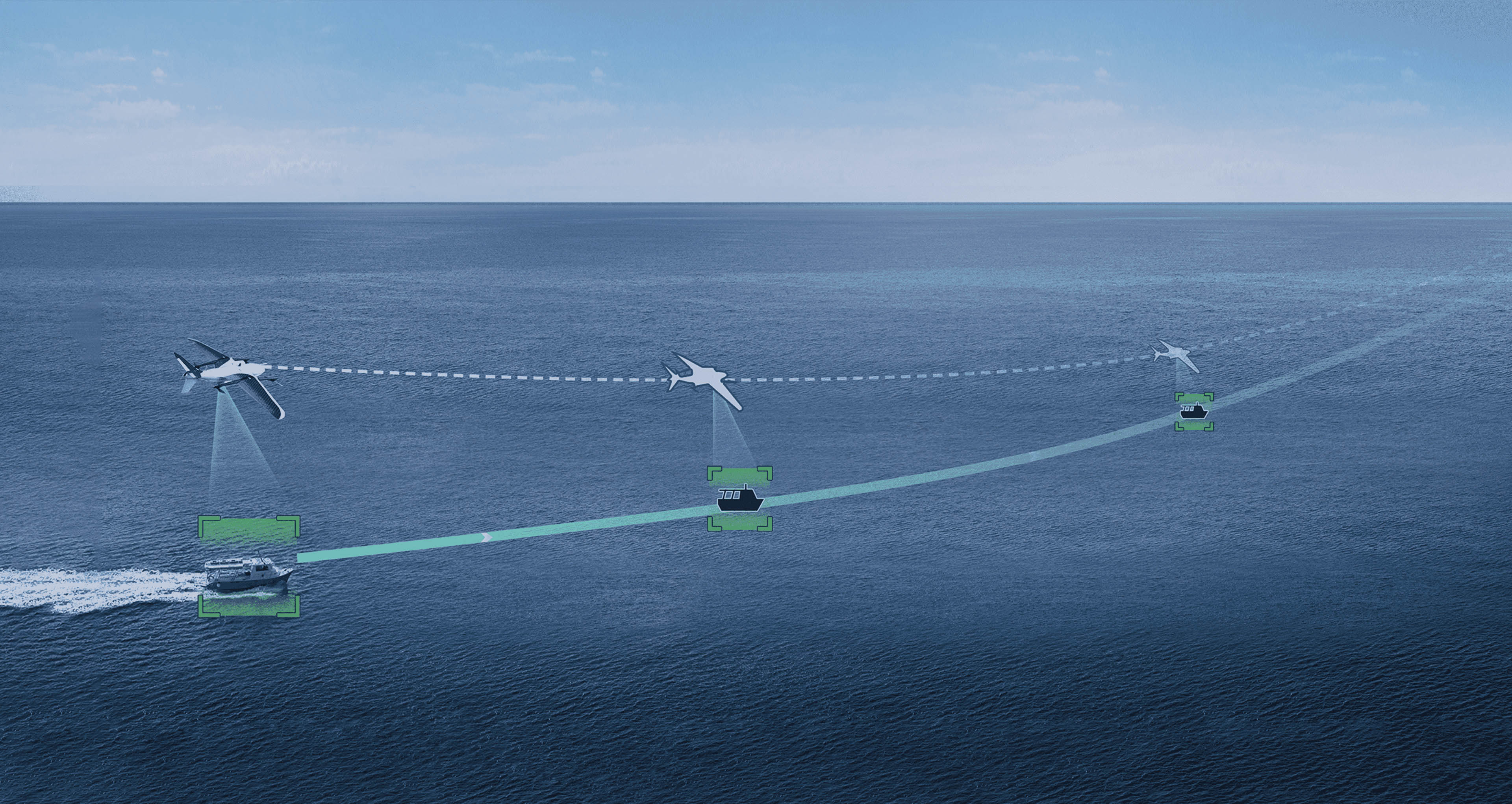

Automatic Target Following
UAV dynamically adjusts flight path to keep targets centered within camera view.
Auto‑Manual Switch
Seamless manual‑assist override for complex terrain and mission scenarios.
Patrol & Evidence Capture
Sync zoom, photo & video recording during tracking for maritime & security missions.
Modular Payload Compatibility
Tool-free quick replacement payloads, flexible switching between surveying, monitoring and detection missions.
Dual-Light EO/IR Pod
30x optical zoom, AI target tracking, infrared thermal imaging, suitable for patrol, fire prevention and security monitoring
Vertical Survey Camera
High-precision large-format aerial camera for orthophoto mapping and land resource survey
Oblique Photography Module
Five-lens full-angle data acquisition for urban and rural real-scene 3D modeling
LiDAR Detection System
High-density point cloud collection, penetrating vegetation occlusion for terrain and power corridor survey
Tri-Light Positioning Pod
Visible light + thermal imaging + laser ranging, precise target positioning and evidence collection
Hyperspectral Sensor
Water quality monitoring, mineral exploration and ecological environment analysis
Ground Station & Supporting Software
Feima UAV Mission Software
Professional one-stop software for route planning, real-time monitoring and aerial survey data post-processing.
- Intelligent automatic route planning for long corridor
- Terrain following & obstacle avoidance flight
- Real-time flight status and payload data monitoring
- One-click 3D modeling and orthophoto generation
- AI intelligent target identification and marking
Portable Intelligent Ground Station
Dedicated ground station for V10R, supporting long-range stable communication and all-weather mission control.
- Real-time HD video transmission & recording
- Remote mission modification and emergency control
- Offline map support for no-signal areas
- Full-process flight data storage and analysis
- Cloud synchronous data backup & remote viewing
Wide Range of Industry Applications
Main Technical Specifications
| Item | Parameter |
|---|---|
| Aircraft Type | Electric VTOL Fixed-Wing UAV |
| Max Takeoff Weight | 25 kg |
| Max Payload Weight | 6 kg |
| Max Endurance | 240 min (1kg payload) |
| Control Radius | 50km (extendable to 100km) |
| Wind Resistance Level | Level 6 |
| Practical Ceiling | 7500 m |
| Operating Temperature | -20℃ ~ +55℃ |
| Deployment Time | ≤ 10 minutes |
| Positioning Accuracy | Centimeter-level RTK/PPK |
| Takeoff & Landing Mode | Fully Automatic VTOL |
