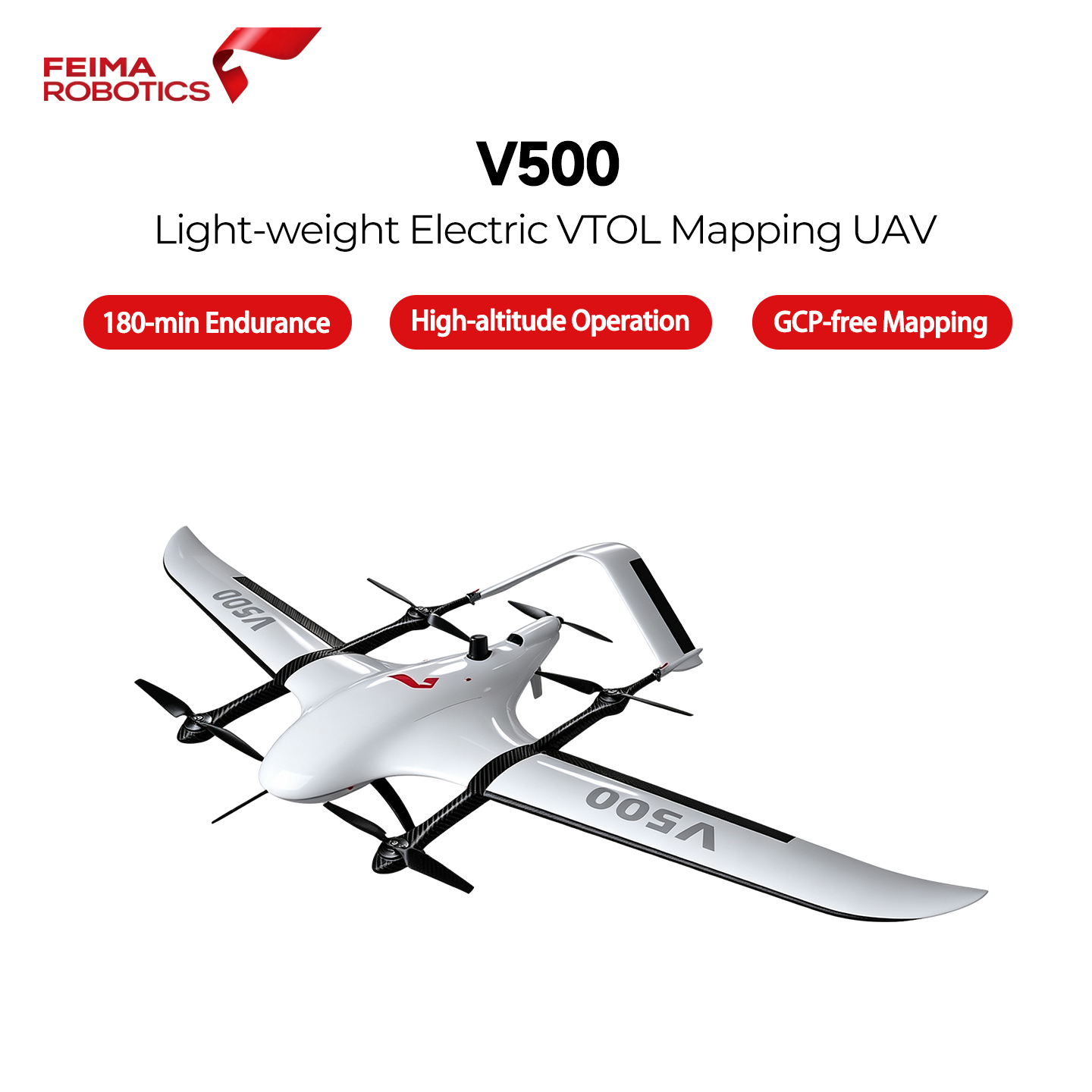

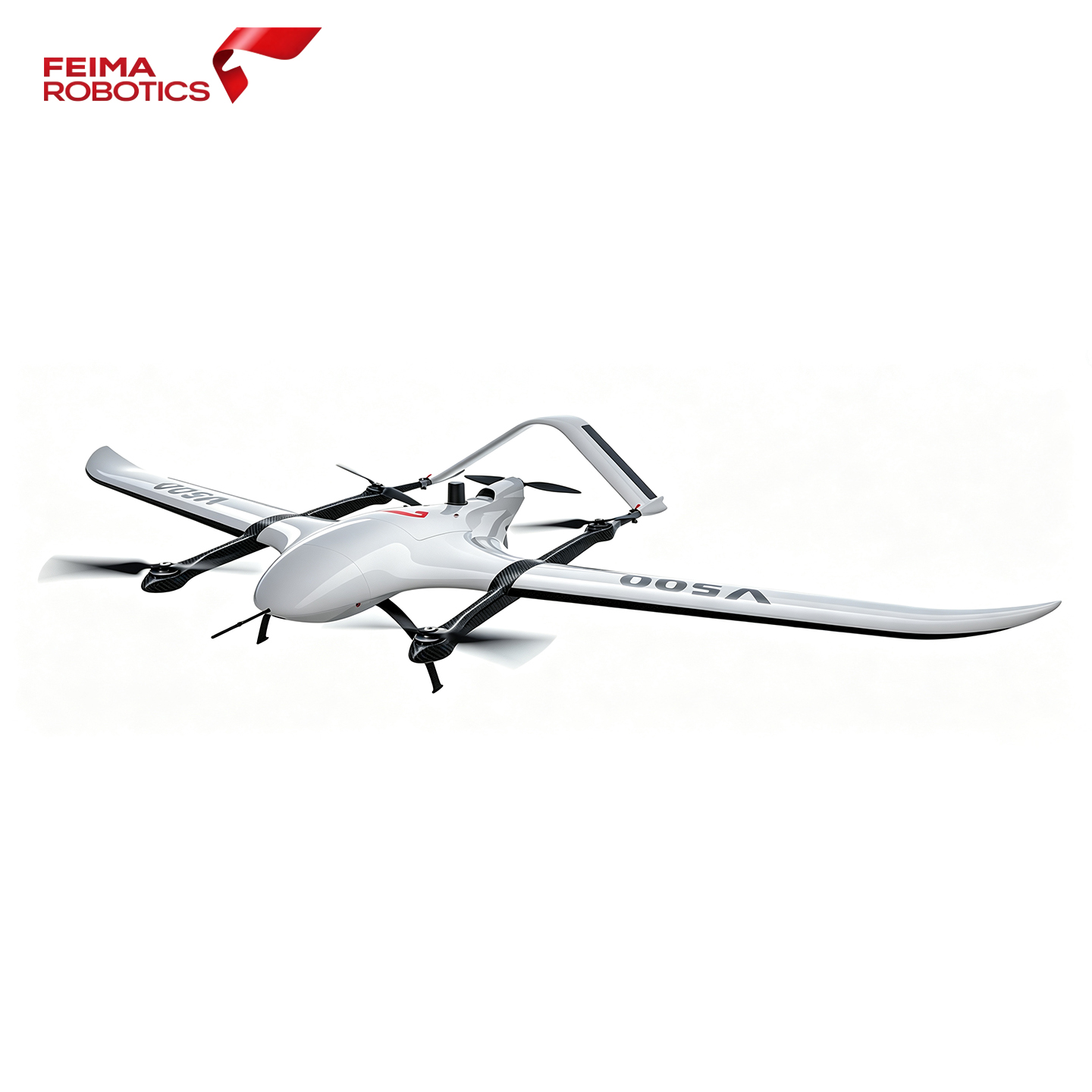

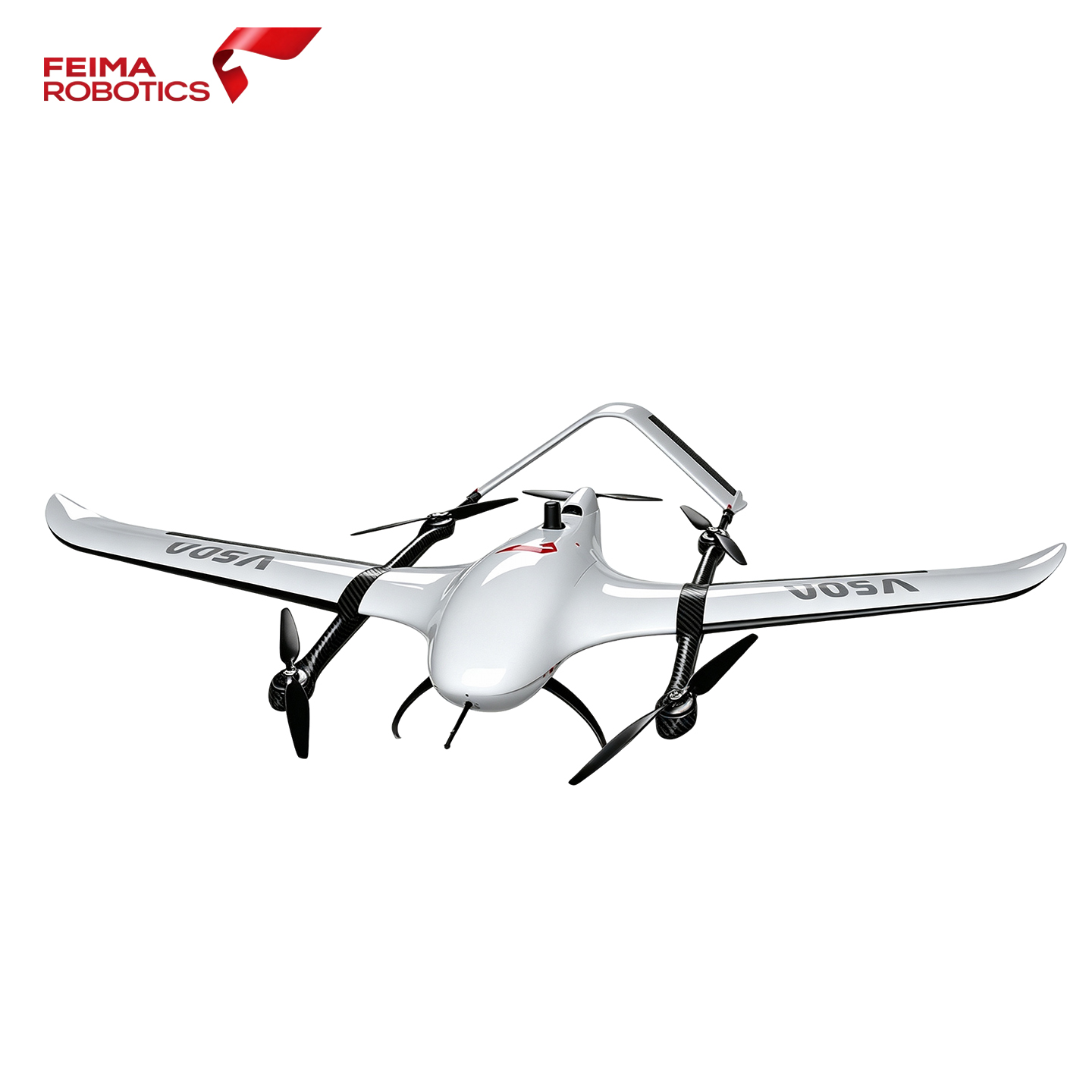

Feima V500 Portable VTOL UAV, Up To 180‑Min Flight Time Drone for Topographic Survey, 3D Modelling & Forestry Mapping
Survey, Remote Sensing, Patrol,
Emergency Command
Product Overview
Feima V500 is a lightweight, high‑precision all‑electric vertical take‑off and landing fixed‑wing UAV. Adopting blended‑wing Kevlar + PMI composite material structure, foldable and quick‑disassembly design for fast field deployment. Equipped with high‑precision RTK / PPK GNSS module, supporting GCP‑free 1:500 mapping and terrain‑following flight. Two factory configurations: Ortho version for orthophoto survey; Oblique version for city 3D reconstruction. Compatible with shared smart batteries of D2000S / D3000S. Excellent performance for plateau mapping, land cadastral survey, open‑pit mine monitoring, emergency aerial survey and ecological environment monitoring.
180min
Max Endurance(Ortho)
150km
Max Range(Ortho)
7000m
Service Ceiling
Level‑7
Wind Resistance
‑20℃~50℃
Operating Temp
0m~5000
Takeoff altitude
V500 Core Advantages
Ultra-Light 7.2kg Airframe
Kevlar+PMI composite material, only 7.2kg takeoff weight. Single-person carry and rapid deployment, no runway or catapult needed.
Up to 3h / 150km Long Endurance
Pure-electric VTOL fixed-wing delivers up to 3 hours flight time and 150km operational range — dramatically improve single-sortie coverage for large-area mapping.
GCP-Free High-Precision Mapping
High-precision differential GNSS with RTK/PPK fusion supports POS-assisted aerial triangulation, achieving 1:500 survey-grade mapping without ground control points.

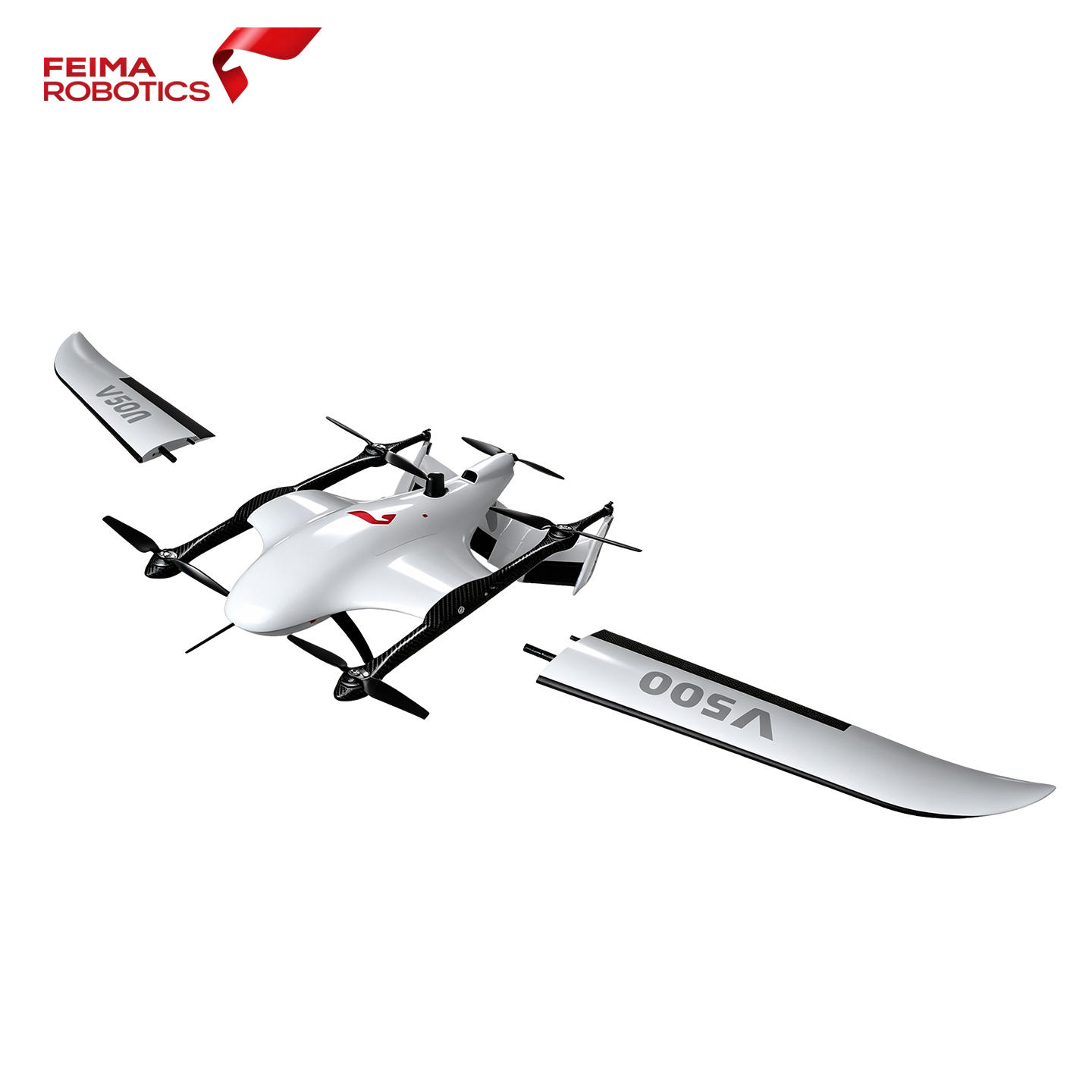

Modular Quick-Release & Foldable
Wing and tail quick-release + foldable design, effectively reduces assembly steps. Complete setup in minutes for efficient field operations.
7-Level Wind / 7000m Ceiling
Stable flight under level-7 wind, 7000m practical service ceiling, 5000m takeoff altitude — reliable for plateau, mountain and complex terrain missions.
Multi-Version Payload Config
Orthophoto, oblique (120MP), stereo mapping and medium-format versions available — one platform adapts to diverse survey deliverable requirements.
Airframe Structure & Aerodynamic Design
Kevlar+PMI Composite Material
High-modulus Kevlar fiber combined with PMI foam sandwich structure, high strength-to-weight ratio, impact-resistant and durable for field operations.
Wing-Body Fusion Aerodynamics
Optimized blended wing-body design reduces cruise drag, improves lift-to-drag ratio, enabling long endurance with pure-electric power.
Quick-Release & Foldable Design
Wing and tail adopt tool-free quick-release structure, combined with foldable vertical stabilizer, minimizing transport volume and assembly time.
VTOL + Fixed-Wing Hybrid
Vertical takeoff and landing like a multirotor, efficient fixed-wing cruise for long-range missions — no runway needed, adaptable to confined takeoff sites.
-
PRODUCT DESCRIPTION
-

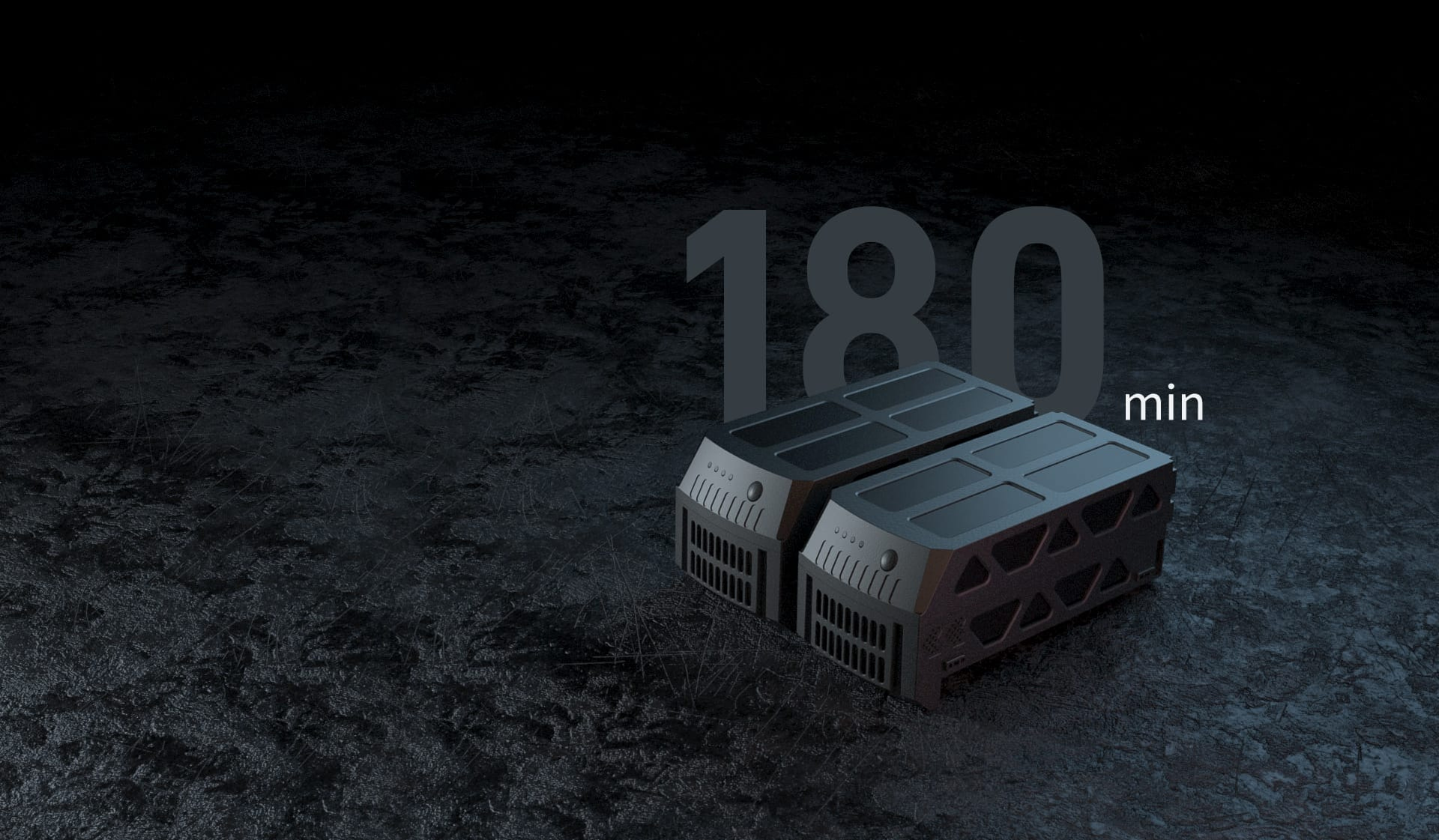

Ultra-long endurance

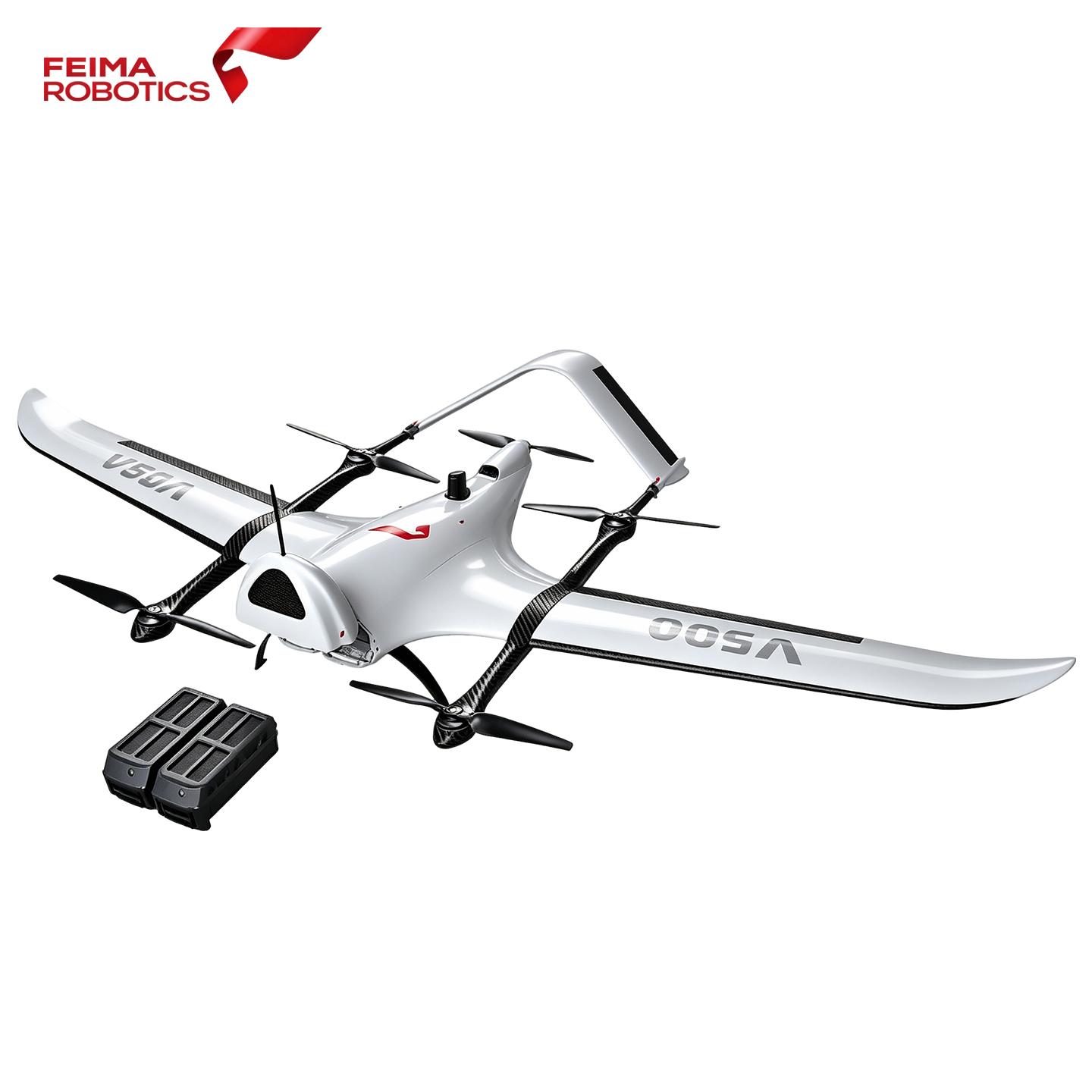

Up to 180 min flight time, max 150 km mission range. Propeller‑yawing design reduces cruise drag; compatible with D2000S / D3000S smart batteries.
-
High‑altitude Robust Performance
V500 can take off at an altitude of up to 5000 meters and operate at altitudes up to 7000 meters, with a working absolute altitude of up to 3000 meters. It has superior ceiling operation capability and does not require changing the propellers.
-
Precise terrain following flight
Combined with the software of UAVManager Professional Edition, the V500 can achieve accurate terrain following flight, improving the image acquisition resolution and ensuring the consistency of image resolution.
-
RTK‑PPK GCP‑free Survey
Built‑in high‑precision differential GNSS, support RTK & PPK fusion solution. POS‑aerial triangulation realizes large‑area mapping without ground control points.

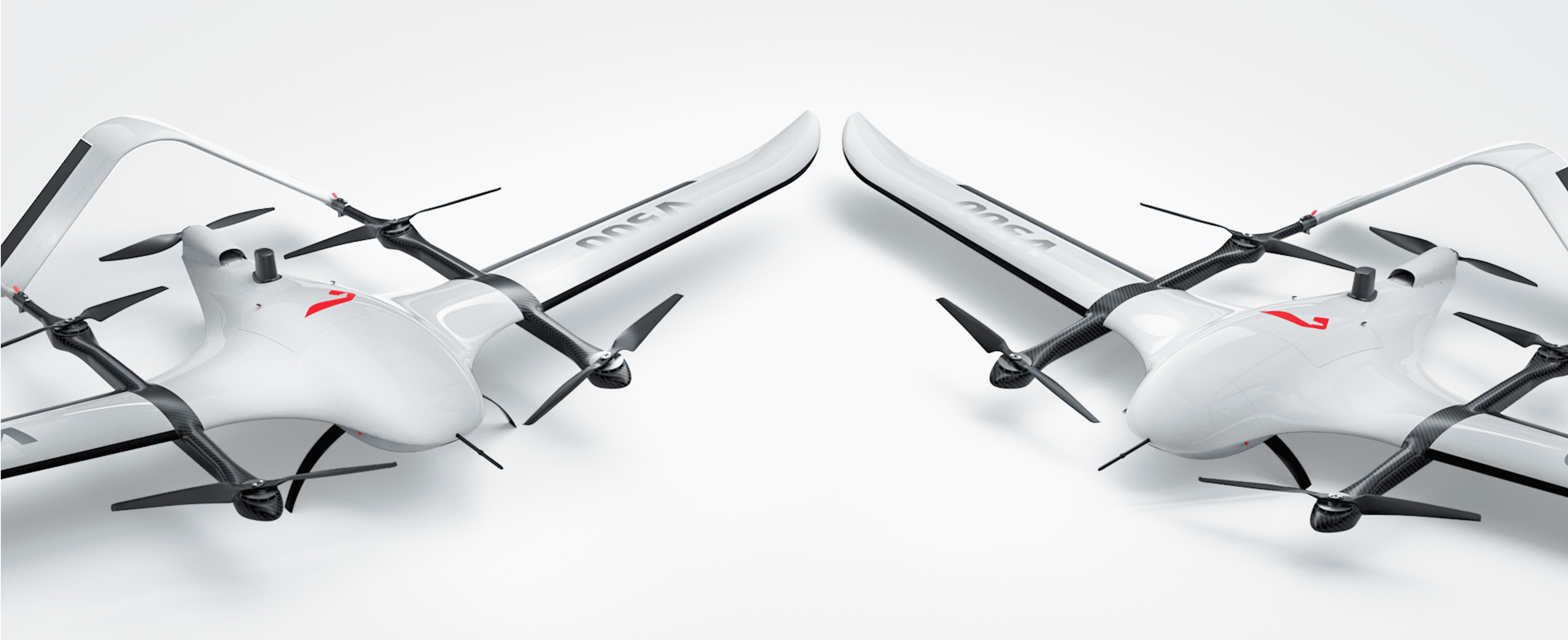

Two Versions for Different Demands
Nadir Version
Take-off Weight: 6.8kg
Flight Time: 3h
Mission Range: 150km
Oblique Version
Take-off Weight: 7.2kg
Flight Time: 2.5h
Mission Range: 120km
Multi-Version Payload Configurations
V500 supports four standard payload versions, selectable according to project deliverable requirements. All versions share the same airframe, flight control and software ecosystem.
Orthophoto Version
High-efficiency large-area orthophoto mapping, DOM/DEM/DSM production, land survey and engineering mapping.
Oblique Version
Five-lens oblique camera, total 120MP, for realistic 3D city modeling, BIM and urban renewal applications.
Stereo Mapping Version
Dual-camera stereo photogrammetry for professional stereo mapping, contour extraction and engineering design support.
Medium-Format Version
Medium-format high-resolution sensor for ultra-high-precision cultural heritage, fine mapping and low-altitude detailed survey.
Optional payload extensions: D-OP5000, D-OP3000 oblique modules, thermal infrared remote sensing module.
Supporting Software — UAV Manager Professional
UAV Manager Professional (Survey Edition)
Comprehensive desktop software covering precision 3D route planning, real-time flight monitoring, data preprocessing and spatial data production. Optimized for V500 VTOL fixed-wing long-endurance missions.
SmartPlan 3D Route Planning
Terrain-based precision route design, VTOL transition point auto-calculation, large-area block segmentation.
Real-Time 3D Monitoring
3D flight trajectory visualization, comprehensive status monitoring, VTOL mode transition display.
SmartCheck Quality Report
One-click in-situ flight quality verification, coverage/overlap/attitude analysis, GPU-accelerated 5-10min report.

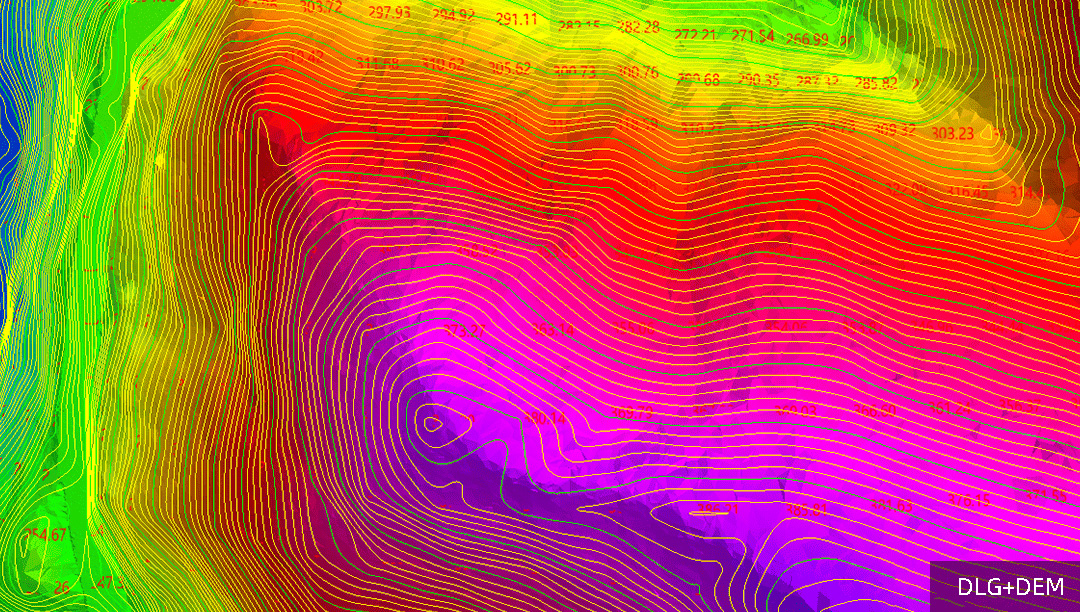

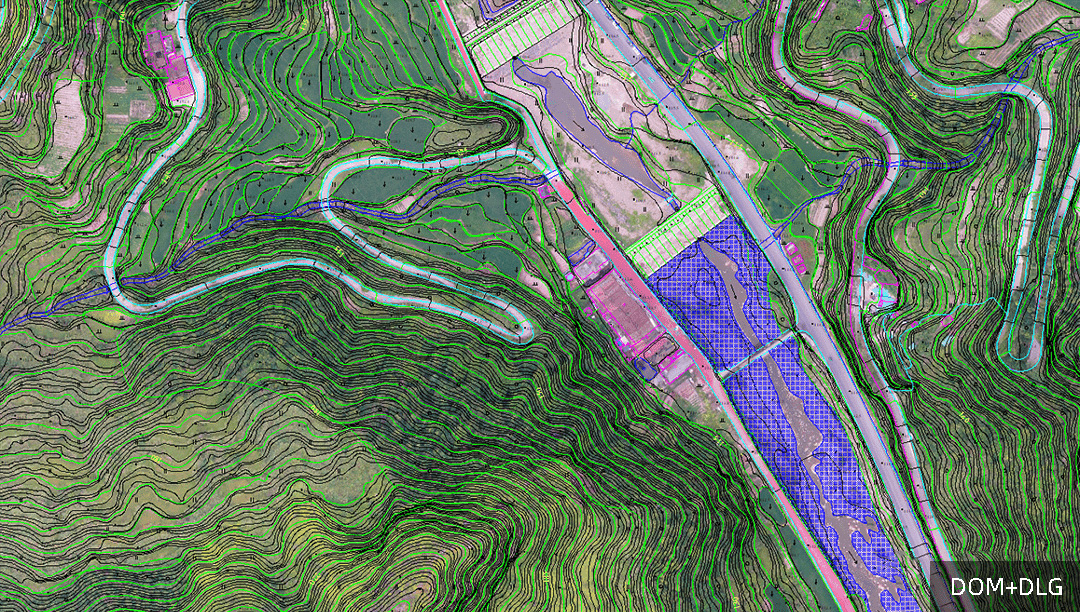

SmartMap Data Processing
One-click aerial triangulation, DOM/DEM/DSM/TDOM/3D model output, RTK/PPK fusion, GCP-free support.
Stereo Mapping Export
One-click stereo mapping data export, contour generation, engineering design data delivery.
FeimaMonitor Cloud
Flight data cloud storage, multi-terminal sharing, remote diagnostics, firmware OTA update.
Wide Range of Industry Applications
Flight Performance Specifications
| Item | Parameter |
|---|---|
| Aircraft Type | Pure-electric VTOL fixed-wing |
| Airframe Material | Kevlar + PMI composite |
| Wingspan × Length × Height | 2296 × 1280 × 257 mm (unfolded) |
| Takeoff Weight (Ortho) | 6.8 kg |
| Takeoff Weight (Oblique) | 7.2 kg |
| Max Endurance (Ortho) | 3 h |
| Max Endurance (Oblique) | 2.5 h |
| Operational Range (Ortho) | 150 km |
| Operational Range (Oblique) | 120 km |
| Cruise Speed | 17 m/s |
| Max Flight Speed | 26 m/s |
| Max Takeoff Altitude | 5,000 m ASL |
| Practical Service Ceiling | 7,000 m ASL |
| Wind Resistance | Level 7 |
| Telemetry Range | Up to 25 km |
| Takeoff & Landing | Fully automatic vertical takeoff and landing |
| Positioning | Differential GNSS, RTK/PPK fusion |
| Mapping Capability | 1:500 GCP-free large-scale mapping |
