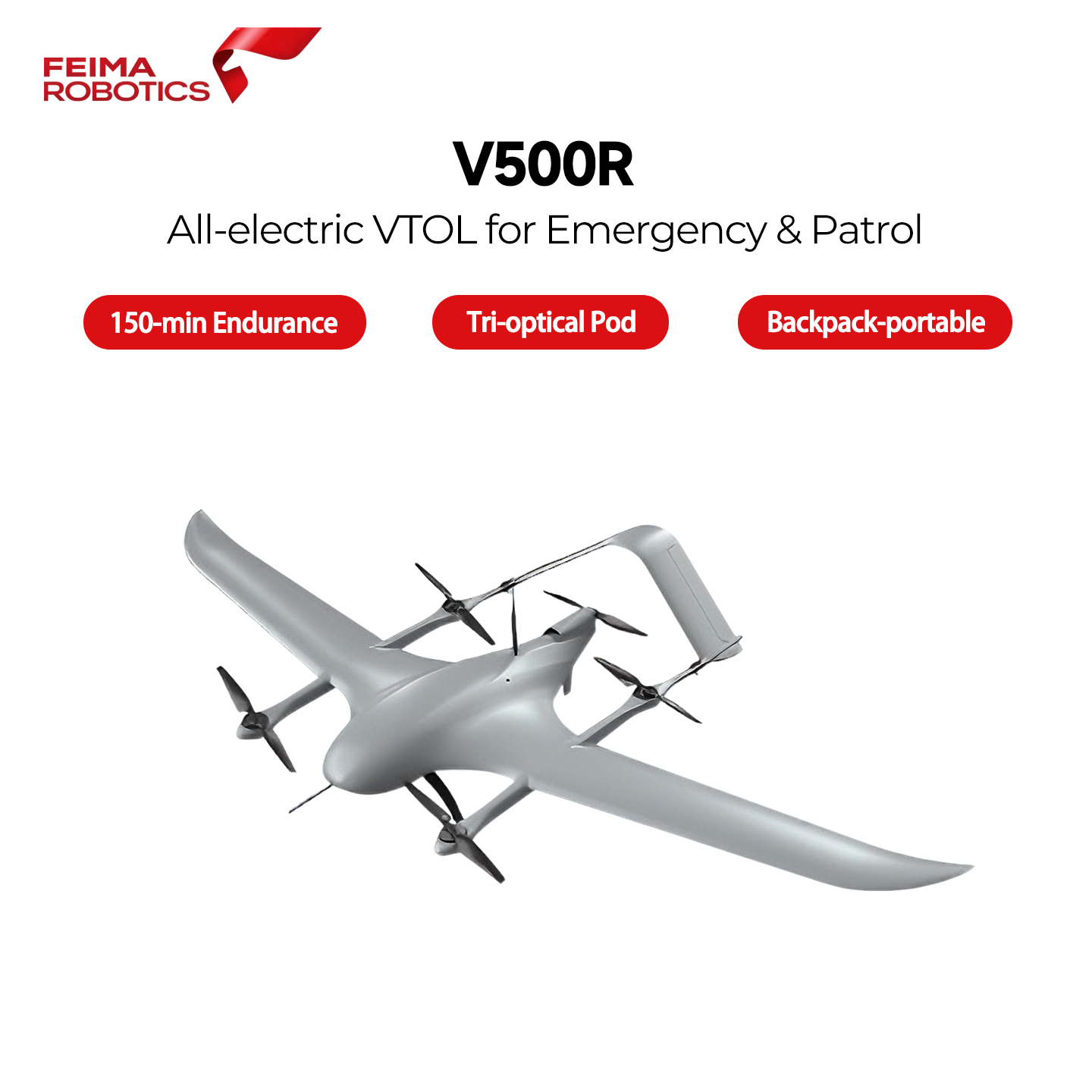

Feima V500R Portable VTOL Fixed‑Wing Drone, 150‑Min Endurance with EO‑IR Pod for Emergency Rescue & Pipeline Inspection
security, inspection system
Product Overview

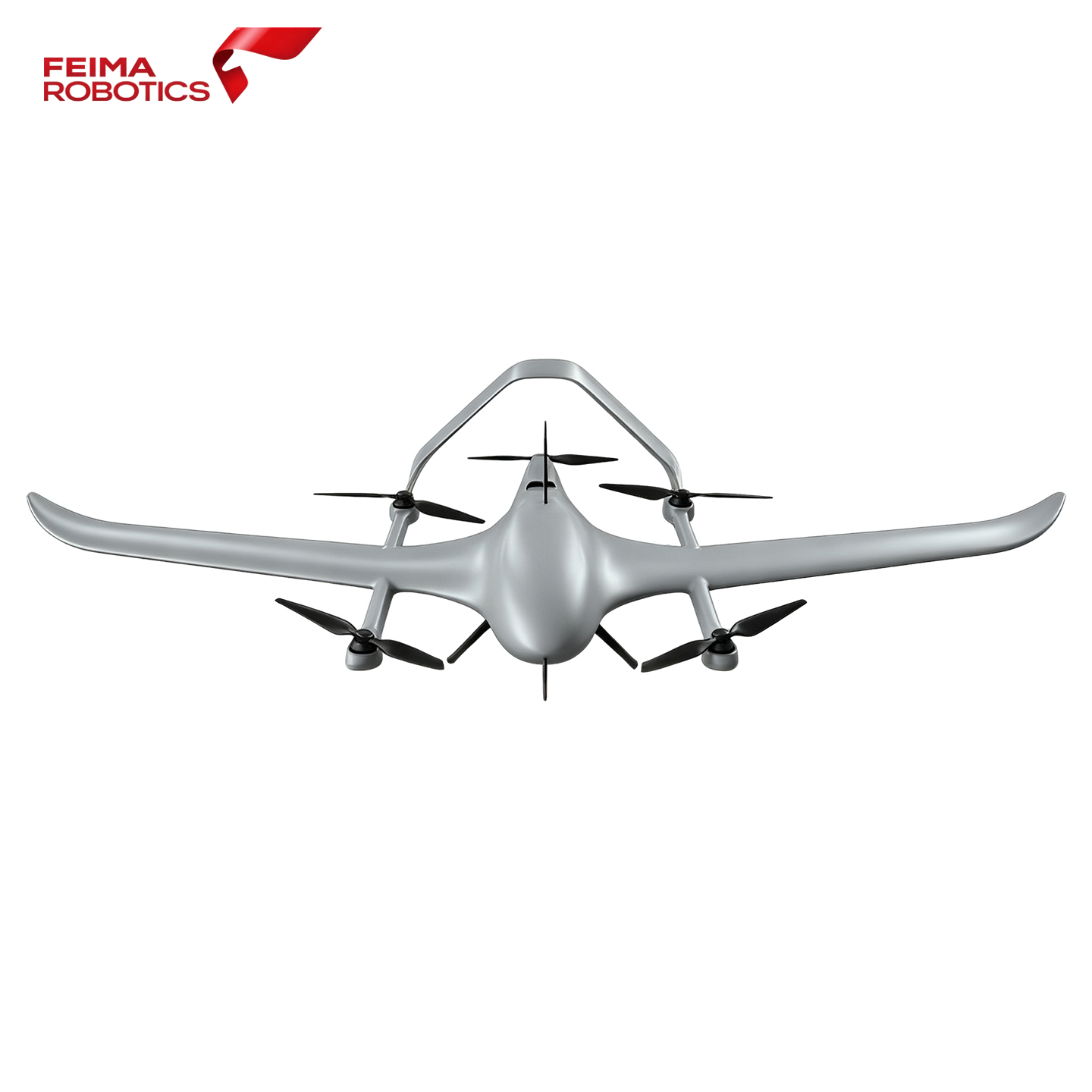

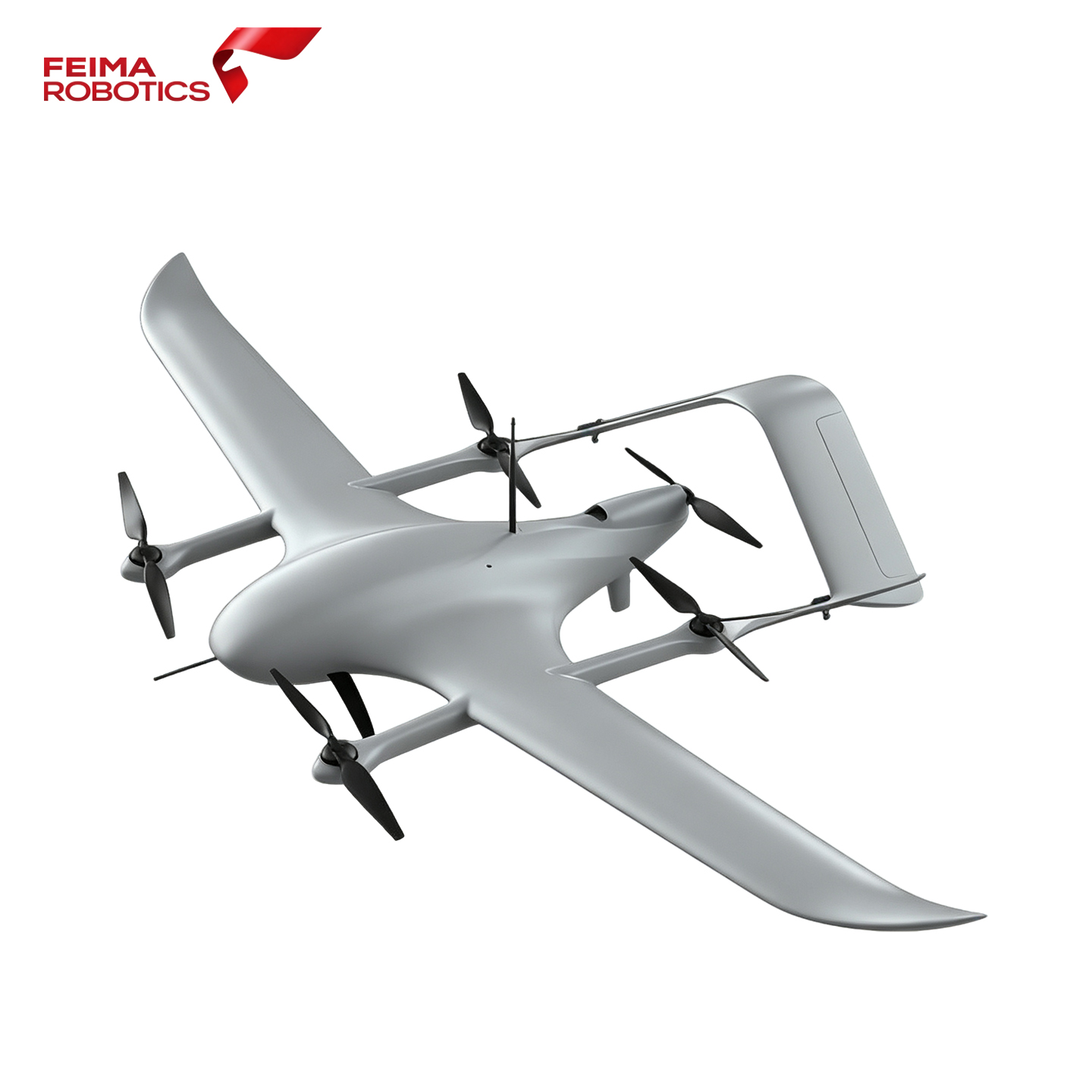

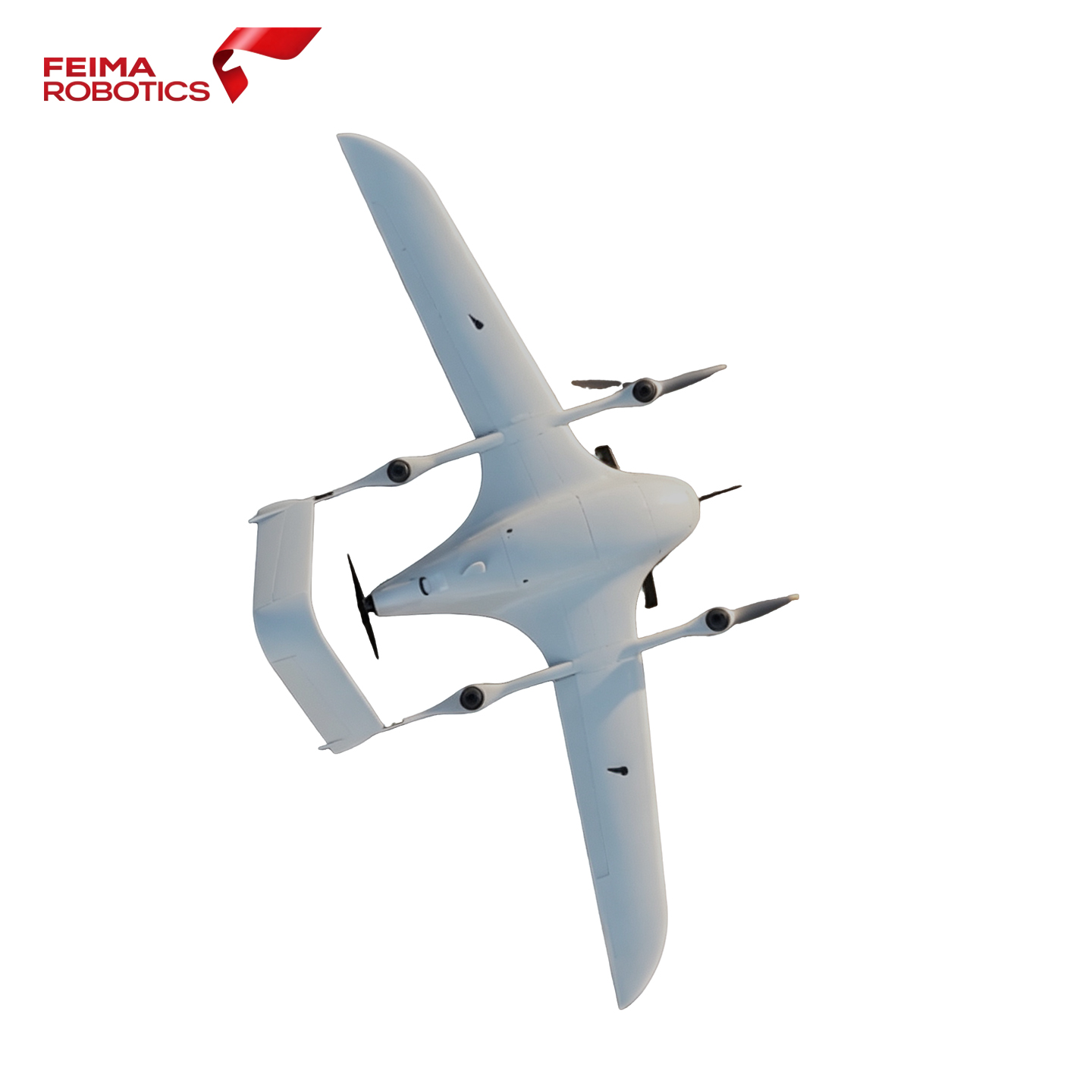

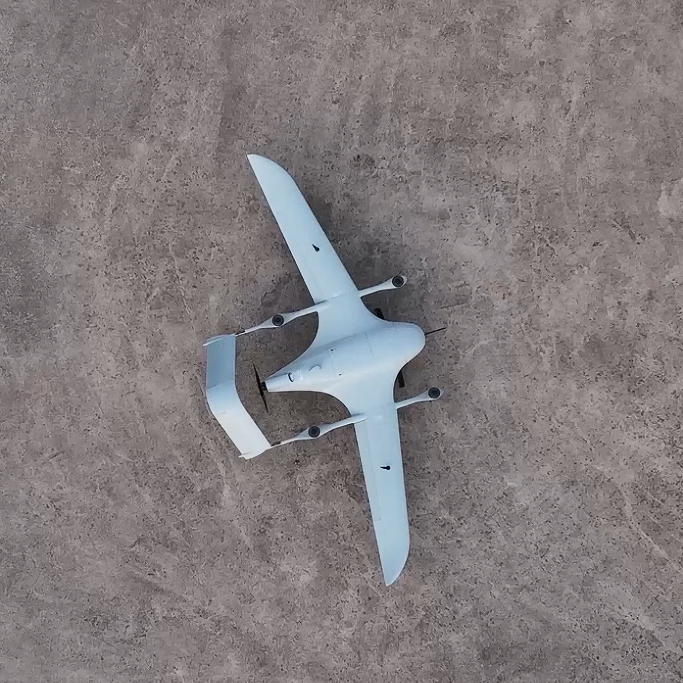

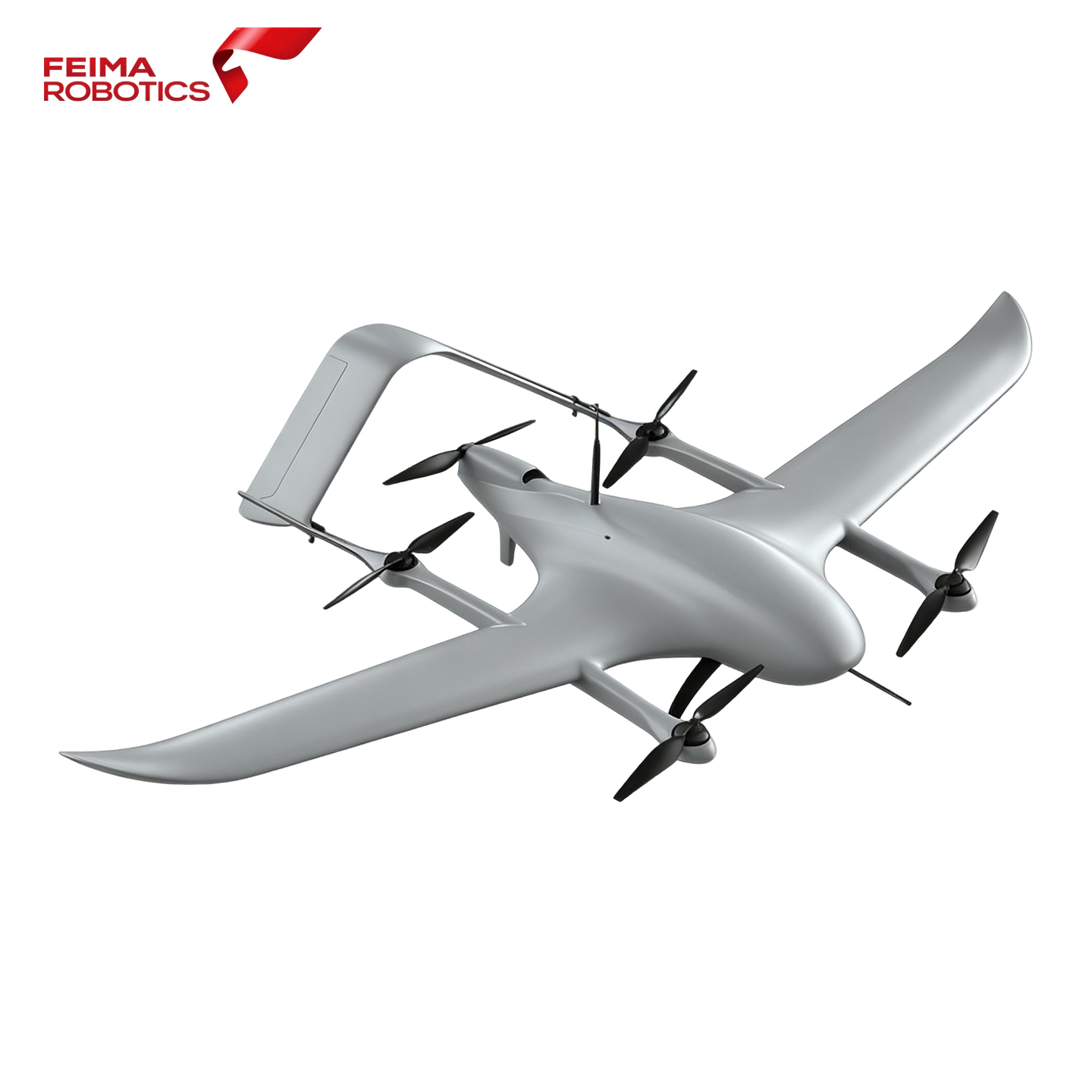

Feima V500R is a lightweight all‑electric vertical take‑off and landing fixed‑wing UAV specially built for emergency response, public security and long‑range corridor inspection. Adopting Kevlar + PMI blended‑wing composite material with foldable quick‑disassembly airframe. Standard triple‑light gimbal (visible light, infrared thermal, laser rangefinder), supports real‑time video streaming, real‑time ortho‑mosaic, airborne relay networking and A‑take‑off B‑landing mission hand‑over. Optional 5G module for remote cross‑region control. Compatible with D2000S / D3000S smart batteries. Widely used in forest fire prevention, oil‑gas & power‑line inspection, emergency rescue, coastal & mountain area surveillance.
150 min
Max Endurance
150 km
Max Flight Range
4000 m
Maximum takeoff altitude
5000 m
Service Ceiling
30 km
Video Link Range
Force 7
Wind resistance
V500R Core Advantages
Ultra-Light 7.8kg, Single-Person Deploy
Kevlar+PMI composite airframe, only 7.8kg. Modular quick-release and foldable design, backpack ground station + handheld terminal — one operator can carry, assemble and launch the entire system.
2.5h / 150km Long-Endurance Patrol
Feathering propeller design reduces cruise drag; reusable D2000S/D3000S smart batteries deliver 2.5h flight time and 150km range — extended aerial surveillance coverage per sortie.
Tri-Optical Gimbal, 10x Hybrid Zoom
Standard tri-optical gimbal with EO (10x optical + 3x digital zoom), IR thermal and laser rangefinder. 3-axis mechanical stabilization for steady, detailed imagery in any condition.
30km HD Video Transmission
Ultra-low latency HD video link up to 30km, real-time streaming of gimbal footage to ground station for immediate situational awareness and decision-making.
Dual Ground + Airborne Relay
Supports both ground base station relay and airborne relay. V500R can operate as a mission aircraft or a relay node, solving communication blockage in mountainous terrain and extending coverage radius.
A-to-B Landing Mission Relay
With optional GCS100 ground station, deploy one station at point A and one at point B for takeoff-landing relay. Ideal for long-distance river, pipeline and corridor inspection — reduces cost and improves efficiency.
Airframe Structure & Aerodynamic Design
Kevlar+PMI Composite Material
High-modulus Kevlar fiber combined with PMI foam sandwich structure, high strength-to-weight ratio, impact-resistant and durable for field operations.
Feathering Propeller Design
In cruise mode, vertical lift rotors feather to minimize aerodynamic drag, significantly improving endurance and range compared to conventional fixed-rotor VTOL designs.
Quick-Release & Foldable Design
Wing and tail adopt tool-free quick-release structure, combined with foldable vertical stabilizer, minimizing transport volume and assembly time for rapid deployment.
VTOL + Fixed-Wing Hybrid
Vertical takeoff and landing like a multirotor, efficient fixed-wing cruise for long-range surveillance — no runway needed, adaptable to confined takeoff sites in emergency scenarios.
-
PRODUCT DESCRIPTION
-
Lightweight Folding Portable Platform
Kevlar‑PMI blended composite blended‑wing airframe, MTOW 7.8 kg. Modular quick‑fold structure, one‑person fast deployment and easy field transit with backpack‑style ground station.
-
Long‑endurance & Wide Mission Coverage
Up to 150 min flight time, max 150 km mission range. Feather‑fold propeller reduces cruise drag; compatible with D2000S / D3000S smart batteries.
-

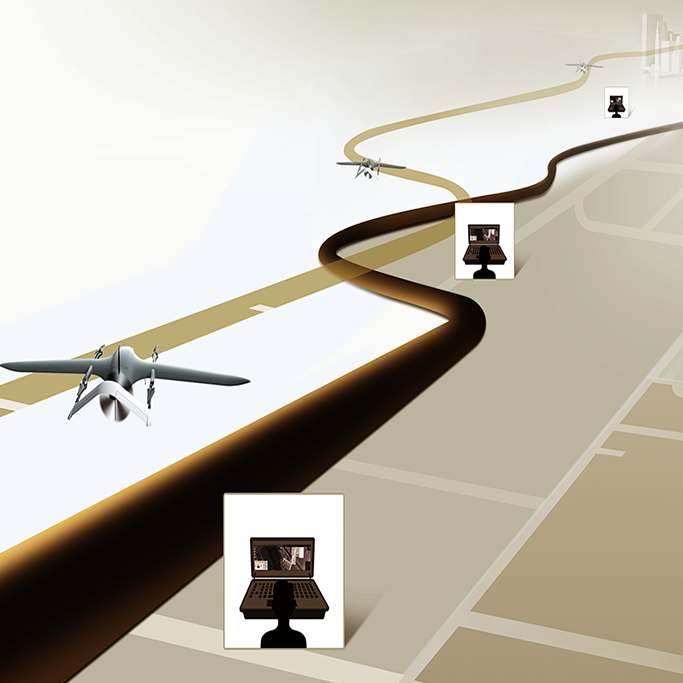

A‑to‑B Networked Relay Flight
Seamless mission hand‑over between multiple ground stations. Realize long‑distance corridor inspection with take‑off from site A and landing at site B.
-
Optional 5G Remote Operation
Optional 5G module enables remote mission assignment, flight control and video push. Break distance restriction for cross‑region remote supervision.
Communication & Relay System
Ground Base Station Relay
Airborne Relay Mode
30km HD Video & Data Link
Optional 5G Module
Tri-Optical Gimbal Payload System
V500R comes standard with a tri-optical gimbal integrating visible-light camera, infrared thermal imager and laser rangefinder, mounted on a 3-axis mechanical stabilization platform. Delivers steady, high-resolution imagery and precise target geolocation for day and night surveillance operations.
10x Optical + 3x Digital Zoom EO Camera
High-definition visible-light camera with 10x optical zoom and 3x digital zoom (13x hybrid total), enabling close-up identification of distant targets while maintaining wide-area situational awareness.
Infrared Thermal Imaging
Integrated IR thermal imager for night operations, low-visibility conditions and heat-source detection. Ideal for search and rescue, perimeter security and fire hotspot identification.

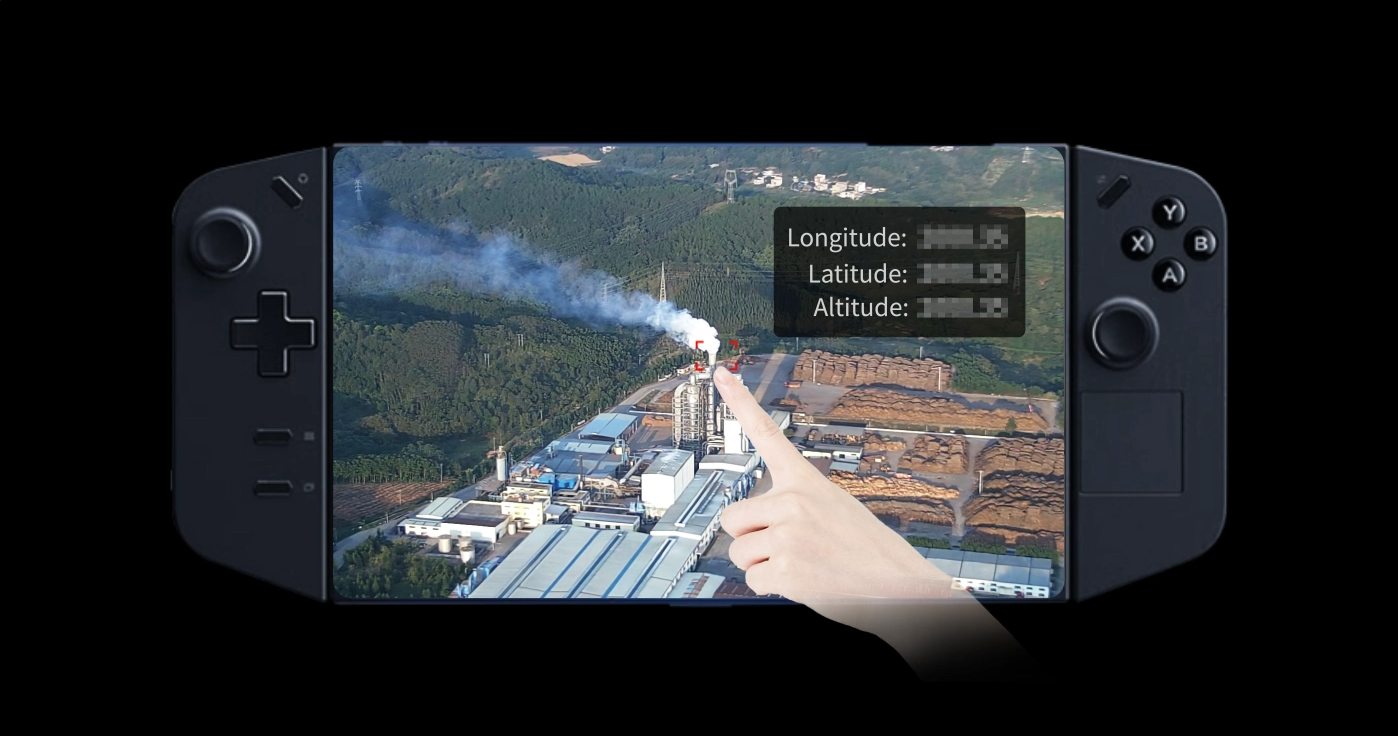

Laser Rangefinder & Target Geolocation
Built-in laser rangefinder provides precise distance measurement to targets. Combined with aircraft POS data, enables accurate target coordinate calculation and point-and-click geolocation.
3-Axis Mechanical Stabilization
High-precision 3-axis gimbal stabilizes imagery against aircraft vibration, wind and maneuvering, ensuring smooth, jitter-free video for effective monitoring and evidence recording.
Ground Station & Control System
V500R comes standard with a backpack portable ground station and handheld control terminal, with optional GCS100 comprehensive ground station for advanced mission relay operations.
Backpack Portable Ground Station
Innovatively designed backpack-style ground station for maximum portability. Single operator can carry the complete system to remote locations.
- Integrated display and control unit
- Real-time video display & telemetry
- Mission planning & waypoint editing
- Gimbal control & target tracking
- Long-range data link antenna
- Field-replaceable battery power
Handheld Control Terminal
Compact handheld controller for intuitive aircraft and gimbal operation, ideal for close-range monitoring and manual intervention.
- Ergonomic joystick controls
- Real-time status display
- One-key takeoff / landing / return
- Gimbal pitch & zoom control
- Emergency stop & safety override
- Wireless connection to ground station
GCS100 Comprehensive Ground Station
Advanced fixed ground station for A-to-B landing mission relay and long-distance corridor inspection operations.
- Supports A-takeoff / B-landing relay mode
- Long-distance corridor inspection workflow
- Enhanced data link & antenna system
- Multi-aircraft coordination capability
- Extended mission planning tools
- Remote technical diagnostics support
Wide Range of Industry Applications
Flight Performance Specifications
| Item | Parameter |
|---|---|
| Aircraft Type | Pure-electric VTOL fixed-wing |
| Airframe Material | Kevlar + PMI composite |
| Wingspan × Length × Height | 2296 × 1280 × 257 mm (unfolded) |
| Max Takeoff Weight | 7.8 kg |
| Max Endurance | 150 min (2.5 h) |
| Max Operational Range | 150 km |
| Cruise Speed | 18 m/s |
| Max Takeoff Altitude | 4,000 m ASL |
| Service Ceiling | 5,000 m ASL |
| Wind Resistance | Level 7 |
| HD Video Transmission Range | Up to 30 km |
| Takeoff & Landing | Fully automatic vertical takeoff and landing |
| Battery Compatibility | Reusable D2000S / D3000S smart batteries |
| Propeller Design | Feathering propeller (cruise drag reduction) |
| Relay Capability | Ground relay + airborne relay dual mode |
| A-to-B Landing Relay | Supported (with optional GCS100) |
| Optional Communication | 5G module (beyond line-of-sight) |
