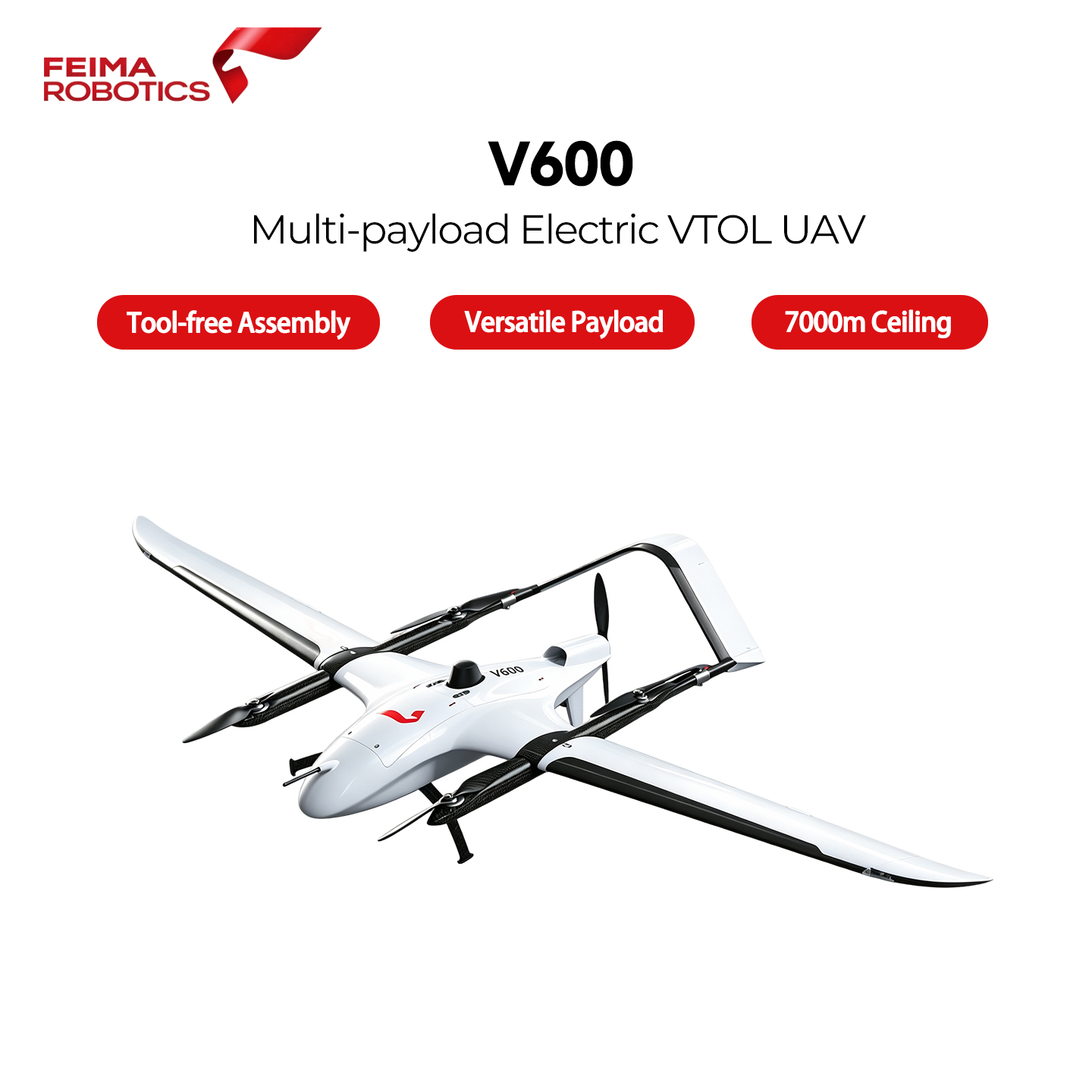

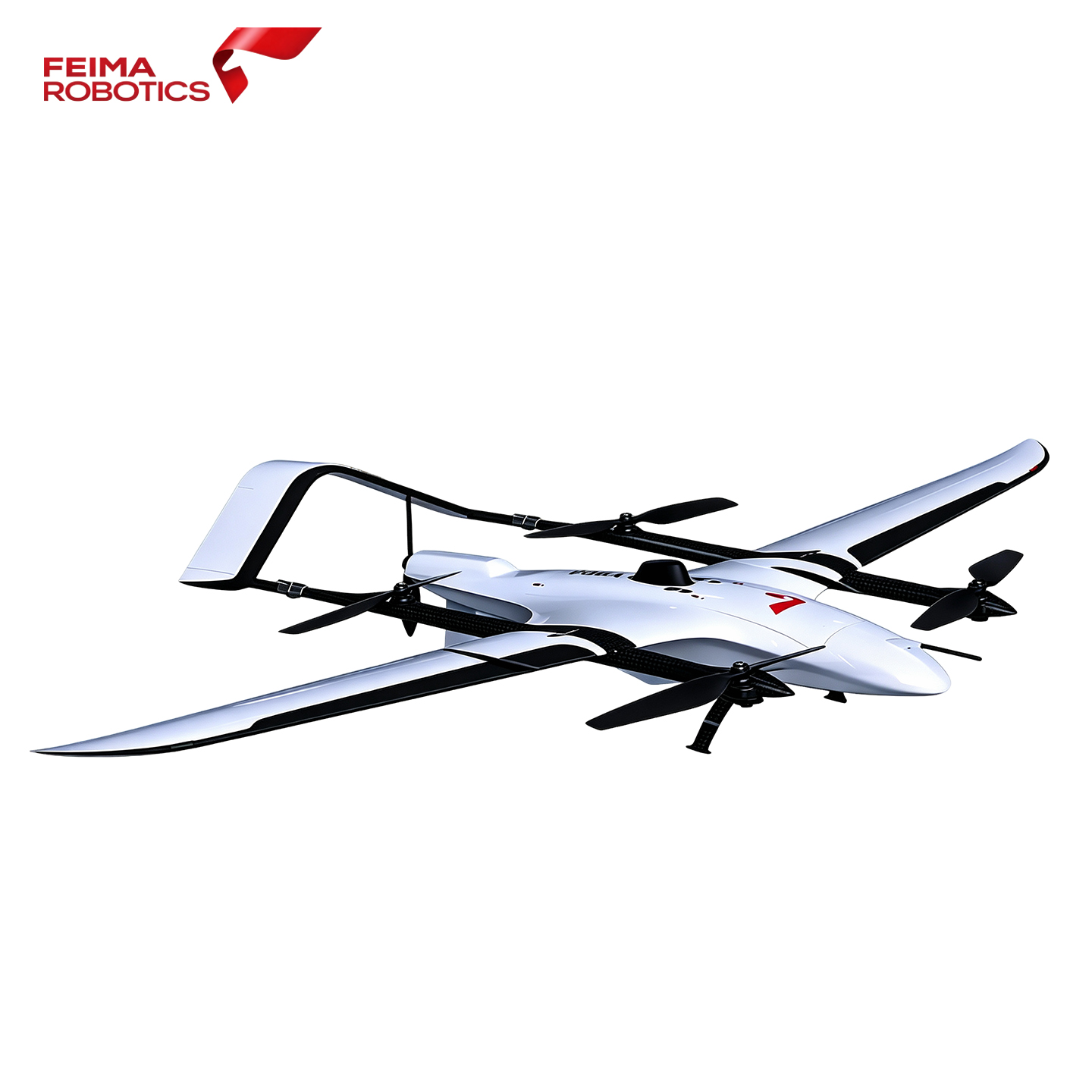

Feima V600 Tool‑Free VTOL Fixed‑Wing Drone, 180‑Min Endurance GCP‑Free Mapping UAV for Topographic Survey & 3D Modelling
V600
Feima Intelligent Aerial Survey,
Remote Sensing,Inspection System
Product Overview
Feima V600 is a newly‑developed all‑electric VTOL fixed‑wing UAV for high‑precision aerial mapping, remote sensing and inspection missions. Adopting tool‑free quick‑disassembly airframe design for rapid field deployment. It supports cross‑compatibility with Feima existing payloads including ortho camera, oblique camera, LiDAR and multispectral sensors. Equipped with high‑precision RTK‑PPK GNSS module, realizes GCP‑free 1:500 large‑scale mapping. No propeller replacement required for 4000 m take‑off altitude, service ceiling reaches 7000 m AMSL. Excellent performance for plateau mapping, city 3D reconstruction, open‑pit mine monitoring, geological hazard survey and ecological remote sensing projects.
180 min
Max Endurance
226 km
Max Flight Range
7000 m
Service Ceiling
Level‑7
Wind Resistance
V600 Core Advantages
180min / 226km Ultra-Long Range
Large-capacity high-density smart battery delivers 180 minutes maximum endurance and 226km maximum range — enabling large-area, high-efficiency data collection with fewer sorties and lower operational cost.
Tool-Free Multi-Payload Quick-Swap
Open payload bay with tool-free quick-release mechanism. Compatible with Feima's full range of surveying payloads — orthophoto, oblique, LiDAR and multispectral. One platform, multiple missions, cross-platform payload reuse.
1:500 GCP-Free High-Precision Mapping
Standard high-precision differential GNSS board supports PPK, RTK and fusion positioning. Integrated POS-assisted aerial triangulation enables 1:500 survey-grade mapping without ground control points.

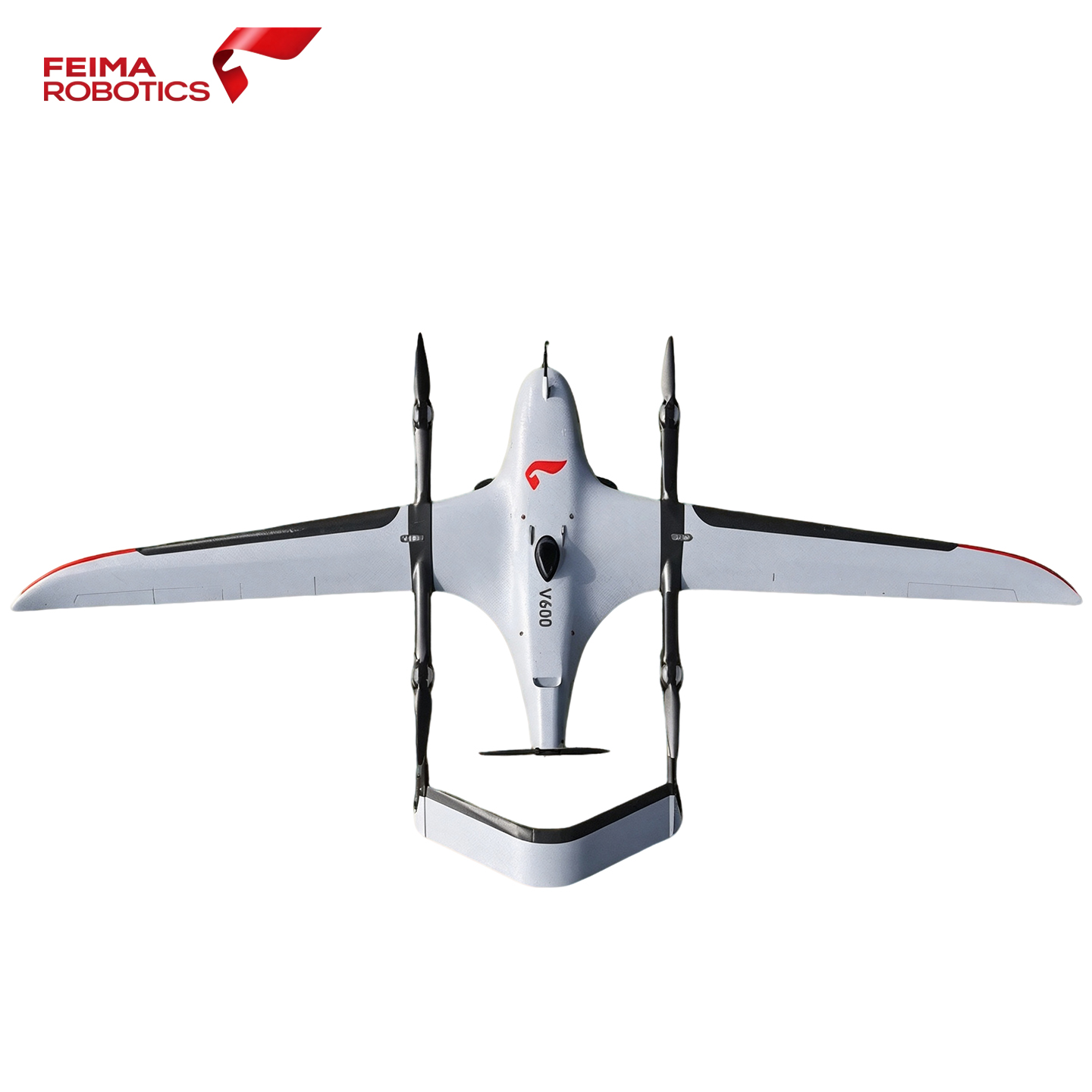

Carbon Fiber + Kevlar Airframe
High-strength carbon fiber + Kevlar composite construction, 2.728m wingspan. Optimized aerodynamic design with powerful propulsion for stable flight in complex environments and strong wind conditions.
All-Environment Adaptability
No propeller change needed for 0-4000m takeoff altitude, 7000m service ceiling. Supports -20℃ to 50℃ wide temperature range, level-7 wind resistance — reliable for plateau, mountain, alpine and high-temperature operations.
Precision Terrain Following
Supports precision terrain-following flight, automatically adjusting flight altitude based on terrain elevation. Enables high-resolution data collection in large-elevation-difference scenarios such as mountains, hills and river valleys.

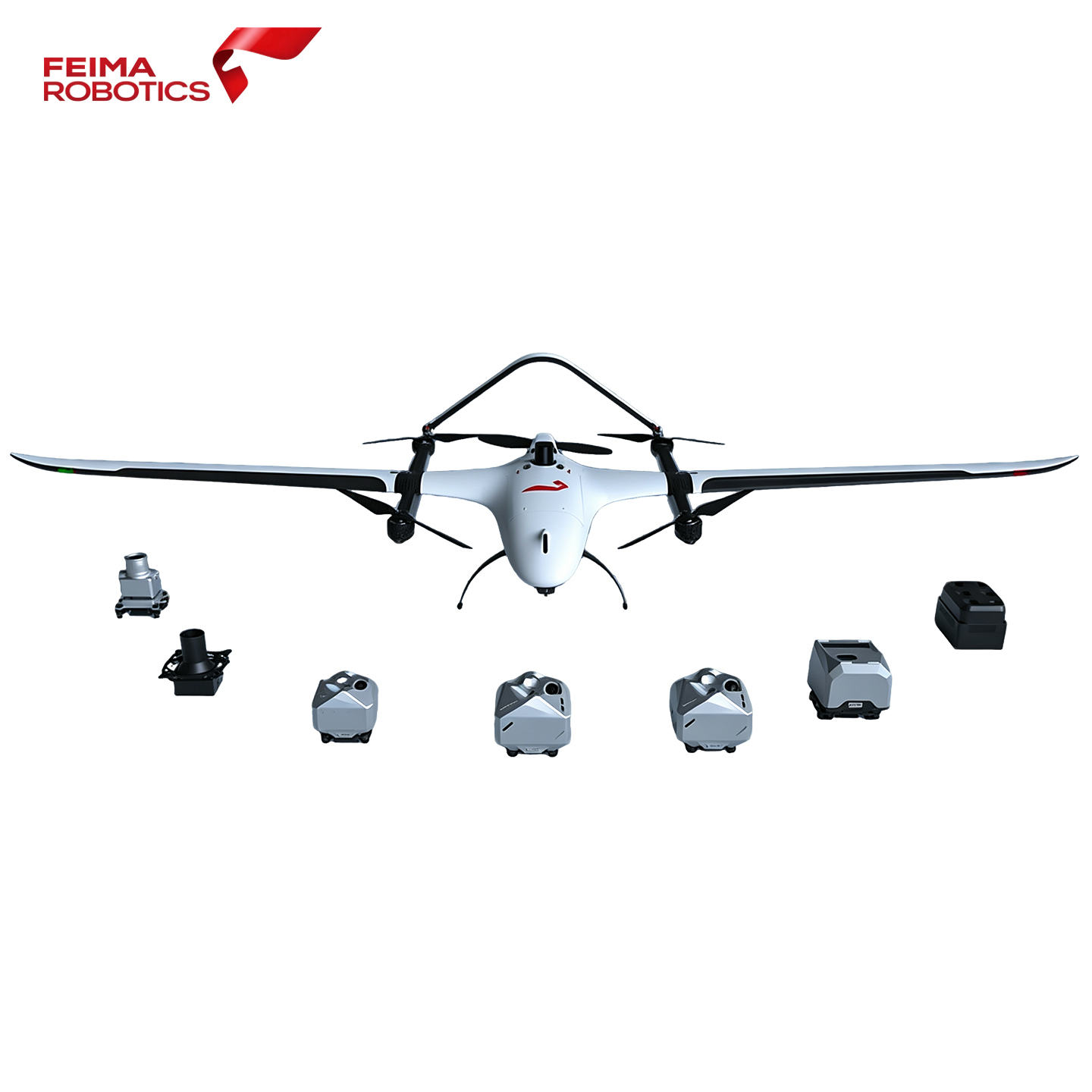

Multi-Payload Quick-Swap System
V600 features an open payload bay with tool-free quick-release mechanism, compatible with Feima's full range of mass-produced remote sensing and surveying payloads. Achieve cross-platform payload reuse and maximize application value with lower investment.
Aerial Survey Modules

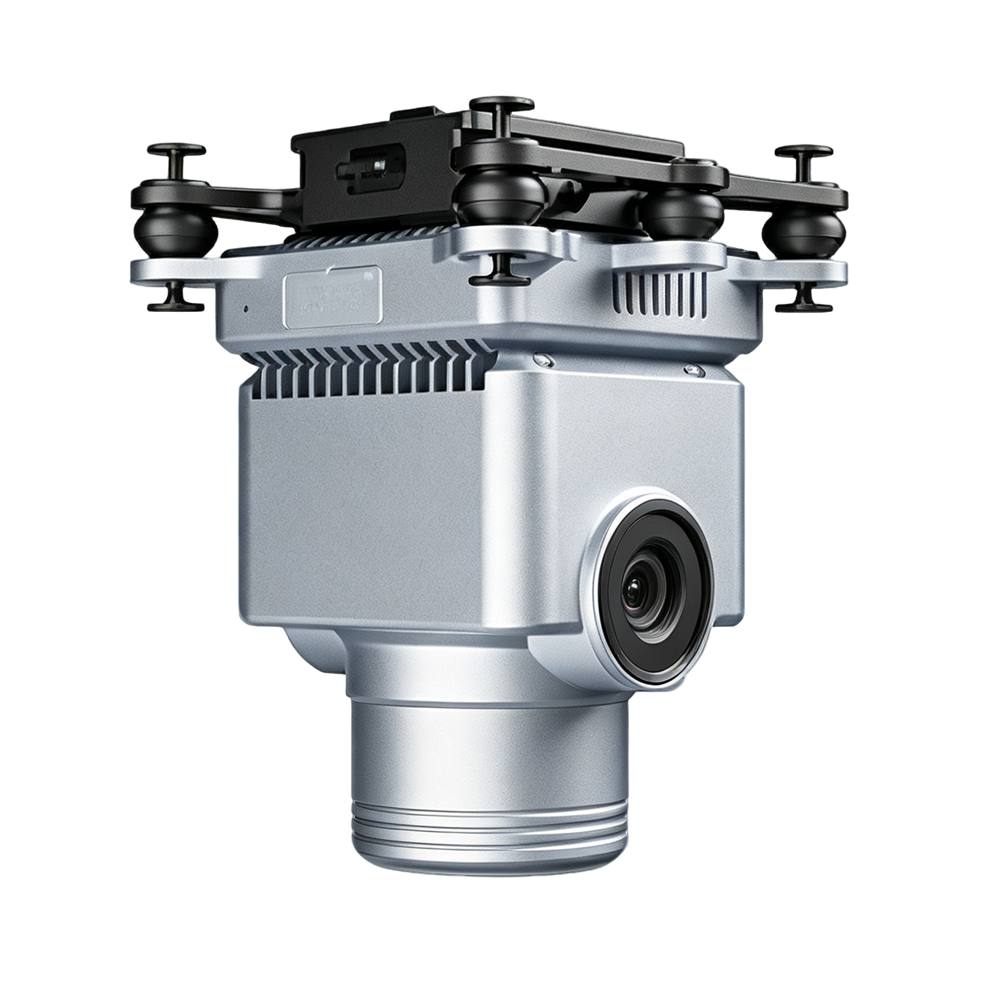

High-Res Orthophoto Camera
Large-sensor high-resolution mapping camera for precision orthophoto, DEM and DSM production.

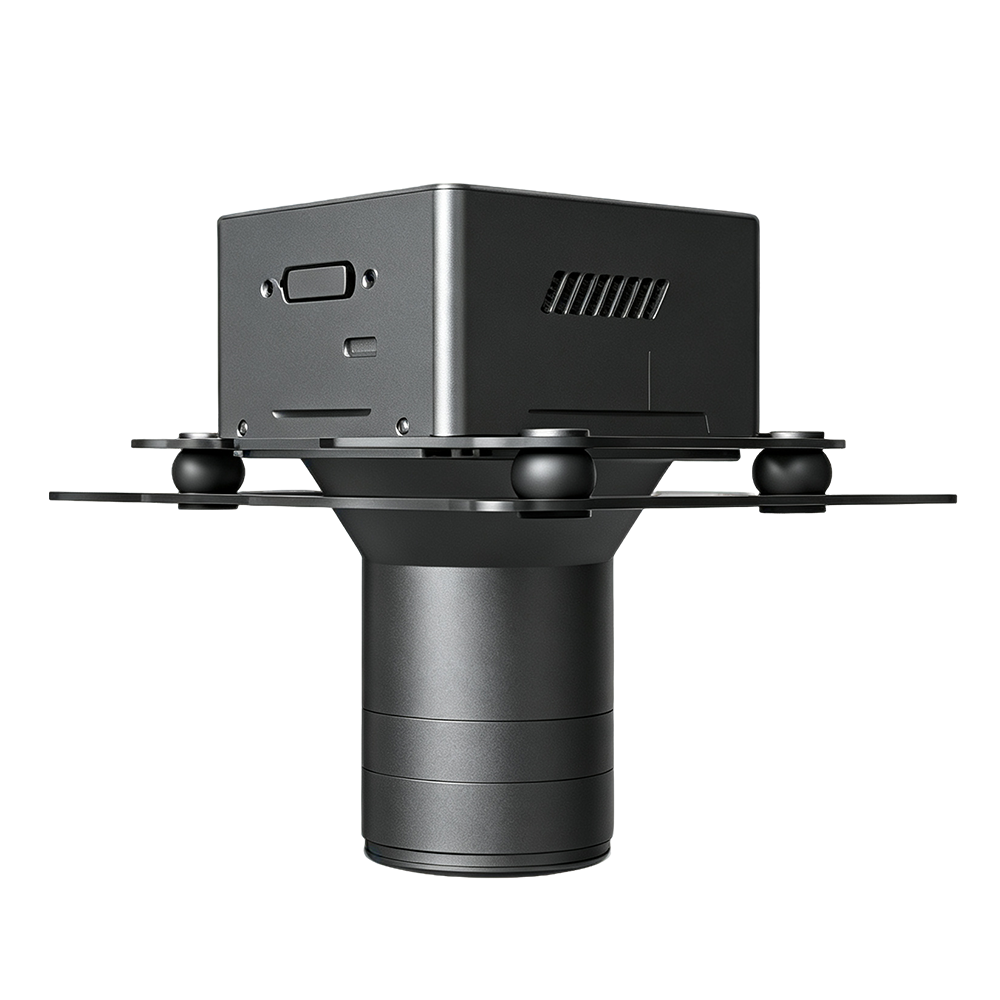

Compact Mapping Camera
Lightweight mapping camera for efficient large-area orthophoto data collection.
Oblique Photography Modules

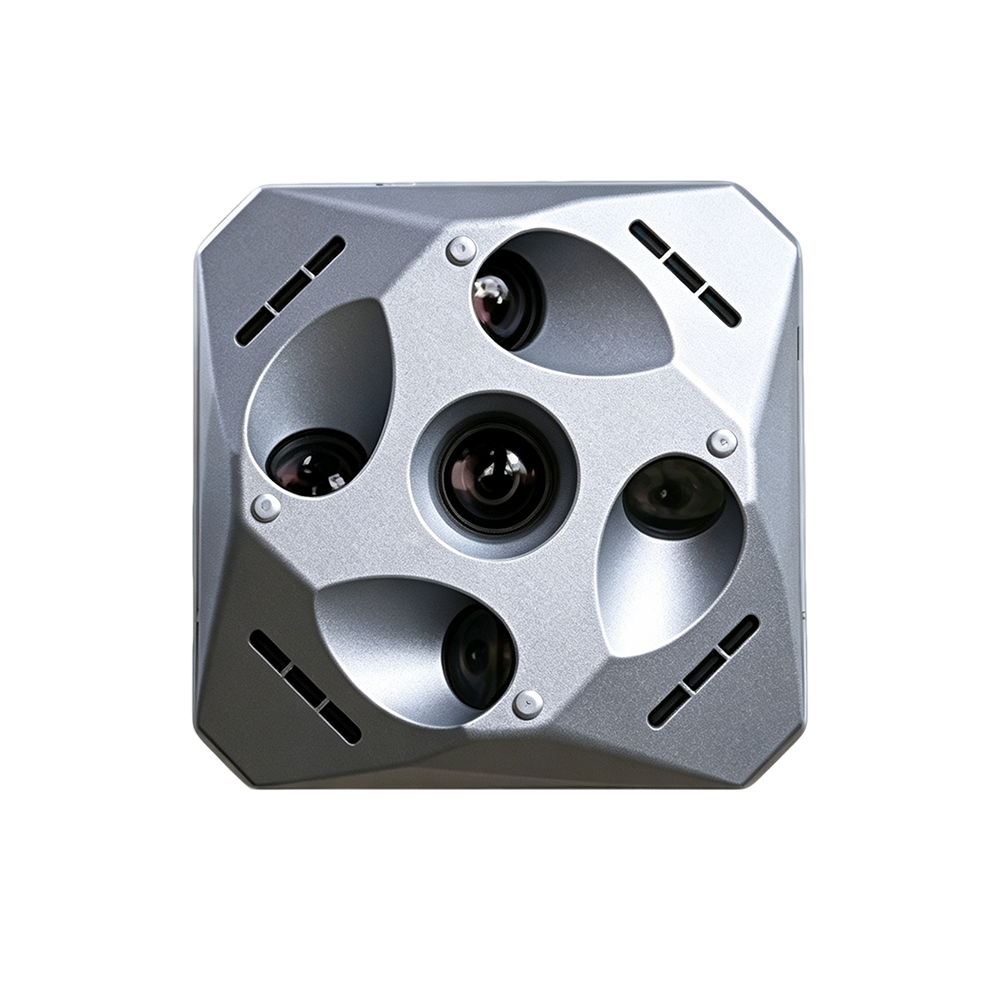

Five-Lens Oblique Camera

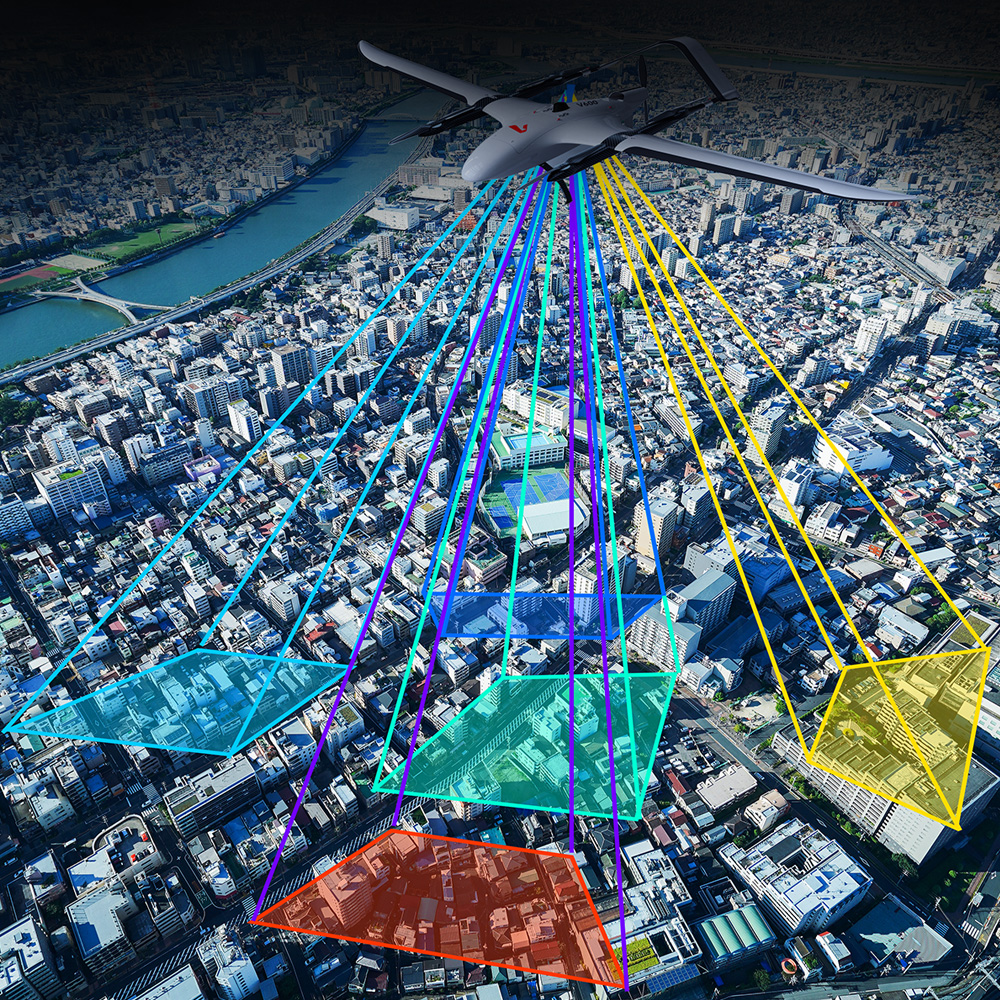

High-resolution five-lens oblique system for realistic 3D city modeling and digital twin applications.

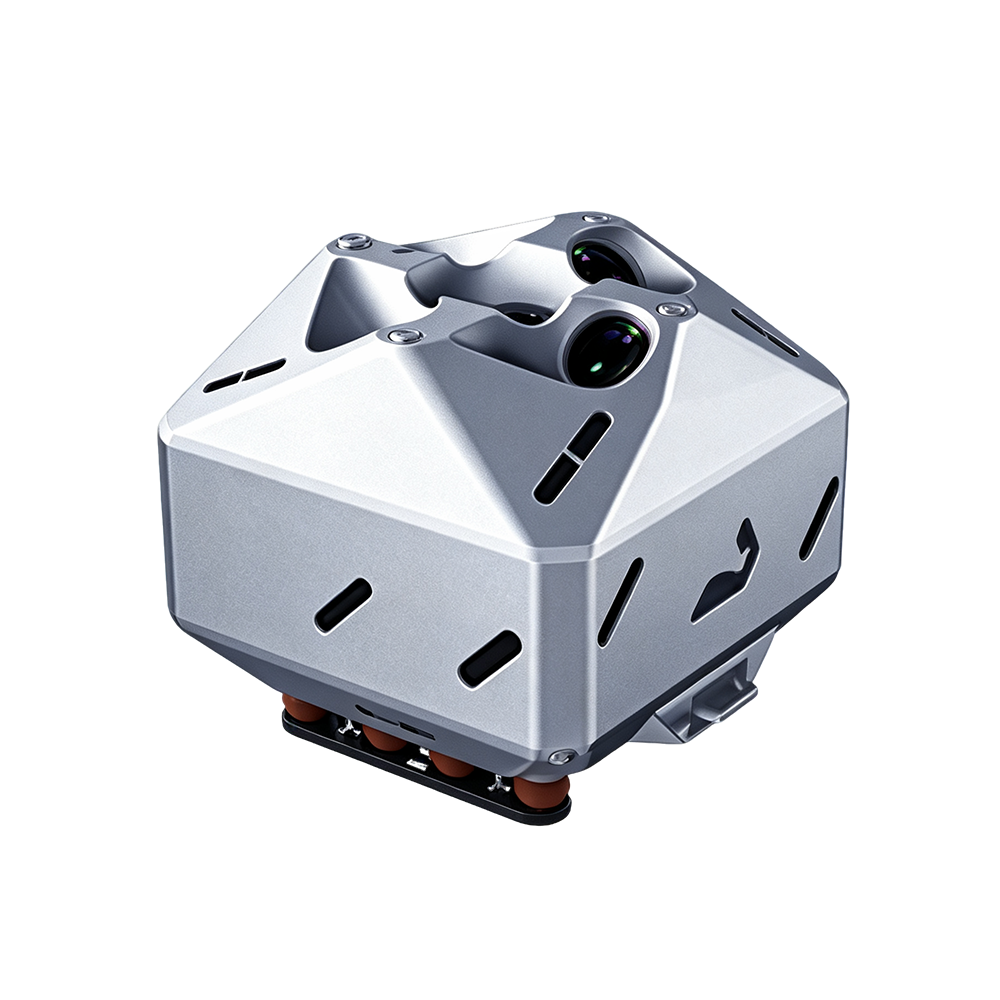

Advanced Oblique Camera
Next-generation oblique module with enhanced resolution and optimized 3D modeling quality.
Premium Oblique Camera
Flagship oblique photography module for ultra-high-precision 3D reality mesh modeling.
LiDAR & Multispectral Modules

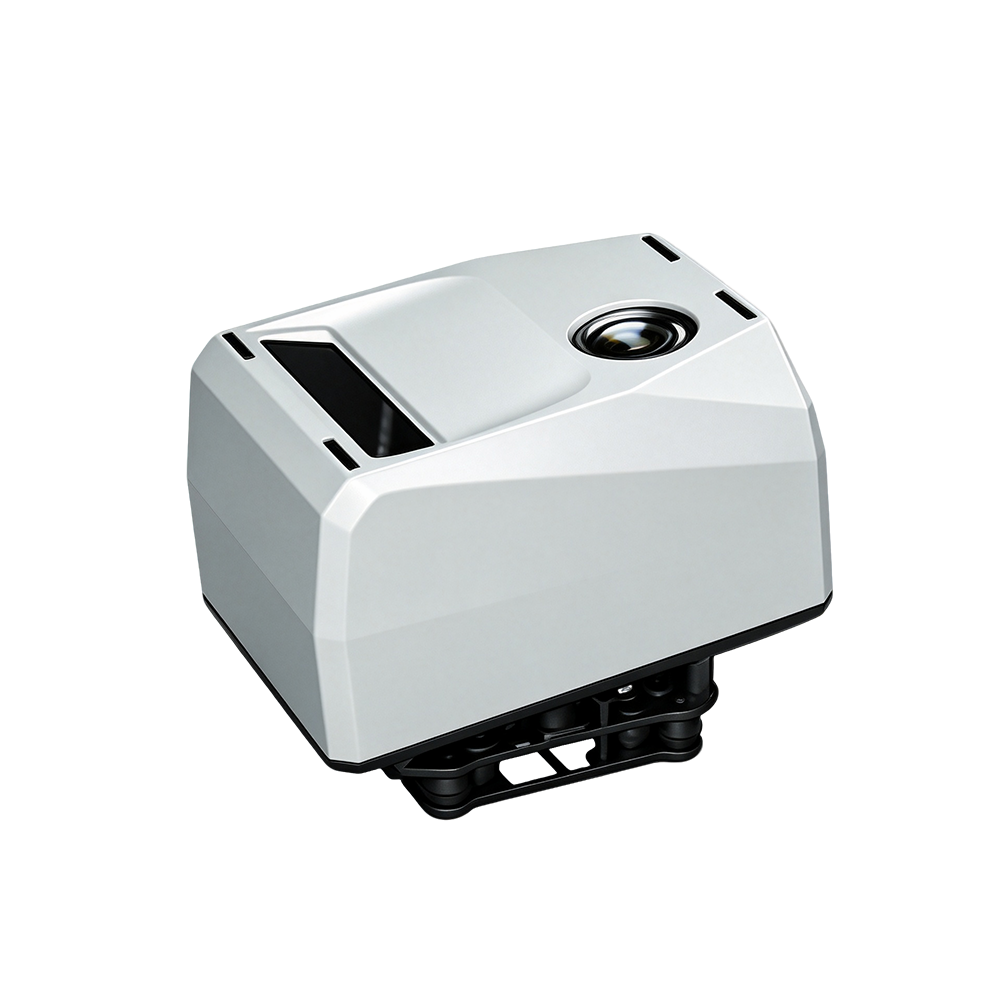

Airborne LiDAR System
Lightweight laser scanning module for forest penetration, terrain under vegetation and complex mountain point cloud collection.

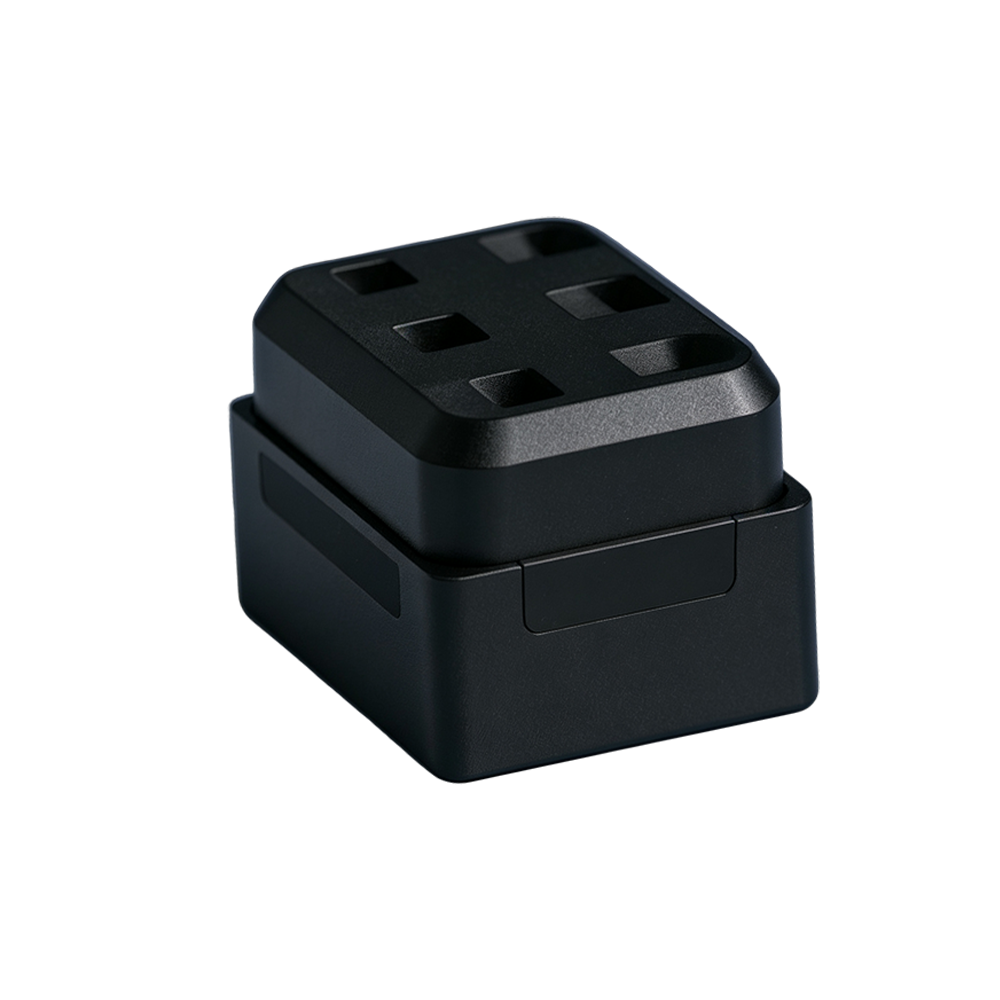

Multispectral Camera
Multi-band spectral sensor for ecological monitoring, water quality survey, mineral exploration and crop growth monitoring.
Third-Party Payload Customization Supported
V600's open payload interface and standardized mounting design support integration and modification of third-party sensors and specialized payloads, enabling customized solutions for unique project requirements.
-
PRODUCT DESCRIPTION
-

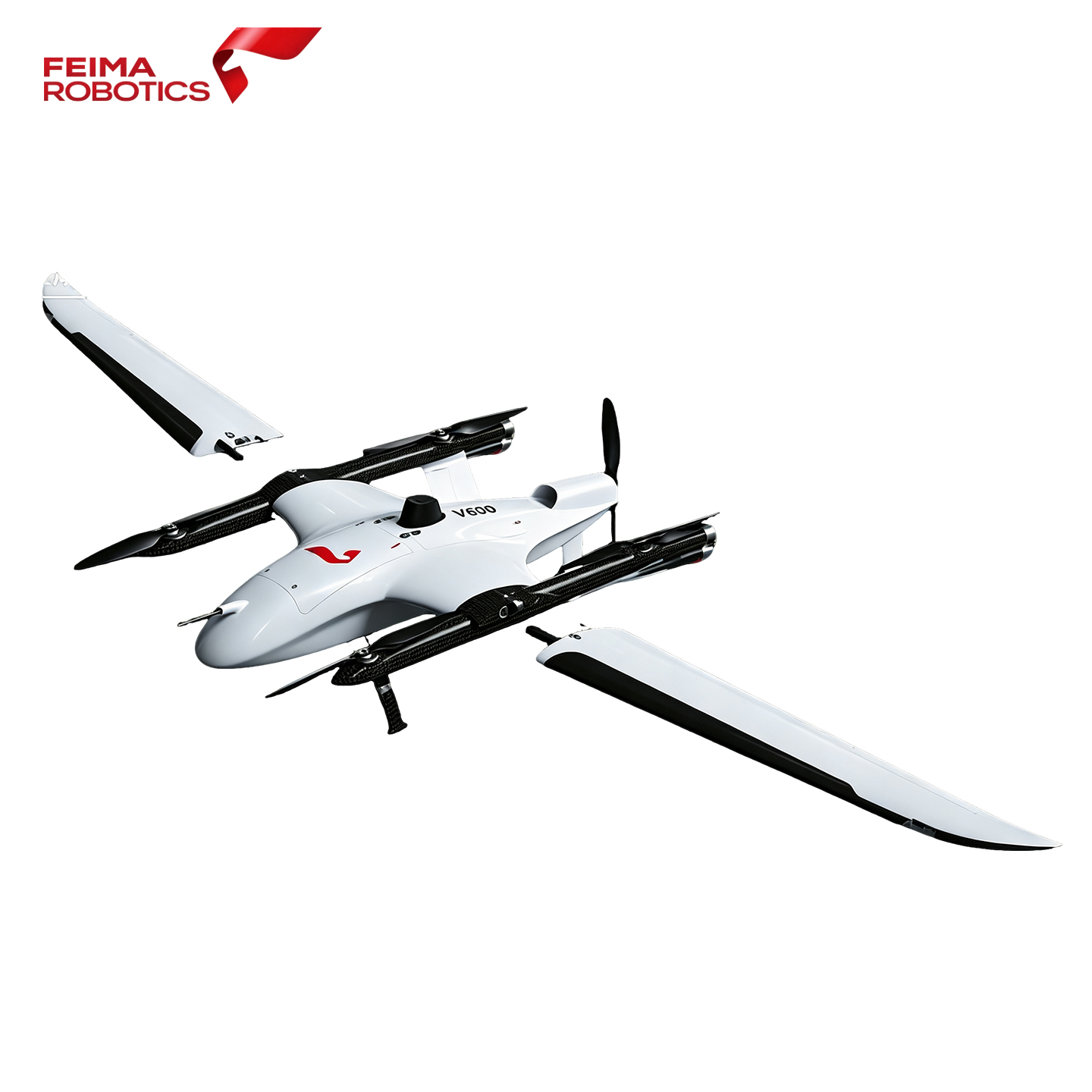

Tool‑free Quick Release
Compact fold‑and‑carry design, simple on‑site assembly. Single‑person operation, suitable for complex field working conditions.
-
RTK‑PPK GCP‑free Mapping
Equipped with high‑precision differential GNSS, it supports RTK, PPK and combined positioning. Built‑in POS‑assisted aerial triangulation enables 1:500 high‑precision GCP‑free mapping, cutting field‑work workload and boosting survey efficiency.
-
Adaptation to Complex Terrain
It supports precise terrain‑following flight, automatically adjusting altitude against terrain undulations. High‑resolution data capture is available for large‑elevation‑difference areas, efficiently adapting to complex terrains including mountains, hills and river valleys.
-
High Efficiency Operation
High‑density smart battery delivers 180‑min flight time and 226 km range for large‑area missions to lower field costs. UAV Manager Pro enables one‑click mapping and auto‑processing for higher post‑processing efficiency.
GCP-Free High-Precision Mapping
High-Precision Differential GNSS Board
Industrial-grade differential GNSS receiver with multi-constellation support (GPS, BeiDou, GLONASS), delivering centimeter-level positioning accuracy for survey-grade mapping.
PPK Post-Processing Kinematic
Post-flight differential correction using base station data, ideal for remote areas without network RTK coverage. High-precision POS data extracted post-flight for aerial triangulation.
RTK Real-Time Kinematic
Real-time centimeter-level positioning via network RTK or base station, with high-precision POS directly tagged to image EXIF during flight for streamlined post-processing workflow.
POS-Assisted Aerial Triangulation
Integrated high-precision position and orientation system assists aerial triangulation, enabling 1:500 large-scale mapping accuracy without ground control points — reducing field work by up to 70%.
Payload Module Options
| Category | Model | Payload Type | Primary Application |
|---|---|---|---|
| Aerial Survey | V-CAM510 | High-Res Mapping Camera | Precision orthophoto, DEM/DSM |
V-CAM30 |
Compact Mapping Camera | Efficient large-area orthophoto | |
| Oblique Photography | D-OP5000 | Five-Lens Oblique Camera | 3D city modeling, digital twin |
D-OP6000 |
Advanced Oblique Camera | Enhanced 3D modeling quality | |
D-OP6100 |
Premium Oblique Camera | Ultra-high-precision 3D mesh | |
| LiDAR & Spectral | D-LiDAR800 | Airborne LiDAR System | Forest penetration, terrain mapping |
V-MSPC600 |
Multispectral Camera | Ecology, agriculture, mineral survey | |
| Customization | Third-Party | Custom Sensor Integration | Specialized project requirements |
UAV Manager — Professional Survey Edition
One-stop intelligent GIS software covering flight planning, real-time monitoring, data preprocessing and spatial data production. Supports full workflow from mission design to deliverable generation.
3D Precision Route Planning
True-terrain based 3D flight route design, ensures consistent image resolution and flight safety.
Real-Time 3D Flight Monitoring
Live flight status, trajectory and payload data visualization with multi-dimensional quality check.
Automated Data Production
One-click output DOM, DEM, DSM, TDOM, 3D models, point cloud, contours and road cross-sections.
Cloud-Based Active Service
Project sync, flight data sharing, proactive maintenance, 4G/5G remote monitoring and video streaming.
Wide Range of Industry Applications
Flight Performance Specifications
| Item | Parameter |
|---|---|
| Aircraft Type | Pure-electric VTOL fixed-wing |
| Airframe Material | Carbon Fiber + Kevlar composite |
| Wingspan × Length × Height | 2728 × 1426 × 434 mm (unfolded) |
| Max Endurance | 180 min (3 h) @ 1kg payload |
| Max Operational Range | 226 km |
| Cruise Speed | 20 m/s |
| Max Flight Speed | 30 m/s |
| Max Payload Capacity | 1 kg |
| Max Takeoff Altitude | 4,000 m ASL (no propeller change needed) |
| Practical Service Ceiling | 7,000 m ASL |
| Wind Resistance | Level 7 |
| Operating Temperature | -20℃ ~ +50℃ |
| Takeoff & Landing | Fully automatic vertical takeoff and landing |
| Flight Control Mode | Autonomous operation (no remote controller needed) |
| Positioning System | High-precision differential GNSS, PPK/RTK/Fusion |
| Mapping Capability | 1:500 GCP-free large-scale mapping |
| Payload Interface | Tool-free quick-release, multi-payload compatible |
