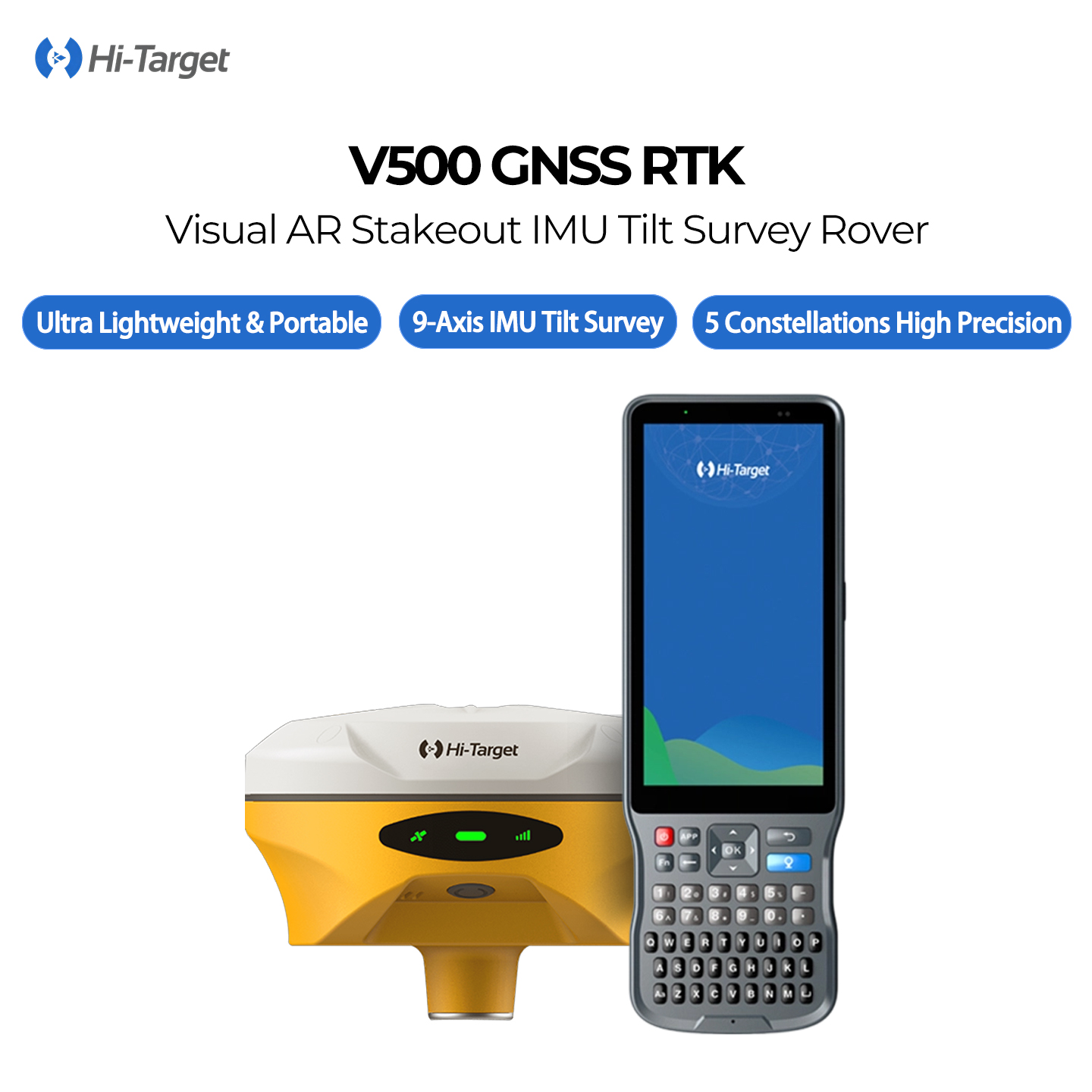

Hi Target V300 V500 Surveying Instrument Equipment Base and Rover Y Topografia Drones 350 400 Machine Gnss Rtk Gps Receiver
GNSS RTK System
• AR Real Scene Visual StakeoutAR
• 60° Auto IMU Tilt Measurement
•1408 Full Constellation Channels
ABOUT US
Chengdu Enbao Co., Ltd. has over 20 years of experience in the surveying instrument industry and is a professional domestic enterprise in this field. Equipped with advanced production, processing and testing facilities, we focus on the research, development and manufacture of the latest surveying instruments, including RTK receivers, total stations, electronic the odolites, levels and supporting accessories. We keep upgrading and optimizing our products based on mature traditional technologies to achieve superior performance and reliable quality. We sincerely offer premium products and thoughtful services to clients woridwide.
Company collaboration
PRODUCT DESCRIPTION
-
Better visual Stakeout Experience
- Professional-grade starlight night vision HD camera with wide angle.
-

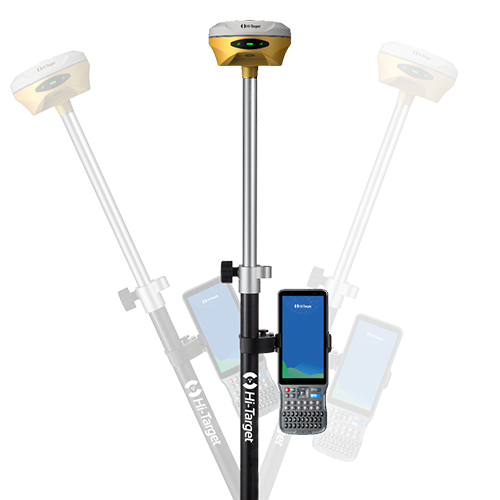

Built-in High-Precision Tilt Survey
- Measure as reaching the point, efficient and convenient.
-

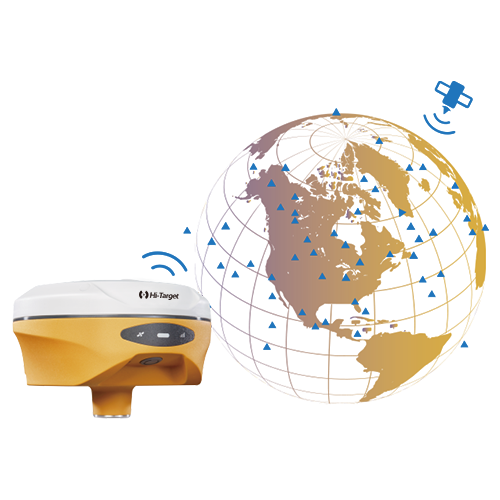

Full Constellation and Full Frequency
- Advanced GNSS SoC chip features 1408 channels.
-
Controlador de Campo Profesional
- EI controlador portatil iHand5s es un controlador de campo profesional con una gran vision.
Hi-Survey
Survey Data Collection Software
-
AR stakeout to guide directions with the intelligent voice and compass.
-
Optimized tilt survey and able to complete the initialization by shaking the receiver for 2-5s and maintain a high-precision measurement status for a long time.
-
Users can view the number of the tracking satellites, PDOP, Elevation Mask, the current satellite constellations and other information in the sky plot interface.
-
Advanced CAD data management, supporting importing files of DXF, DWG format, and achieving data stakeout by the object snap functions Of INT, TAN, PER etc..

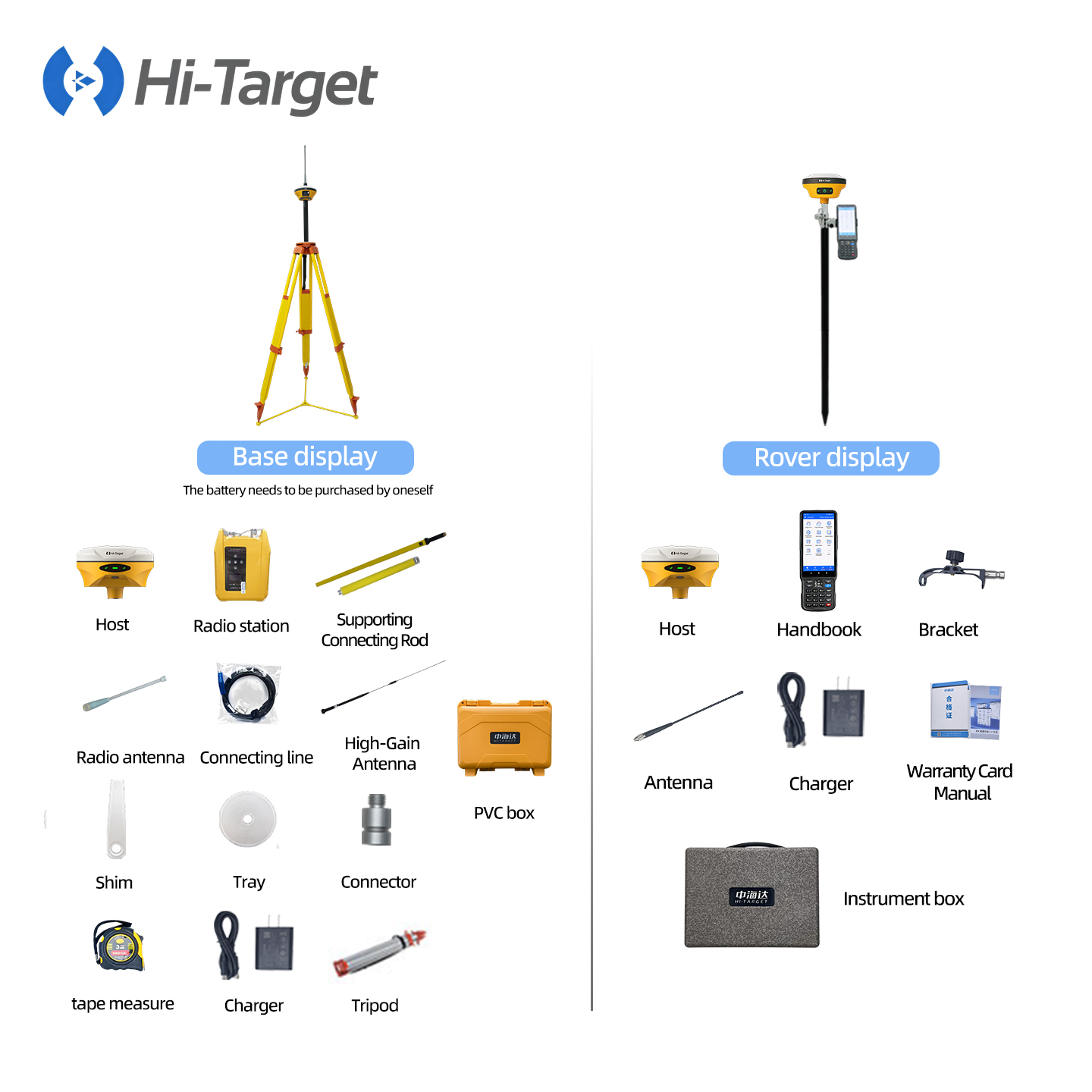

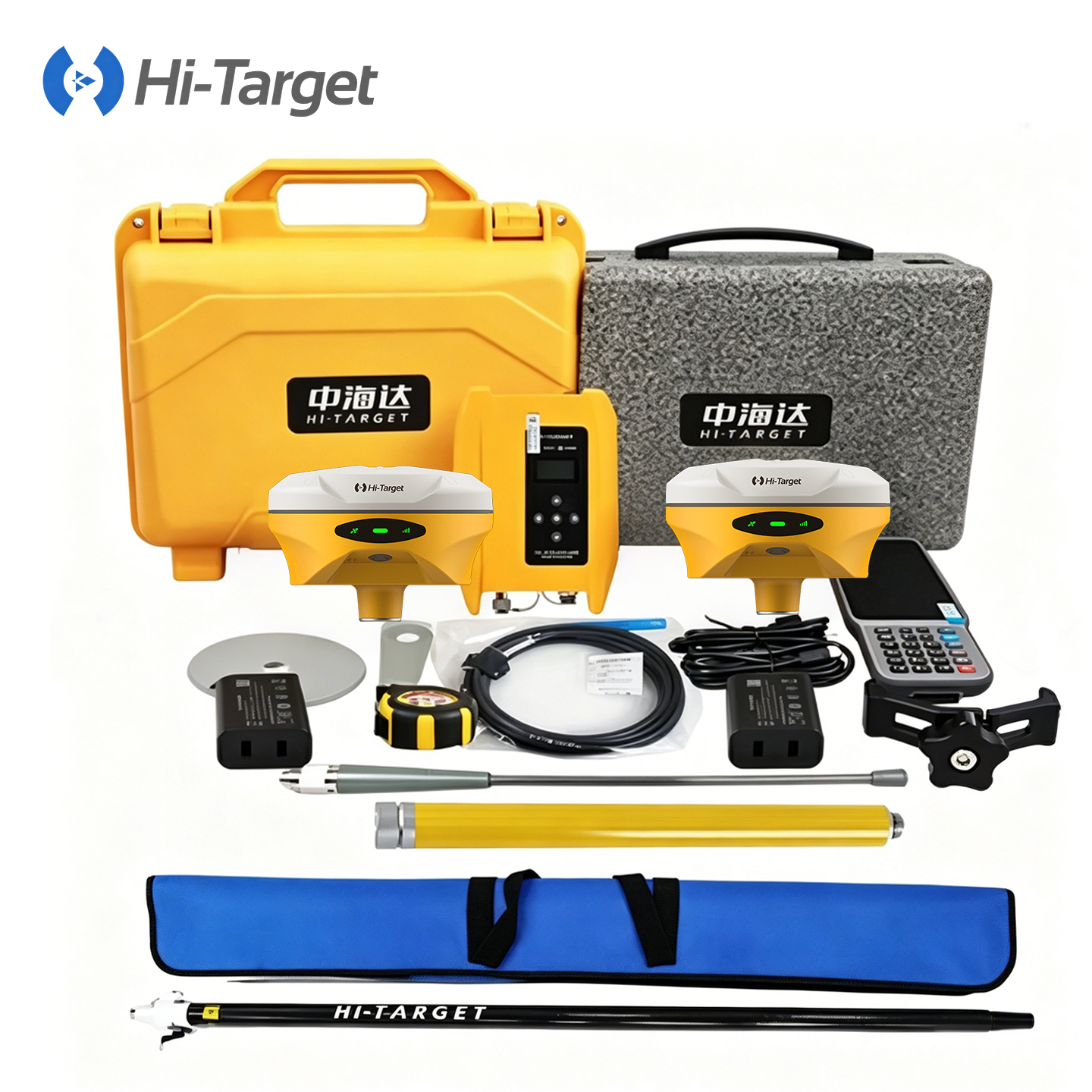

Full Set of Accessories

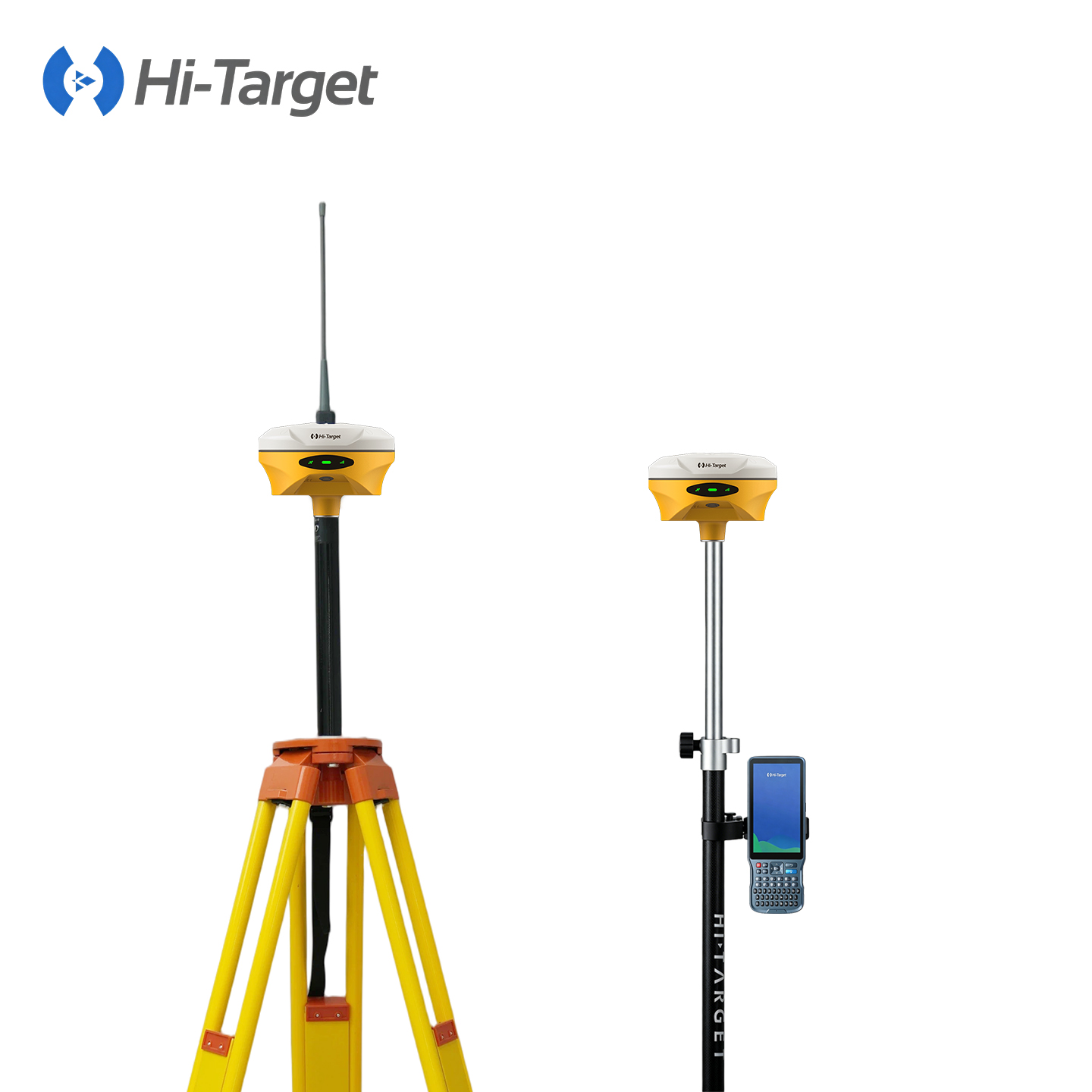

Base display
The battery needs to be purchased by oneself
-
Host
-
Radio station
-
Supporting Connecting Rod
-
Radio antenna
-
Connecting line
-
High-Gain Antenna
-
Shim
-
Connector
-
tape measure
-
Charger
-
Tripod
-
PVC box

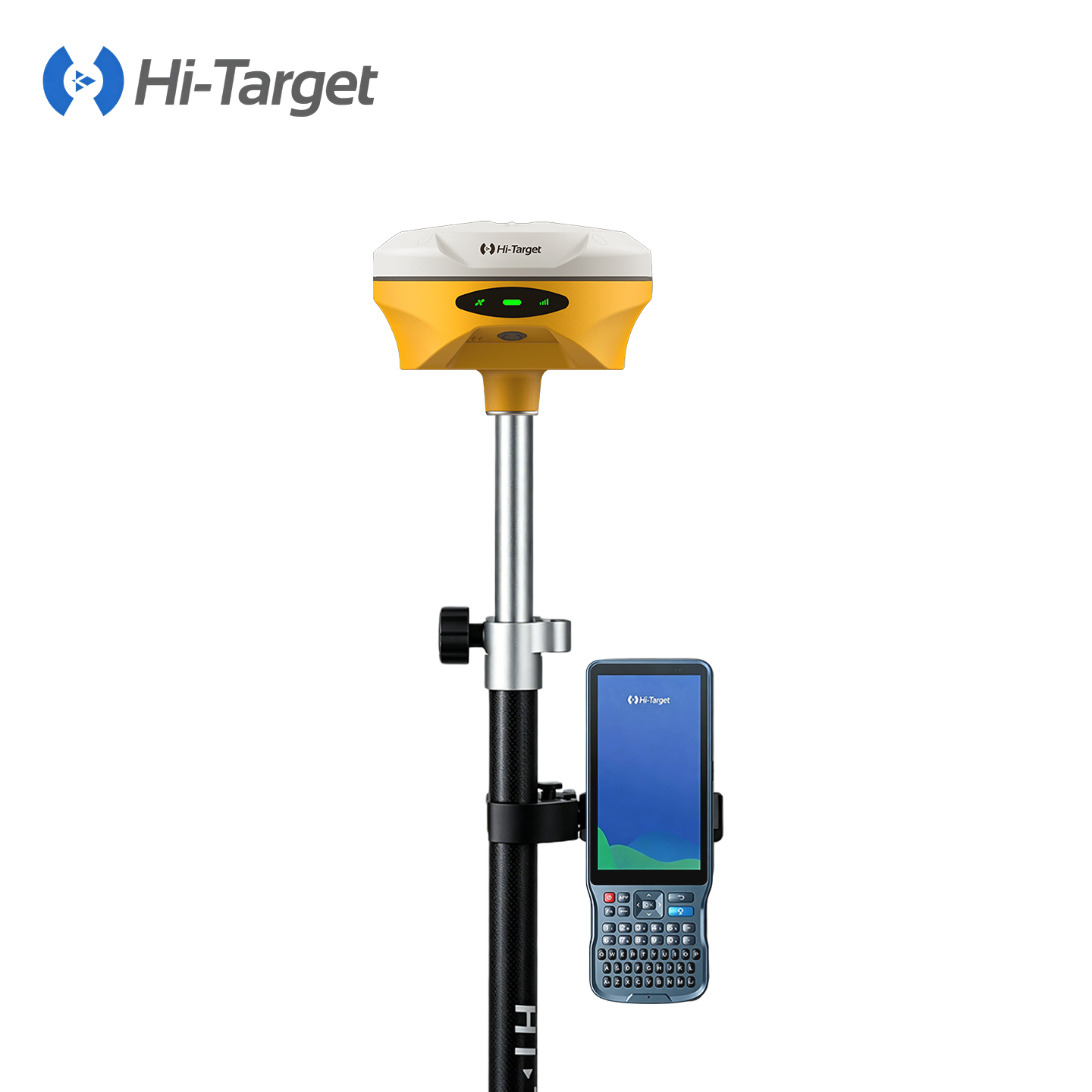

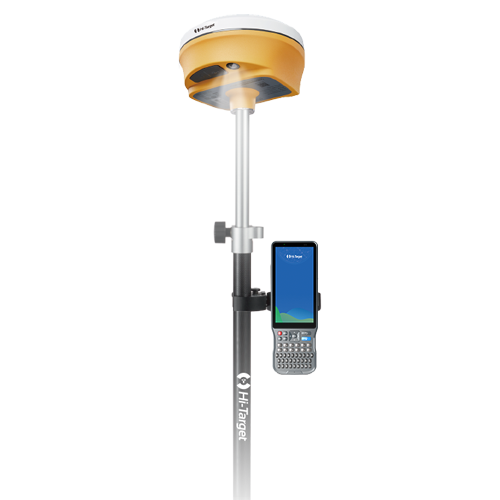

Rover display
-
Host
-
Handbook
-
Bracket
-
Antenna
-
Charger
-
Warranty Card Manual
-
Instrument box
Hi‑Target V500 GNSS Receiver Specifications
Visual IMU‑RTK Survey Receiver
GNSS SIGNALS
| Channels | 1760 |
| GPS | L1C/A, L2C, L2P, L5 |
| BDS | B1I, B1C, B2A, B2B, B2I, B3I |
| GLONASS | L1CA, L2CA, L2P, L3 |
| Galileo | E1, E5a, E5b, E5AltBoc |
| QZSS | L1C/A, L1S, L2C, L5 |
| NavIC | L5 |
| SBAS | L1, L2, L5 |
| PPP | B2b‑PPP |
POSITIONING PERFORMANCE
| High‑precision Static | |
| Horizontal | 2.5 mm + 0.1 ppm RMS |
| Vertical | 3.5 mm + 0.4 ppm RMS |
| Static & Fast Static | |
| Horizontal | 2.5 mm + 0.5 ppm RMS |
| Vertical | 5 mm + 0.5 ppm RMS |
| Post‑processing Kinematic (PPK / Stop & Go) | |
| Horizontal | 8 mm + 1 ppm RMS |
| Vertical | 15 mm + 1 ppm RMS |
| Initialization time | Typically 10 min for base and 5 min for rover |
| Initialization reliability | Typically＞99.9% |
| B2b‑PPP | |
| Horizontal | 10 cm |
| Vertical | 20 cm |
| Position update rate | 1 Hz, 5 Hz, 10 Hz |
| Code Differential GNSS | |
| Horizontal | ±0.25 m +1 ppm RMS |
| Vertical | ±0.5 m +1 ppm RMS |
| SBAS | H:0.5 m, V:0.85 m |
| Real‑Time Kinematic (RTK) | |
| Horizontal | 8 mm +1 ppm RMS |
| Vertical | 15 mm +1 ppm RMS |
| Initialization time | Typically＜10 s |
| Initialization reliability | Typically＞99.9% |
| Time To First Fix | |
| Cold start | ＜45 s |
| Hot start | ＜30 s |
| Signal re‑acquisition | ＜2 s |
| Hi‑Fix® | |
| Horizontal | RTK+10 mm/minute RMS |
| Vertical | RTK+20 mm/minute RMS |
| Tilt‑Survey Performance | Additional horizontal pole‑tilt uncertainty typically less than 8 mm+0.7 mm/° inclination (0°‑60°) |
| AR Image Stakeout Accuracy | 1 cm |
PHYSICAL
| Dimensions (W × H) | 130 mm × 68 mm |
| Weight | ≤0.75 kg (1.65 lb) |
| Operating Temperature | -40 ℃ ~ +75 ℃ (-40 °F ~ +167 °F) |
| Storage Temperature | -55 ℃ ~ +85 ℃ (-67 °F ~ +185 °F) |
| Humidity | 100% non‑condensing |
| IP Rating | IP68, dust‑proof, temporary immersion up to 1.0 m depth |
| Shock & Vibration | MIL‑STD‑810G, 514.6 |
| Free Fall | Survives 2 m natural drop onto concrete |
ELECTRICAL
| Internal Battery | 7.4V / 6900 mAh rechargeable Li‑ion RTK Rover(UHF / Cellular): up to 21 hours |
| External Power | Standard smartphone chargers or power banks, support 5V 2.8A USB‑C external charging |
| I/O Interface | 1 × USB‑C port, 1 × SMA antenna port |
COMMUNICATION
| Wi‑Fi | 2.4 GHz, compatible with 802.11 b/g/n |
| Bluetooth | BT5.2, 2.4 GHz |
| Internal UHF Radio | |
| Frequency | 410‑470 MHz |
| Transmit Power | 0.5W /1W /2W adjustable |
| Supported Protocols | HI‑TARGET, TRIMTALK450S, TRIMMARK III, SATEL‑3AS, TRANSEOT, etc. |
| Working Range | Typically 3‑5 km, optimum 8‑15 km* |
| Channels | 116 (16 scannable) |
CAMERA
| Function | High‑definition wide‑angle vision camera, supports AR stakeout & live‑view visualization |
CONTROL PANEL
| Physical Button | 1 |
| LED Indicators | Satellite, Serial, Power |
SYSTEM CONFIGURATION
| Storage | 16 GB ROM internal storage |
| ASCII Output Format | NMEA‑0183 |
| Output Rate | 1 Hz‑20 Hz |
| Static Data Format | GNS, RINEX |
| RTK Format | RTCM3.X |
| Network Mode | VRS, FKP, MAC; supports NTRIP protocol |
*Note: Specifications subject to change without prior notice. Actual performance depends on satellite availability, multipath and field environment. Hi‑Fix will stop working after 5‑min differential signal loss; PPP & SBAS may require firmware upgrade and are not available in all regions.
