Hi-TargetV6 handheld scanner shock release: redefine portable 3D measurement, open a new era of efficient and accurate

Detailed technical parameters and functional characteristics of V6 handheld scanner for reference:
1. core performance parameters

Scanning accuracy
Point accuracy: ± 0.5mm (within 10m)
Ranging accuracy: ± 1mm (single point ranging)
Repeatability: ± 0.3mm (same scene multiple scans)
Scanning speed and range
Maximum scan rate: 2 million points/second
Effective distance measurement: 0.3 m-150m (reflectivity 90%)
Field of view (FOV): horizontal 360 ° × vertical 300 ° (scanning area can be customized)
laser system
Laser wavelength: 905nm (a class of safety laser, according to IEC 60825-1 standard)
Laser class: Class 1 (eye safe)
Pulse frequency: up to 1MHz

2. hardware configuration

Sensor combination
Main Lidar: 16-line/32-line adjustable (default 32-line)
Auxiliary camera: 5 million pixel panoramic camera (supports HDR imaging)
IMU module: high-precision inertial measurement unit (angular accuracy 0.01 °, sampling rate 500Hz)
GNSS positioning: support Beidou/GPS/GLONASS three-frequency 5 mode, positioning accuracy ± 2cm

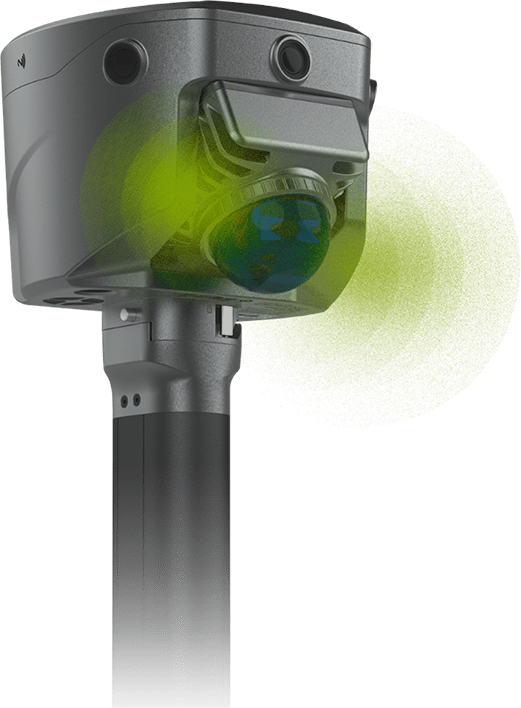

Physical Specifications
Weight: 1.2kg (with battery)
Size: 280mm × 150mm × 120mm
Material: aviation grade magnesium aluminum alloy frame non-slip silicone handle
Protection grade: IP65 (dustproof and waterproof)
Working temperature:-20 ℃-50 ℃
Display and Interaction
Screen: 7-inch IPS touch screen (resolution 1920 × 1200, brightness 800nit)
Operation mode: touch + physical button + voice control
Battery: Removable 5200mAh lithium battery, 6-8 hours of battery life (continuous scanning)

3. Software and Algorithms

Intelligent Processing Engine
AI Scene Recognition: Automatically match buildings, pipes, terrain, etc. 10 + preset modes
Real-time filtering: dynamic removal of flying spots and noise, data purity ≥ 98%
Automatic splicing: support SLAM algorithm for seamless fusion of multi-station data
Data Output Format
Point cloud formats: LAS, PLY, XYZ, TXT
Image formats: JPG, PNG, RAW
Compatible Software: AutoCAD, Revit, CloudCompare, Geomagic, Zhonghaida Self-developed Cloud Platform
Operating System
Built-in system: customized Android 12 (support OTA upgrade)
Interface: USB 3.0, Wi-Fi 6, Bluetooth 5.2, Gigabit Ethernet

4. functional characteristics

multi-scene adaptation
Close-range scanning: heritage details, industrial parts (0.3 m-5m)
Mid-range mapping: building facade, interior space (5m-50m)

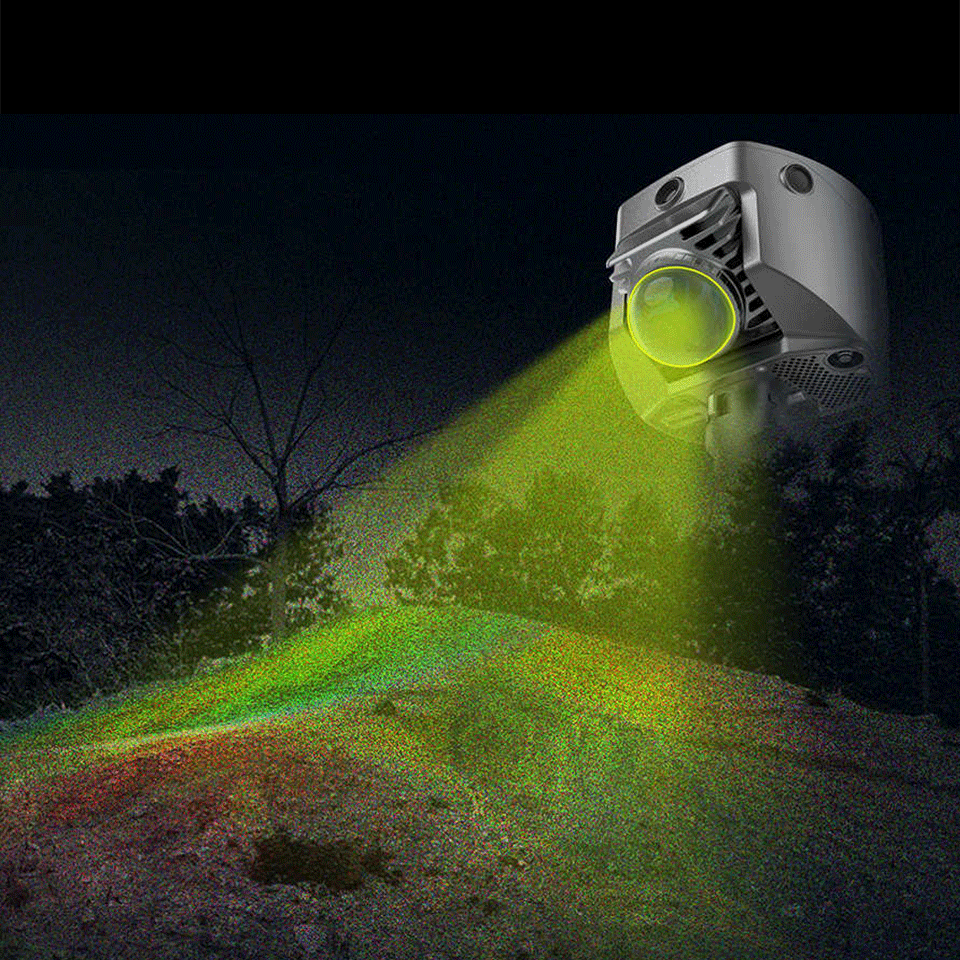

Long-distance terrain: mines, bridges (50m-150m)
Features
One-click scanning: preset parameters are automatically executed, novice 5 minutes to get started

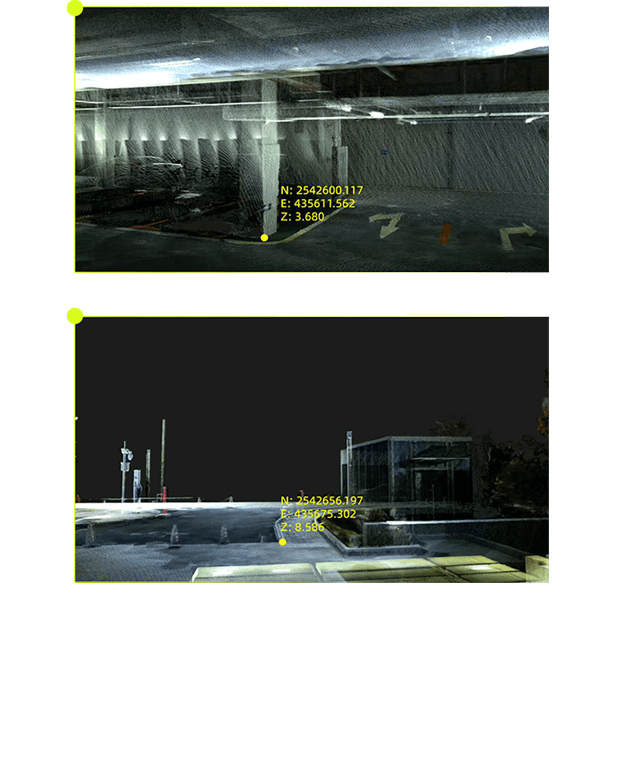

Real-time preview: synchronous display of point cloud and panoramic image, support zoom/rotation
Offline operation: no GNSS signal environment can still complete scanning and splicing
Multi-machine collaboration: supports synchronous scanning of 5 devices, and data is automatically synchronized to the cloud

5. Application Areas

Architecture and engineering: BIM modeling, construction progress monitoring, deformation analysis
Cultural heritage protection: digital archiving, virtual restoration, 3D printing
Industrial inspection: reverse engineering, quality inspection, equipment maintenance
Geographic information: topographic mapping, urban 3D modeling, disaster emergency response
Public safety: crime scene reconstruction, traffic accident analysis

6. certification and after-sales

International Certification: CE, FCC, RoHS, TÜV
Warranty policy: 2-year warranty for the whole machine, 5-year warranty for lidar
Service network: Global 100 + service center, providing 48-hour response support

Guangzhou, China-China's leading provider of spatial information and surveying and mapping equipment solutions, Zhonghaida (stock code: [specific code]), today officially launched a new generation of handheld 3D laser scanner V6. With "lightweight design, high-precision scanning, and intelligent operation" as the core breakthrough, the product aims to provide more efficient and flexible three-dimensional data acquisition solutions for construction, surveying and mapping, cultural heritage protection, industrial inspection and other fields, and help the industry Digital transformation has entered a new stage.
Breakthrough innovation: three core advantages to reshape the industry benchmark

Extremely portable, breaking the scene limit

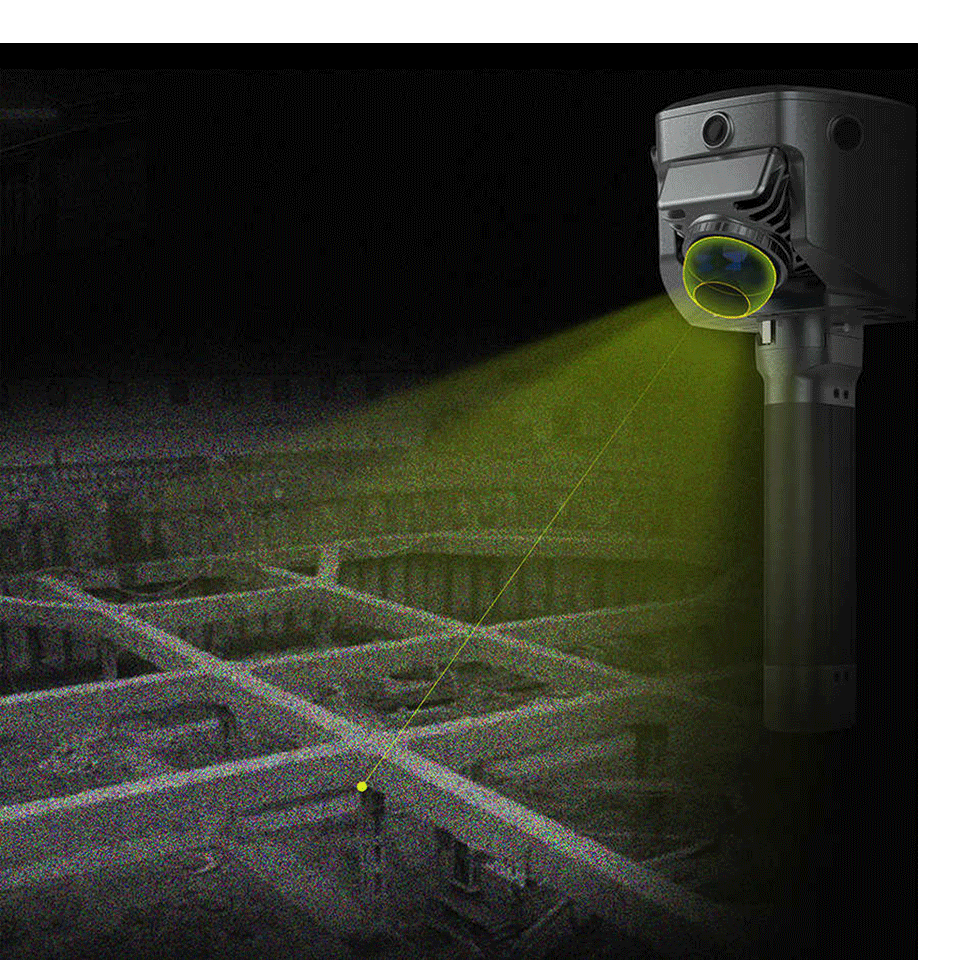

V6 is made of aviation-grade magnesium-aluminum alloy. The weight of the whole machine is only 1.2kg, which is 40% less than traditional equipment and can be easily operated with one hand. Its compact design supports IP65 protection and adapts to extreme environments ranging from -20 ℃ to 50 ℃. Whether it is high-altitude operation, underground pipe gallery or field archaeology, it can operate stably and truly realize "sweeping whenever and wherever you want".

Millisecond scanning, accuracy comparable to fixed equipment
Equipped with the "Falcon" lidar system independently developed by Zhonghaida, V6 can capture 2 million-point data per second, the scanning speed is 3 times higher than that of the previous generation, and the measurement accuracy of sub-millimeter (± 0.5mm) is realized. With the intelligent filtering algorithm, dynamic interference can be filtered efficiently to ensure data purity in complex scenarios.

A key intelligent, reduce the professional threshold
Built-in AI scene recognition engine, V6 can automatically match more than 10 scanning modes such as building facades, pipelines, terrain, etc. with 7-inch high-definition touch screen and voice interaction function, novice users can get started in 5 minutes. Real-time data preview and automatic splicing technology improve field efficiency by 60% and truly realize "what you see is what you get".

Full coverage of application scenarios: accurate capture from micro to macro

Building BIM Modeling: Quickly generate high-precision point clouds of building facades and indoor structures, support seamless connection with Revit, AutoCAD and other software, and shorten the modeling cycle by 70%.
Cultural heritage protection: non-contact scanning technology completely records the details of cultural relics, combined with the China Haida cloud platform to achieve digital archiving and virtual restoration.
Industrial inspection: millimeter-level deformation analysis of complex components such as aircraft blades and ship surfaces, replacing traditional caliper measurement, with 10 times higher accuracy.
Emergency mapping: earthquake, flood and other disaster sites quickly obtain topographic data to provide real-time three-dimensional map support for rescue decisions.

Industry Evaluation: Open a new era of portable 3D scanning.

"The release of the V6 marks the leap from 'assistive tools' to 'core productivity' for handheld scanners." Li Ming, an expert at the Chinese Academy of Surveying and Mapping, said, "Its balance of lightweight and high precision solves the pain points of traditional equipment in terms of efficiency and cost, and is especially suitable for small and medium-sized teams and flexible operation scenarios."
At present, V6 has passed international certifications such as German TÜV and US FCC.
